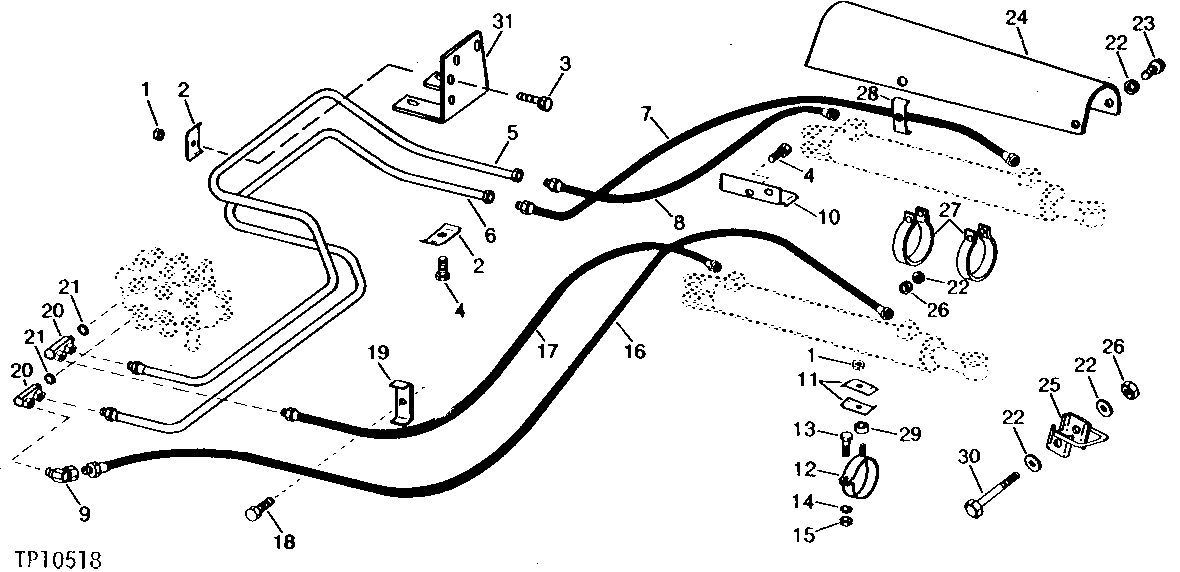

ANGLING CYLINDER HYDRAULICS (6405 BULLDOZER) [02D07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T11234	2	Lock Nut	-
2	U40398	2	Clamp	(SUB FOR T31235)
3	19H2633	1	Cap Screw	3/8" X 1-1/2"
4	19H3483	4	Cap Screw	3/8" X 1-1/8"
5	AT39908	1	TUBE	-
6	AT39909	1	TUBE	-
7	AT39912	1	HYDRAULIC HOSE - FABRICATE	3/8" X 2 540 MM (100") X 3/8"
8	AT39913	1	HYDRAULIC HOSE - FABRICATE	3/8" X 2 134 MM (84") X 3/8"
9	JD174	1	Elbow Fitting	-
10	T45310	1	SHIELD	-
10	T45311	1	SHIELD	-
11	U10516	2	Hose Clamp	(WITHOUT HOSE SHIELDS)
12	AU13963	1	CLAMP	(WITHOUT HOSE SHIELDS)
13	19H3065	1	Cap Screw	3/8" X 2"
14	12H304	1	Lock Washer	3/8"
15	14H812	1	NUT	3/8"
16	AT39907	1	HYDRAULIC HOSE - FABRICATE	3/8" X 3 099 MM (122") X 3/8"
17	AT39906	1	HYDRAULIC HOSE - FABRICATE	3/8" X 2 718 MM (107") X 3/8"
18	19H2735	2	Cap Screw	1/2" X 2"
19	AT44158	2	CLAMP	-
20	AT36525	2	ADAPTER	90°
21	R26906	2	O-Ring	-
22	24H1305	8	Washer	13/32" X 13/16" X 0.065"
23	19H3445	3	Cap Screw	3/8" X 3-3/4"
24	T106947	2	SHIELD	(SUB FOR T37238)
25	AT37220	1	HOSE CLAMP	-
26	H129201	4	Lock Nut	(SUB FOR T32552)
27	T37239	4	CLAMP	-
28	T41127	1	CHANNEL	-
29	28H2481	1	Spacer	3/8" X 1/2"
30	19H1925	1	Cap Screw	3/8" X 4-1/4"
31	T41211	1	SUPPORT	-

ANGLING CYLINDER HYDRAULICS (6405 BULLDOZER) [02D07]

Нет текстового описания
