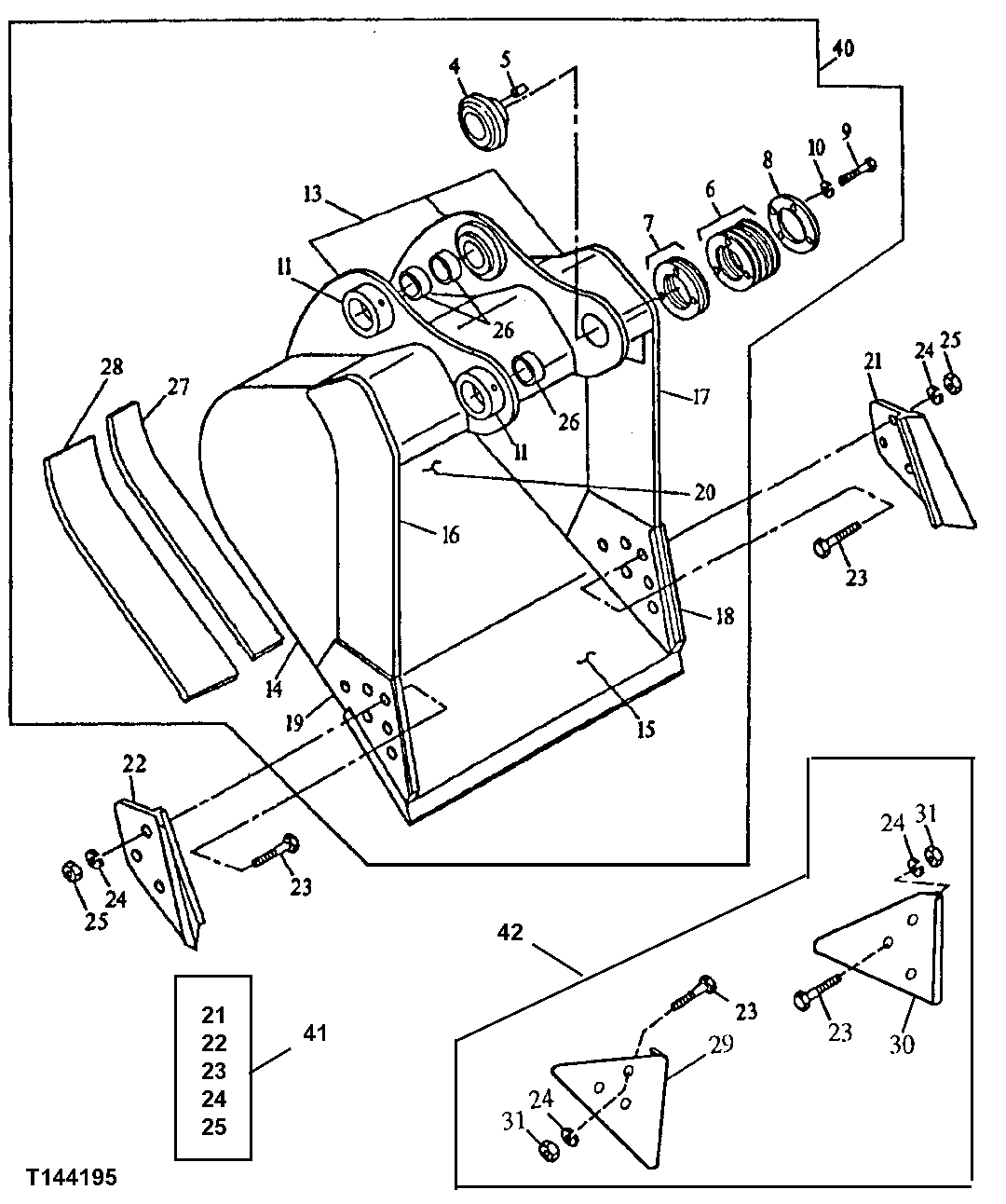

TRUCK LOADING BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	3038818	1	Boss	(SUB FOR AT131625)
5	4179110	2	Pin	(SUB FOR TH103520)
6	AT131816	7	Washer	(1 MM)
7	4207194	2	Shim	(SUB FOR <service-part qty="1">AT131815</service-part>)(.5 MM)
8	AT131814	1	Plate	-
9	19H2706	4	Cap Screw	5/8" X 2"
10	12H294	4	Lock Washer	5/8"
11	AT128461	2	Bushing	-
13	C609726	1	Pivot	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Bucket Ear Blank Assembly
14	304171	2	Plate	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right and Left Side
15	AT131097	1	Dura-Max Cutting Edge	(CTL)
16	300327	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Right Side Cutter
17	300328	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Left Side Cutter
18	309971	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Left Side Cutter Insert
19	309970	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right Side Cutter Insert
20	608619	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper
21	-	1	Part 17	(SUB AT131086)
22	-	1	Part 18	(SUB AT131086)
23	09H1772	6	Bolt	7/8" X 3-1/2"
24	12H245	6	Lock Washer	7/8"
25	14H1077	6	Nut	7/8"
26	4205109	3	Bushing	(SUB FOR AT131768)
27	309972	2	Bar	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Inner Wear
28	309972	2	Bar	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Outer Wear
29	-	1	Part 25	Wear, (SUB AT167878)
30	-	1	Part 26	Wear, (SUB AT167878)
31	14H1044	6	Nut	7/8"
38	610934	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Lower
39	T145372	1	Label	Not Illustrated
40	-	1	Part 30	72 in., 4.18 cu. yd., (AT163687 NLA), Available Tooth Assemblies On Separate Page, (INCLUDES T145372 ) (SUB AT332744)
41	-	1	Part 31	(AT131086 NLA), Side Cutter
42	-	1	Part 32	(AT167878 NLA), Edge Protector

TRUCK LOADING BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES)
