Открытый узел

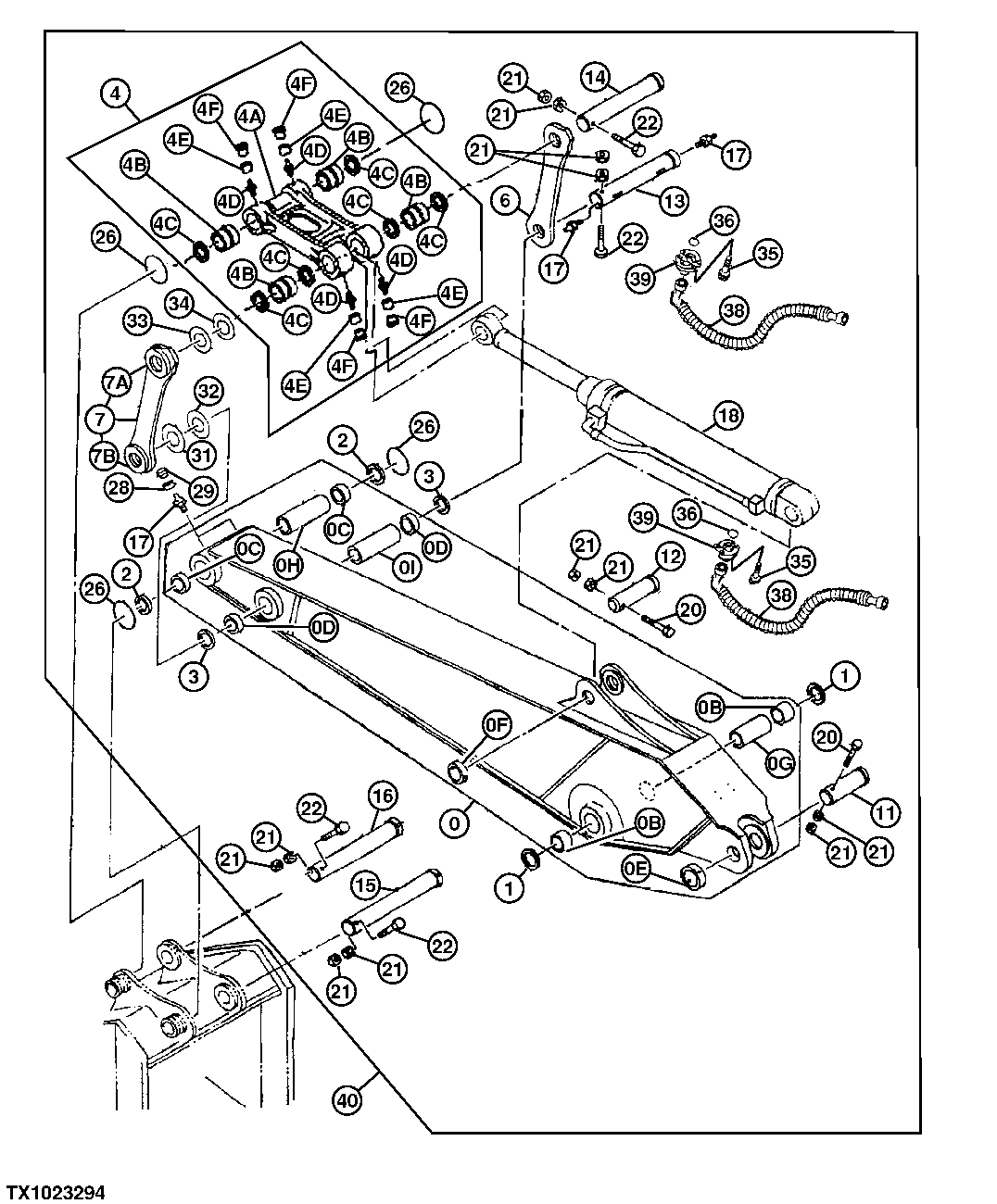

STANDARD ARM ASSEMBLY (3.4M/11 FT 2 IN)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	7024089	1	Arm	Convenience Assembly, (SUB FOR AT180631)
1	4251752	2	Seal	(SUB FOR AT202304)
2	4251212	2	Seal	(SUB FOR AT202303)
3	TH102411	2	Seal	-
4	9206398	1	Link	-
6	8050176J	1	Link	(SUB FOR AT201887 OR 8050176)
7	8050178J	1	Link	(SUB FOR AT201888 OR 8050178)
11	AT128428	1	Pin Fastener	-
12	AT131627	1	Pin Fastener	105 X 324 mm (4.134" X 12.756")
13	3055219	1	Pin Fastener	(SUB FOR AT201687)
14	DH300061	1	Pin Fastener	(SUB FOR AT201694)
15	3104742R	1	Pin	(SUB FOR AT217077, 3079232 OR 3104742)
16	AT201693	1	Pin Fastener	-
17	TH100074	4	Lubrication Fitting	-
18	-	1	Part 32	REMAN, (ORDER AT183700)
20	19M8100	2	Cap Screw	M20 X 180
21	14M7277	12	Nut	M20
22	4276312R	4	Bolt	(SUB FOR AT202121)
26	4487682	4	O-Ring	(SUB FOR AT201748, 4288572)
28	4130686	2	Bushing	(SUB FOR AT217082)
29	4105912	2	Cap	(SUB FOR AT217081)
31	4134370R	1	Shim	(SUB FOR AT202083 OR 4134370)
32	4134371	1	Washer	101 X 180 X 1.600 mm (3.976" X 7.087" X 1/16"), (SUB FOR AT131702)
33	4134372	1	Washer	111 X 190 X 1 mm (4.370" X 7.480" X 0.039"), (SUB FOR AT202084)
34	4134373R	1	Shim	-
35	19M8395	8	Screw	M12 X 40
36	T78313	2	O-Ring	32.918 X 3.531 mm (1.296" X 0.139")
38	AT172097	2	Hydraulic Hose	-
39	4085560	4	Flange Fitting	(SUB FOR TH101960)
40	AT194258	1	Arm	Includes Standard Arm, Bucket Cylinder, Hoses and Linkage, (WHOLE GOODS)
0B	3055205	2	Bushing	(SUB FOR AT201685)
0C	3079233	2	Bushing	SUB FOR AT217078
0D	TH103214	2	Bushing	100 X 115 X 60 mm (3-15/16" X 4.528" X 2.362")
0E	4662435	1	Stop	(SUB FOR AT131769 OR 4205110)
0F	-	1	Part 6	( TH103198 NLA)
0G	4334122	1	Spacer	(SUB FOR AT202332)
0H	4334123	1	Spacer	(SUB FOR AT202333)
0I	4334124	1	Spacer	(SUB FOR AT202334)
0J	FF551575	1	Boss	Replacement Arm End Parts Not Illustrated, SUB FOR 7048348
4A	-	1	Part 15	( 1029877 NLA)
4B	3060476	4	Bushing	SUB FOR AT201695
4C	AT131682	6	Seal	-
4D	TH100074	4	Lubrication Fitting	-
4E	4130686	4	Bushing	-
4F	4105912	4	Cap	-
7A	4271095	1	Stop	(SUB FOR AT203620)
7B	4271654	1	Stop	(SUB FOR AT201735)

STANDARD ARM ASSEMBLY (3.4M/11 FT 2 IN)
