Открытый узел

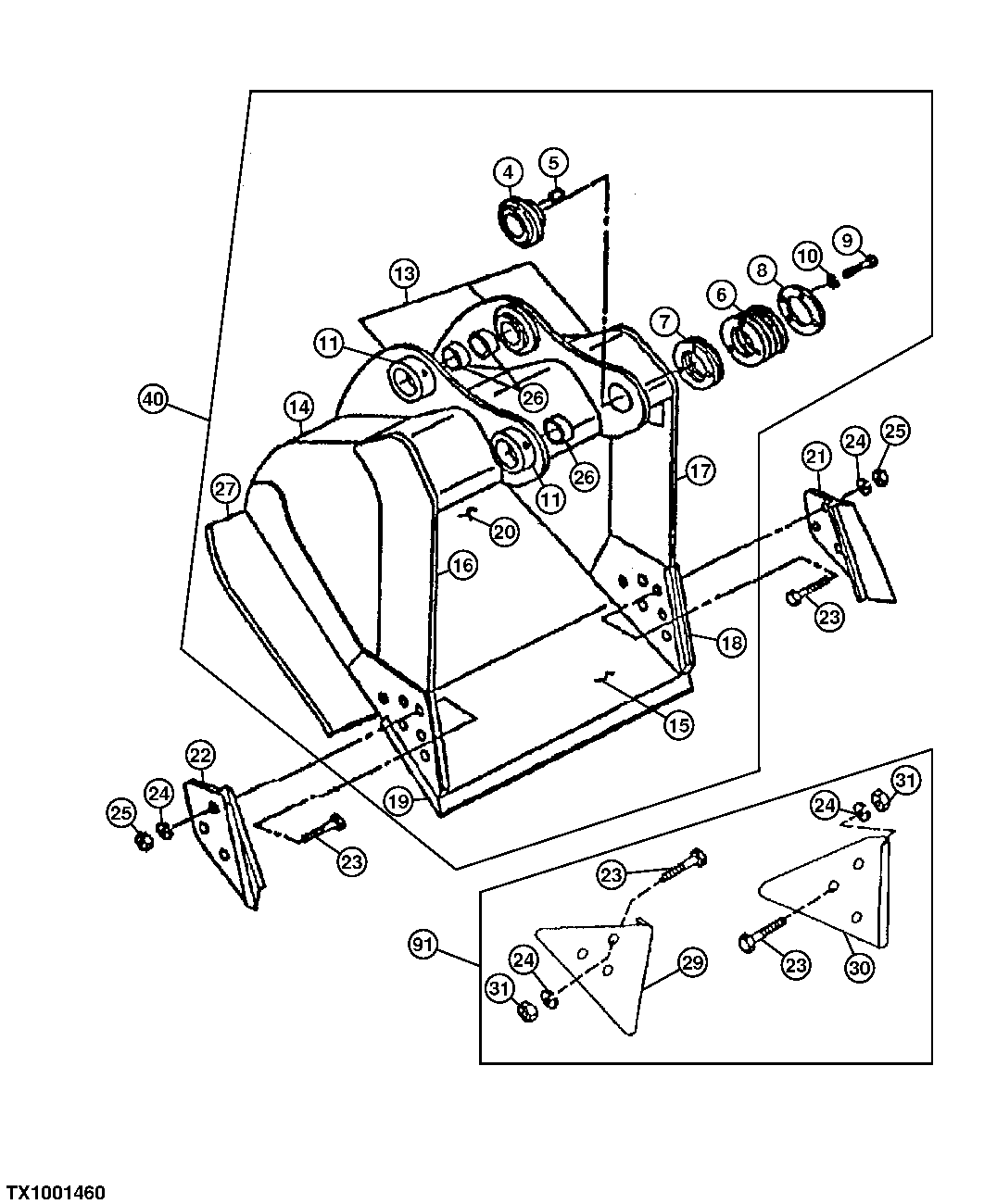

SEVERE DUTY PLATE LIP BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	3038818	1	Boss	(SUB FOR AT131625)
5	4179110	2	Pin	(SUB FOR TH103520)
6	AT131816	7	Washer	(1 MM)
7	4207194	2	Shim	(SUB FOR AT131815)
8	AT131814	1	Plate	-
9	19H2706	4	Cap Screw	5/8" X 2"
10	12H294	4	Lock Washer	5/8"
11	AT128461	2	Bushing	-
13	C606320	1	Pivot	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Bucket Ear Blank Assembly
14	304578	2	Plate	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right and Left Side
15	AT131096	1	Dura-Max Cutting Edge	(CUT TO LENGTH)
16	300642	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Right Side Cutter
17	300647	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Left Side Cutter
18	300344	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Left Side Cutter Insert
19	300343	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right Side Cutter Insert
20	605585	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (42 INCH)
20	605587	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (54 INCH)
20	605586	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (48 INCH)
21	-	1	Part 19	(<service-part>AT131086</service-part> SIDE CUTTER KIT NLA. USE ON 42, 48 OR 54 INCH BUCKET) Use With 42, 48 or 54 Inch Bucket, (SUB AT131086)
21	-	1	Part 20	(<service-part>AT131085</service-part> SIDE CUTTER KIT NLA. USE ON 36 INCH BUCKET.) Use With 36 in. Bucket, (SUB AT131085)
22	-	1	Part 21	(<service-part>AT131086</service-part> SIDE CUTTER KIT NLA. USE ON 42, 48 OR 54 INCH BUCKET) Use With 42, 48 or 54 Inch Bucket, (SUB AT131086)
22	-	1	Part 22	(<service-part>AT131085</service-part> SIDE CUTTER KIT NLA. USE ON 36 INCH BUCKET.) Use With 36 in. Bucket, (SUB AT131085)
23	09H1772	6	Bolt	(<service-part>AT131086</service-part> SIDE CUTTER KIT NLA. USE ON 42, 48 OR 54 INCH BUCKET) 7/8" X 3-1/2", Use With 42, 48 or 54 Inch Bucket
23	09H1771	6	Bolt	(<service-part>AT131085</service-part> SIDE CUTTER KIT NLA. USE ON 36 INCH BUCKET.) 7/8" X 3", Use With 36 in. Bucket
24	12H245	6	Lock Washer	(<service-part>AT131086</service-part> SIDE CUTTER KIT NLA. USE ON 42, 48 OR 54 INCH BUCKET) (<service-part>AT131085</service-part> SIDE CUTTER KIT NLA. USE ON 36 INCH BUCKET.) 7/8"
25	14H1077	6	Nut	(<service-part>AT131086</service-part> SIDE CUTTER KIT NLA. USE ON 42, 48 OR 54 INCH BUCKET) (<service-part>AT131085</service-part> SIDE CUTTER KIT NLA. USE ON 36 INCH BUCKET.) 7/8"
26	4205109	3	Bushing	(SUB FOR AT131768)
27	605591	1	Bar	(<service-part>AT131086</service-part> SIDE CUTTER KIT NLA. USE ON 42, 48 OR 54 INCH BUCKET) (42 INCH), Double Bottom Wear Bar
27	605592	1	Bar	(<service-part>AT131086</service-part> SIDE CUTTER KIT NLA. USE ON 42, 48 OR 54 INCH BUCKET) (48 INCH), Double Bottom Wear Bar
27	605593	1	Bar	(<service-part>AT131086</service-part> SIDE CUTTER KIT NLA. USE ON 42, 48 OR 54 INCH BUCKET) (54 INCH), Double Bottom Wear Bar

SEVERE DUTY PLATE LIP BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES)
