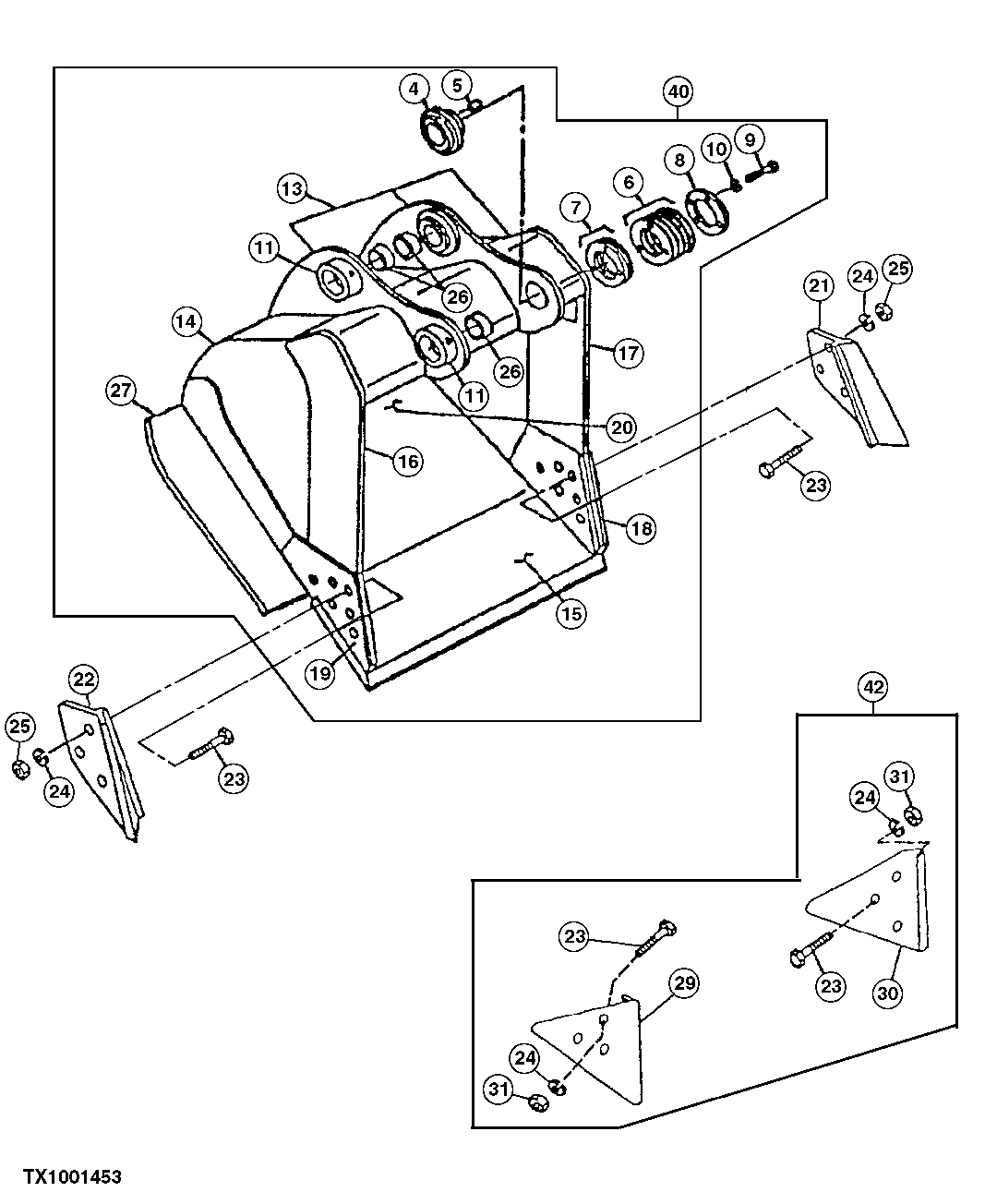

SEVERE DUTY CAST LIP BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	3038818	1	Boss	(SUB FOR AT131625)
5	4179110	2	Pin	(SUB FOR TH103520)
6	AT131816	7	Washer	(1 MM)
7	4207194	2	Shim	(SUB FOR AT131815)
8	AT131814	1	Plate	-
9	19H2706	4	Cap Screw	5/8" X 2"
10	12H294	4	Lock Washer	5/8"
11	AT128461	2	Bushing	-
13	C606320	1	Pivot	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Bucket Ear Blank Assembly
14	304578	2	Plate	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right and Left Side
15	-	1	Part 11	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) ( AT131094 NLA) CUT TO LENGTH), Use With 42 in. Bucket
15	-	1	Part 12	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) ( AT131095 NLA) (CUT TO LENGTH), Use With 48 in. Bucket
16	300642	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Right Side Cutter
17	300647	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Left Side Cutter
18	300344	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Left Side Cutter Insert
19	300343	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right Side Cutter Insert
20	600373	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (42 INCH)
20	600374	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (48 INCH)
21	-	1	Part 19	(KIT <service-part>AT131085</service-part> NLA.) (SUB AT131085)
22	-	1	Part 20	(KIT <service-part>AT131085</service-part> NLA.) (SUB AT131085)
23	09H1771	6	Bolt	(KIT <service-part>AT131085</service-part> NLA.) 7/8" X 3"
24	12H245	6	Lock Washer	(KIT <service-part>AT131085</service-part> NLA.) 7/8"
25	14H1077	6	Nut	(KIT <service-part>AT131085</service-part> NLA.) 7/8"
26	4205109	3	Bushing	(SUB FOR AT131768)
27	606116	1	Bar	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (42 INCH), Double Bottom Wear Bar
27	606117	1	Bar	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (48 INCH), Double Bottom Wear Bar
29	-	1	Part 27	Wear
30	-	1	Part 28	Wear
31	14H1044	6	Nut	7/8"
40	-	1	Part 30	42 in.,1 80 cu yd), Requires 5 Teeth Available Tooth Assemblies On Separate Page
40	-	1	Part 31	48 in., 2.15 cu yd, (AT163695 NLA), Requires 5 Teeth Available Tooth Assemblies On Separate Page
42	-	1	Part 32	(AT167876 NLA), Edge Protector

SEVERE DUTY CAST LIP BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES)
