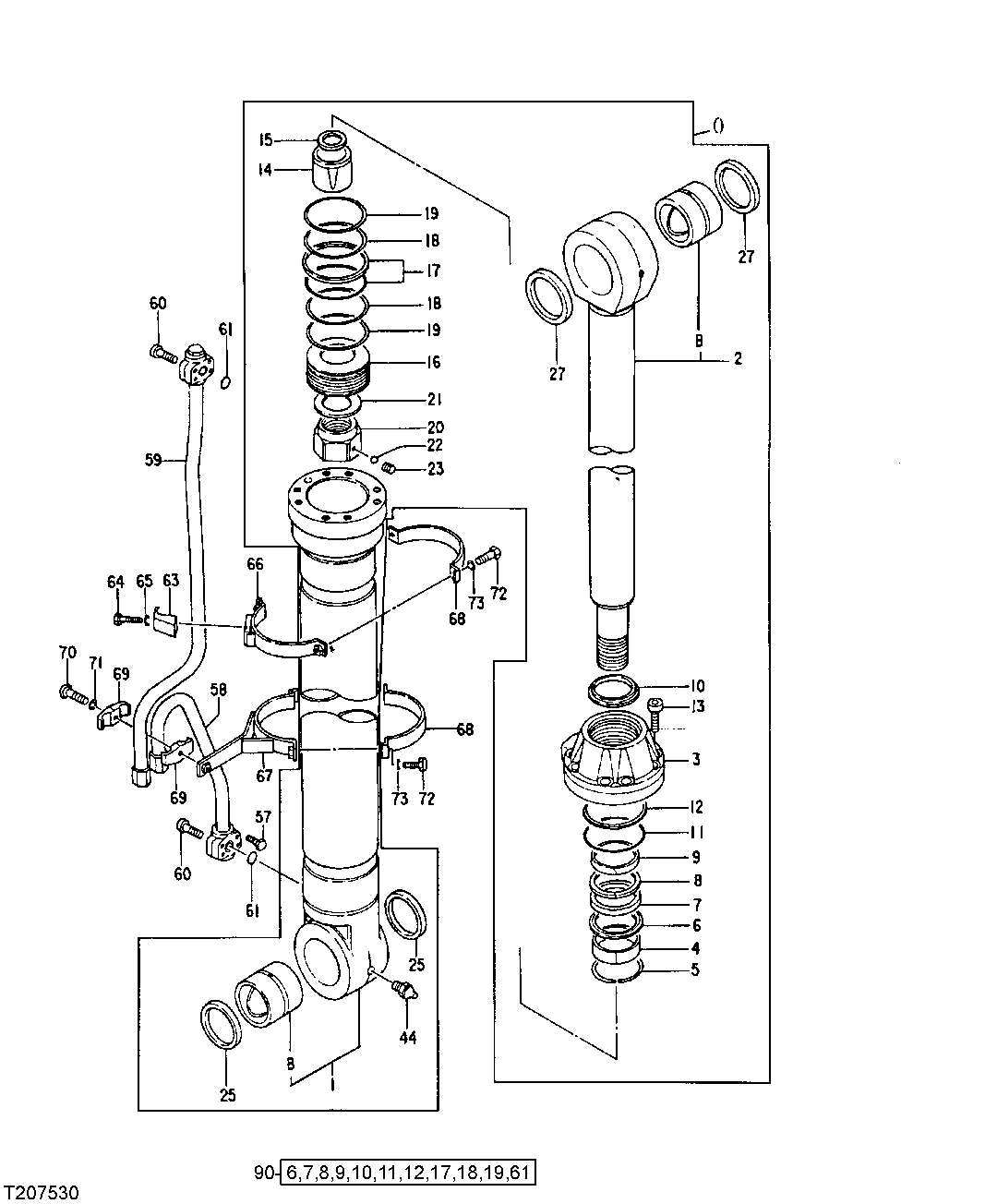

Right Boom Cylinder Components (091287 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4340511	1	Hydraulic Cylinder	SUB FOR 4340511EX
1	0420101	1	Hydraulic Cylinder Barrel	-
1	-	1	Part 4	PG201235 NLA, ORDER 0420101, REMAN
2	0420103	1	Rod	-
3	0420105	1	Cylinder Head	-
4	0352704	1	Bushing	-
5	0133103	1	Snap Ring	-
6	AT132284	1	Ring	SUB FOR 0352705
7	AT132285	1	Seal	SUB FOR 0352706
8	AT132286	1	Back-Up Ring	SUB FOR 0352707
9	0460004	1	Ring	-
10	AT191197	1	Ring	SUB FOR 4438200
11	A811160	1	O-Ring	-
12	AT264252	1	Back-Up Ring	SUB FOR 4170546 AND AT132399
13	0191412	8	Bolt	SUB FOR 0352716
14	0420106	1	Bearing	-
15	0420113	1	Seal	-
16	FXB00012870	1	Piston	SUB FOR 0420108
17	AT264253	1	Ring	SUB FOR 4170547 AND AT132400
18	AT264289	2	Ring	SUB FOR 0420109 AND AT201577
19	AT264248	2	Ring	SUB FOR 0259307
20	0352713	1	Nut	-
21	0352714	1	Shim	-
22	R26552	1	Ball	7.938 mm (5/16"), SUB FOR 0104404
23	H228111	1	Set Screw	SUB FOR 0352715
25	AT201578	2	Ring	SUB FOR 0420110
27	0420111	2	Ring	SUB FOR 4S00853
44	J75481	1	Fitting	-
57	19M8448	4	Screw	M12 X 35
58	-	1	Part 32	Units Built Before February 2003, ORDER 0942407 AND 19M8448
58	0942407	1	Line	Units Built February 2003 And After, USE WITH 19M8448
59	-	1	Part 34	0352718 NLA, Units Built Before February 2003, ORDER 0420114 AND 19M8448
59	0420114	1	Pipe	Units Built February 2003 And After, ALSO ORDER 19M8448
60	M800636	8	Screw	M12 X 55, Units Built Before February 2003
60	19M8448	8	Screw	M12 X 35, Units Built February 2003 And After
61	AT264348	2	O-Ring	-
63	0309219J	1	Half Clamp	SUB FOR 0309219
64	19M8348	1	Cap Screw	M12 X 65, Units Built February 2003 And After
64	19M7273	1	Cap Screw	M12 X 60, Units Built Before February 2003, SUB FOR 19M7273, 0237417 OR 0224115
65	12M7058	1	Lock Washer	12 mm
66	-	1	Part 43	0352719 NLA, Units Built Before February 2003
66	0875612	1	Half Clamp	Units Built February 2003 And After
67	0352720	1	Band	-
68	0352721	2	Band	-
69	0236915J	2	Holder	SUB FOR 0236915
70	19M7291	1	Cap Screw	M14 X 90, SUB FOR 0236916
71	12H317	1	Lock Washer	9/16", SUB FOR A590914
72	19M7550	4	Cap Screw	M10 X 35, SUB FOR 0408815 OR AT153924
73	12M7066	4	Lock Washer	10 mm, SUB FOR 0325913
90	4340620	1	Seal Kit	SUB FOR AT196471, AT201835 OR 4438672
1B	4609090	1	Bushing	SUB FOR 0420112
2B	4S00897	1	Bushing	SUB FOR 0420104

Right Boom Cylinder Components (091287 - )
