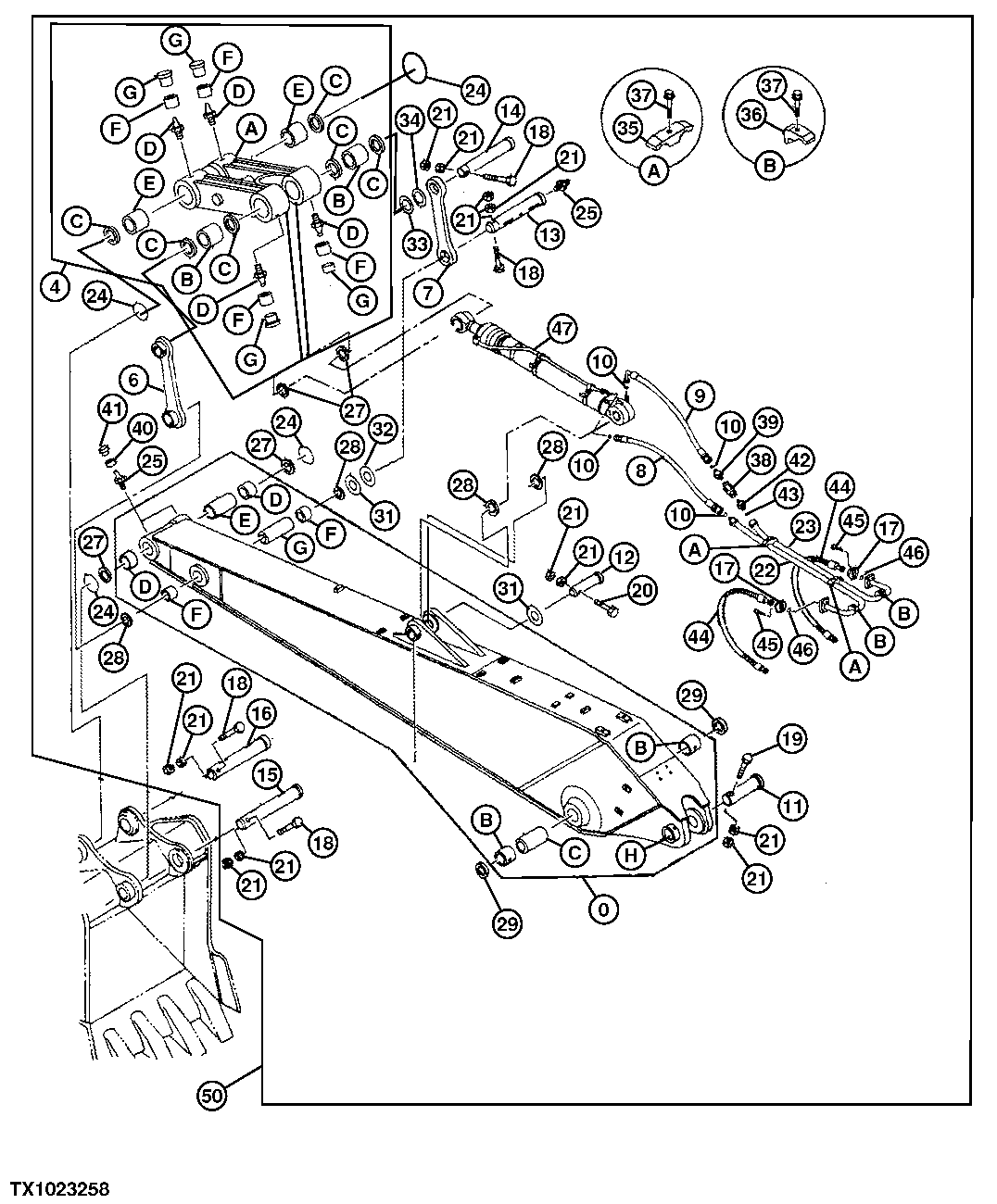

LONG ARM (4.9M/16 FT 1 IN)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9138843	1	Arm	Convenience Assembly, (SUB FOR AT217170)
4	9215855	1	Link	-
6	8068280	1	Link	(SUB FOR AT217164)
7	3055521J	1	Link	(SUB FOR AT200979 OR 3055521)
8	4345675	1	Hydraulic Hose	(SUB FOR AT172092)
9	4334631	1	Hydraulic Hose	Fabricate, (SUB FOR AT172093)
10	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
11	AT128428	1	Pin Fastener	-
12	TH103204	1	Pin	-
13	TH111181	1	Pin Fastener	-
14	TH111182	1	Pin Fastener	100 X 546 mm (3-15/16" X 21.496")
15	3079432	1	Pin Fastener	(SUB FOR AT217080)
16	TH112086	1	Pin Fastener	-
17	4085560	4	Flange Fitting	(SUB FOR TH101960)
18	4382449	4	Bolt	(SUB FOR AT217135)
19	19M8100	1	Cap Screw	M20 X 180
20	19M8503	1	Cap Screw	M20 X 160
21	14M7277	12	Nut	M20
22	8061758	1	Line	(SUB FOR AT172090)
23	8061759	1	Line	(SUB FOR AT172091)
24	AT349467	4	Seal	(SPLIT O-RING)
24	4100180	4	O-Ring	(STANDARD O-RING)
25	TH100074	3	Lubrication Fitting	-
27	TH102411	4	Seal	-
28	TH102445	4	Seal	-
29	4251752	2	Seal	(SUB FOR AT202304)
31	TH106307	4	Washer	-
32	TH106308	1	Washer	-
33	4189839	2	Washer	101 X 165 X 1.200 mm (3.976" X 6.496" X 3/64"), (SUB FOR TH106305)
34	4189838	1	Washer	101 X 165 X 2.300 mm (3.976" X 6.496" X 0.091"), (SUB FOR TH106306)
35	4189860	2	Clamp	(SUB FOR TH108314)
36	4190127	2	Clamp	(SUB FOR TH108313)
37	19M8348	4	Cap Screw	M12 X 65
38	4041432	1	Flow Control Hyd. Valve	(SUB FOR AT172094)
39	4208659	1	Adapter Fitting	(SUB FOR AT172095)
40	4130686	2	Bushing	(SUB FOR AT217082)
41	4105912	2	Cap	(SUB FOR AT217081)
42	4208097	1	Adapter Fitting	(SUB FOR AT172096)
43	T78612	1	O-Ring	(SUB FOR AT250019)
44	AT172097	2	Hydraulic Hose	Fabricate
45	19M8395	8	Screw	M12 X 40
46	T78313	2	O-Ring	32.918 X 3.531 mm (1.296" X 0.139")
47	9264721JEX	1	Hydraulic Cylinder Reman	Bucket, (REMAN) (At182461 NLA)
50	AT194261	1	Arm	Includes Long Arm, Bucket Cylinder, Hoses and Linkage, (WHOLE GOODS)
90	24M7027	1	Washer	5.300 X 10 X 1 mm, (NOT ILLUSTRATED)
90	14M7572	1	Lock Nut	M5, (NOT ILLUSTRATED)
90	19M9304	1	Cap Screw	M5 X 90, (NOT ILLUSTRATED)
90	AT349467	1	Seal	(SUB FOR <service-part qty="1">T238397</service-part>)(NOT ILLUSTRATED)
0B	3055205	2	Bushing	(SUB FOR AT201685)
0C	4334122	1	Spacer	(SUB FOR AT202332)
0D	3079389	2	Bushing	SUB FOR AT217079
0E	4313282	1	Spacer	(SUB FOR AT201049)
0F	TH103216	2	Bushing	-
0G	4143371	1	Spacer	(SUB FOR TH103217)
0H	4662435	1	Stop	(SUB FOR AT131769 OR 4205110)
0I	TH102409	1	Bushing	92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")
4A	7042773	1	Link	-
4B	TH111170	2	Bushing	-
4C	TH102411	6	Seal	-
4D	TH100074	4	Lubrication Fitting	-
4E	3095466	2	Bushing	-
4F	4130686	4	Bushing	-
4G	4105912	4	Cap	-
