Открытый узел

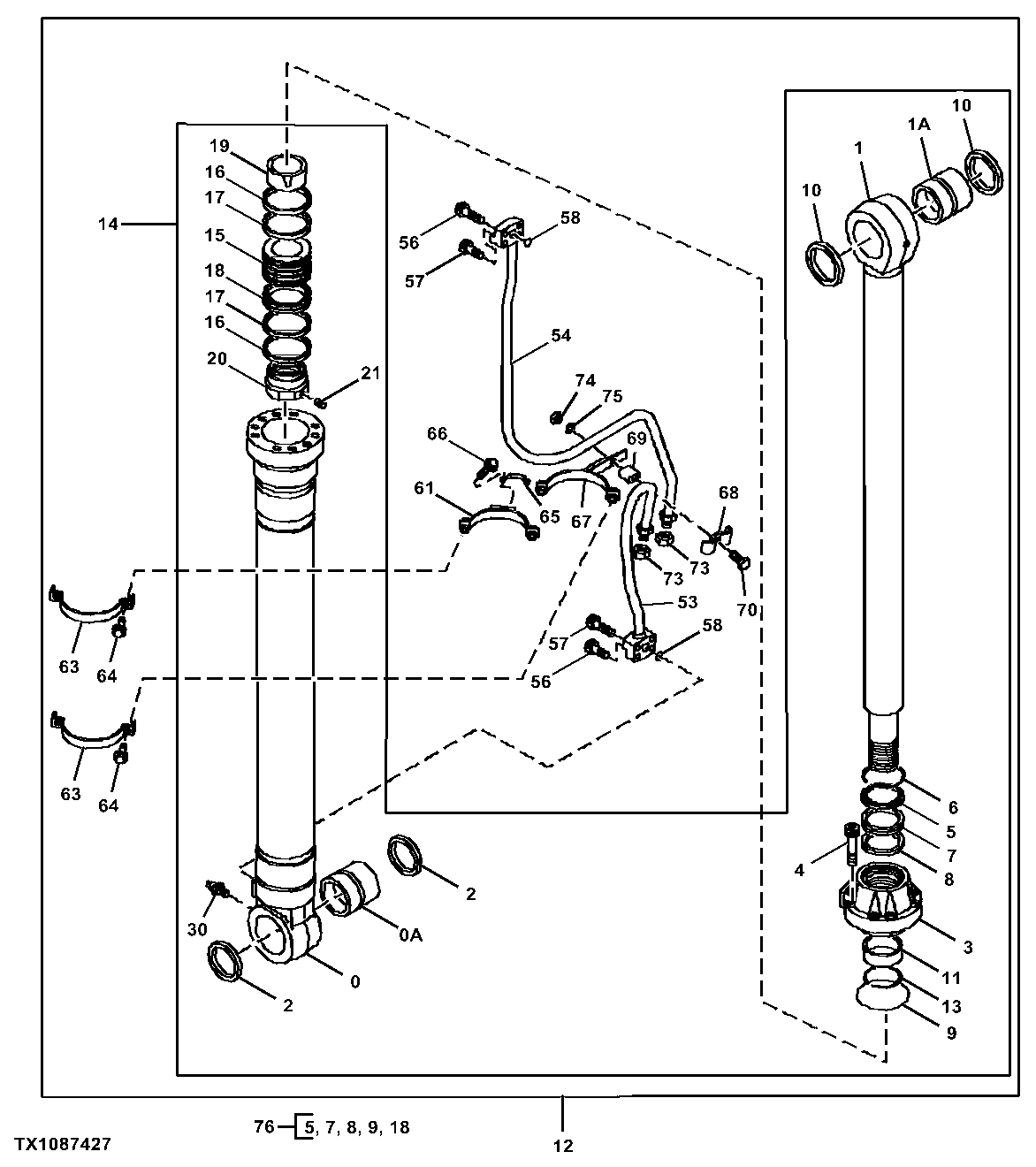

Left Boom Cylinder Components ( - 091286)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 2	PG201353 NLA, ORDER 4646018, REMAN
0	4646018	1	Hydraulic Cylinder Barrel	SUB FOR AT192597, 7035471 OR 7038394
1	4645921	1	Hydraulic Cylinder Rod	SUB FOR AT192599 AND 7035476
1	-	1	Part 5	PG201355 NLA, ORDER 4645921, REMAN
2	AT201578	2	Ring	SUB FOR AT192602 OR 4411612
3	1025101	1	Hydr. Cylinder Rod Guide	SUB FOR AT219589
4	M342700	8	Screw	SUB FOR TH111068
5	AT264305	1	Seal	SUB FOR AT250009, 4370927
6	4370058	1	Snap Ring	SUB FOR AT250001
7	AT264300	1	Seal	SUB FOR 4411659; SUB FOR AT192601
8	4411656	1	Ring	SUB FOR AT264299; SUB FOR AT192600
9	AT264309	1	O-Ring	For Heat Problems See DTAC Solution, SUB FOR AT250098, 4393350
9	4641099	1	O-Ring	Heat Resistant
10	4411613	2	Seal	SUB FOR AT192608
11	AT264304	1	Bushing	SUB FOR AT250007, 4370337
12	-	1	Part 18	NLA
13	4372816	1	Snap Ring	SUB FOR AT250011
14	9187754JEX	1	Hydraulic Cylinder Reman	REMAN, SUB FOR TH9187754
15	3080654	1	Piston	SUB FOR AT219642
16	AT264302	2	Ring	SUB FOR AT250005, 4370063
17	AT264303	2	Wear Ring	SUB FOR AT250006, 4370064
18	AT264301	1	Seal	SUB FOR AT250004, 4370062
19	2044681	1	Ring	SUB FOR AT192324
20	3062096	1	Nut	SUB FOR AT200985
21	4201806	1	Set Screw	SUB FOR TH110066
30	JD7769	1	Lubrication Fitting	-
53	8074374	1	Line	-
54	8074373	1	Line	-
56	19M8341	4	Screw	M12 X 45
57	19M8444	4	Screw	M12 X 60
58	AT264324	2	O-Ring	SUB FOR TH100044
61	8079073	1	Clamp	SUB FOR AT250199, 8068103
63	3088474	2	Clamp	SUB FOR AT219641, 3080222
64	19M7550	4	Cap Screw	M10 X 35
64	12M7066	4	Lock Washer	10 mm
65	4174241	1	Clamp	SUB FOR TH110059
66	12M7066	2	Lock Washer	10 mm
66	19M7402	2	Cap Screw	M10 X 25
67	8080074	1	Clamp	SUB FOR AT192605, 8074370
68	4229234	1	Clamp	SUB FOR TH111990
69	4410980	1	Spacer	SUB FOR AT192325
70	19M8348	1	Cap Screw	M12 X 65
73	4260204	2	Nut	SUB FOR AT219663
74	14M7275	1	Nut	M12
75	12H301	1	Lock Washer	1/2"
76	9180582	1	Seal Kit	For Heat Problems See DTAC Solution, SUB FOR AT264441 OR AT192606; INCLUDES AT280442
76	9257552	1	Seal Kit	Heat Resistant
0A	3083938	1	Bushing	SUB FOR TH3083938
1A	3083925	1	Bushing	SUB FOR AT192320

Left Boom Cylinder Components ( - 091286)

Нет текстового описания
