Открытый узел

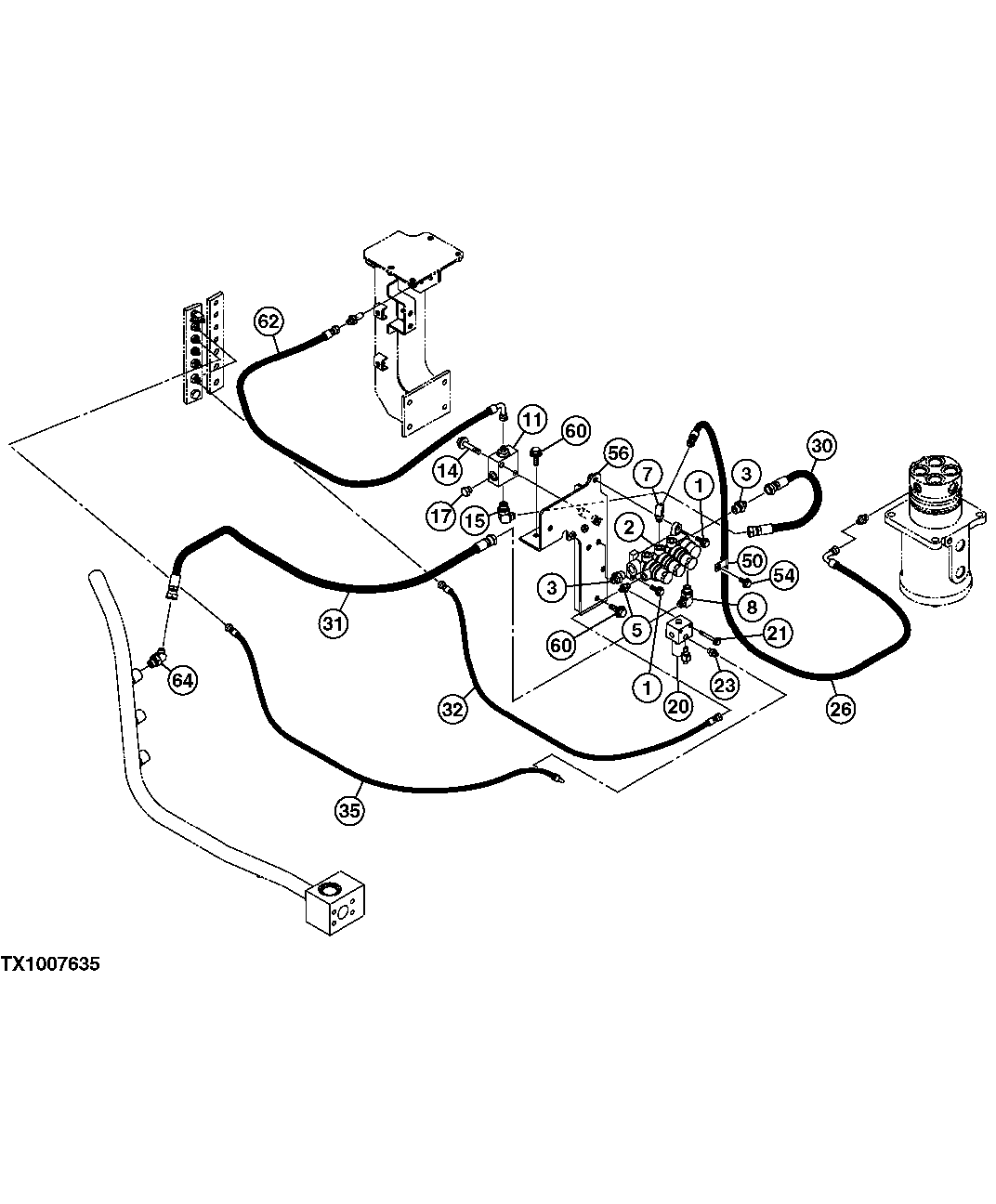

HYDRAULIC HOSES (RESERVOIR AND SOLENOID VALVE-PILOT SYSTEM)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4436197	1	Solenoid Valve	SUB FOR TH4436197
1	19M7550	2	Cap Screw	M10 X 35
1	12M7066	2	Lock Washer	10 mm
3	A852144	2	Adapter Fitting	INCLUDES U46489; SUB FOR THA852144
3	4506418	2	O-Ring	SUB FOR U46489
5	4200465	1	Adapter Fitting	INCLUDES M800650; SUB FOR TH108328
5	M800650	1	Packing	-
7	A852323	1	Elbow Fitting	(INCLUDES <service-part qty="1">M800650</service-part>)( <service-part >THA852323</service-part> NLA)
7	M800650	1	Packing	-
8	4154672	1	Elbow Fitting	INCLUDES U46489; SUB FOR TH101008
8	4506418	1	O-Ring	SUB FOR U46489
11	9162817	1	Check Valve	SUB FOR 9123033 OR AT201932
14	-	2	Part 13	M10 X 60 ( <service-part>19M5536</service-part> NLA)
14	12M7066	2	Lock Washer	10 mm
14	24M7028	2	Washer	10.500 X 20 X 2 mm
15	4154672	1	Elbow Fitting	INCLUDES U46489; SUB FOR TH101008
15	4506418	1	O-Ring	SUB FOR U46489
17	A885003	1	Pipe Plug	INCLUDES CH11570; SUB FOR THA885003
17	CH11570	1	O-Ring	-
20	4729022	1	Solenoid Valve	SUB FOR AT202111 AND 4261289
21	19M8402	2	Cap Screw	M8 X 65
21	-	2	Part 22	12M7065 NLA
23	4200465	1	Adapter Fitting	INCLUDES M800650; SUB FOR TH108328
23	M800650	1	Packing	-
26	4442655	1	Hydraulic Hose	SUB FOR TH4442655
30	AA56904	1	Hydraulic Hose	3/4" X 514 mm (20-1/4") X 3/4", SUB FOR AN280330
31	4452749	1	Hydraulic Hose	SUB FOR TH4452749
32	4447833	1	Hydraulic Hose	SUB FOR TH4447833
35	4459252	1	Hydraulic Hose	SUB FOR TH4459252
50	4190275	1	Clamp	SUB FOR TH108598
54	19M7402	1	Cap Screw	M10 X 25
54	24M7028	1	Washer	10.500 X 20 X 2 mm
54	12M7066	1	Lock Washer	10 mm
56	7042630	1	Bracket	SUB FOR 7039871
60	19M8011	2	Cap Screw	M12 X 30
60	12M7058	2	Lock Washer	12 mm, SUB FOR 12M7067
60	24H1748	2	Washer	1/2" X 1-1/4" X 0.105"
62	4459255	1	Hydraulic Hose	SUB FOR TH4459255
64	A852244	1	Elbow Fitting	INCLUDES U46489; SUB FOR THA852244
64	4506418	1	O-Ring	SUB FOR U46489

HYDRAULIC HOSES (RESERVOIR AND SOLENOID VALVE-PILOT SYSTEM)
