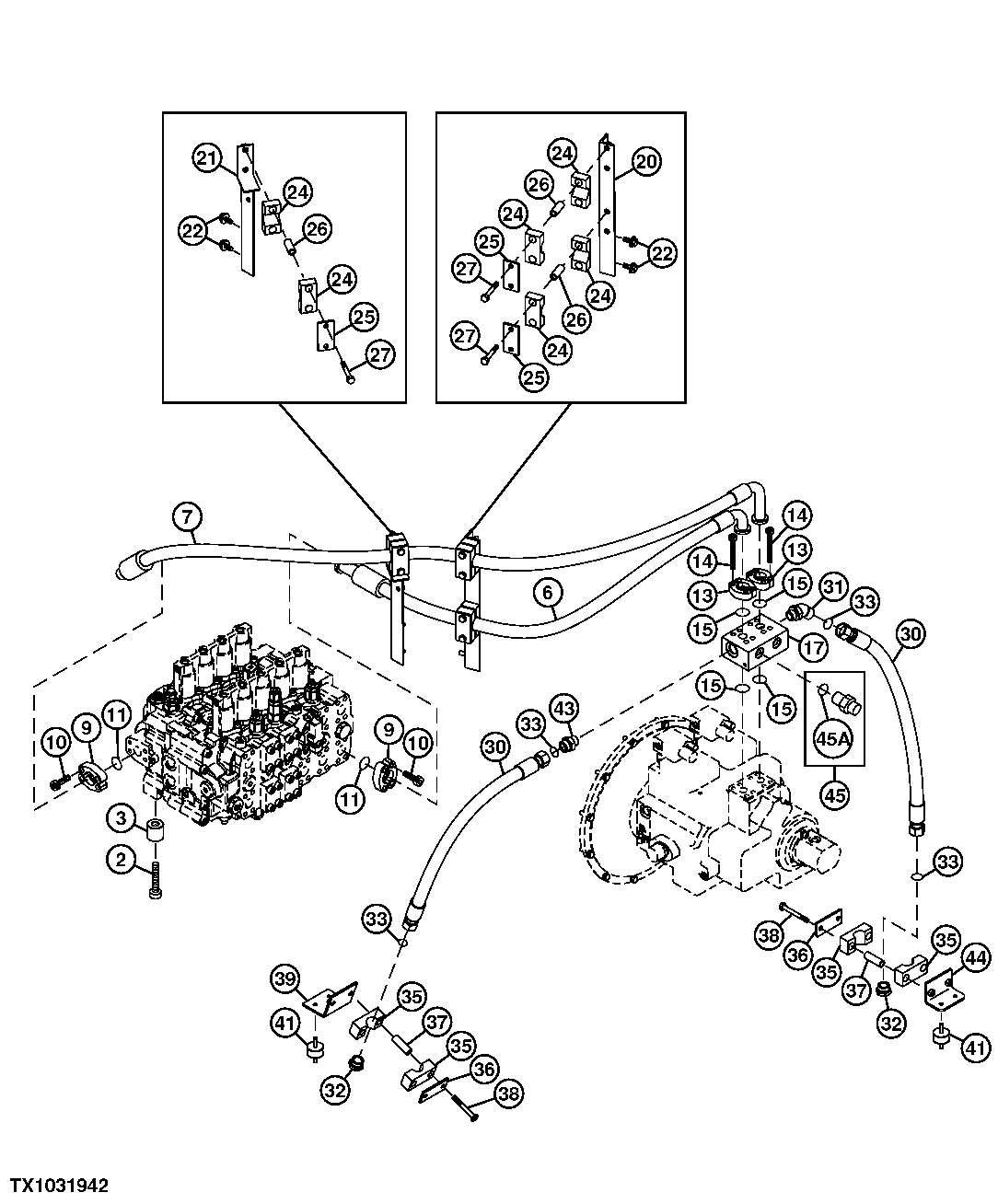

HYDRAULIC HOSES (PUMP TO CONTROL VALVE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	M342000	4	Screw	-
3	4354513	4	Spacer	SUB FOR AT172243
6	4436055	1	Hydraulic Hose	SUB FOR TH4436055
7	4436054	1	Hydraulic Hose	SUB FOR TH4436054
9	AT131685	4	Flange Fitting	-
10	19M8734	8	Screw	M14 X 45
11	T72216	2	O-Ring	-
13	4085560	4	Flange Fitting	SUB FOR TH101960
14	M341211	8	Bolt	SUB FOR AT202274
15	T78313	4	O-Ring	-
17	2043824	1	Manifold	SUB FOR TH2043824
20	9754731	1	Bracket	SUB FOR TH9754731
21	8079964	1	Bracket	SUB FOR TH8079964
21	9759374	1	Bracket	-
22	19M8011	4	Cap Screw	M12 X 30
22	12H301	4	Lock Washer	1/2"
22	24M7047	4	Washer	13 X 24 X 2.500 mm
24	4341808	6	Hose Clamp	SUB FOR AT201828
25	4341803	3	Plate	SUB FOR AT201827
26	4205614	6	Spacer	SUB FOR AT131791
27	12M7058	6	Lock Washer	12 mm, SUB FOR 12M7067
27	19M7949	6	Cap Screw	M12 X 100
30	4286812	2	Hydraulic Hose	SUB FOR AT202308
31	FYA00046237	1	Elbow Fitting	INCLUDES TH101926, SUB FOR AT201732 AND 4270315
31	TH101926	1	O-Ring	-
32	4210056	2	Plug	SUB FOR AT202300
33	T76938	4	O-Ring	-
35	4349621	4	Hose Clamp	SUB FOR AT170625
36	4341803	2	Plate	SUB FOR AT201827
37	4215879	4	Spacer	SUB FOR AT170626 AND 4349648
38	19M7949	4	Cap Screw	M12 X 100
38	12M7058	4	Lock Washer	12 mm, SUB FOR 12M7067
39	9756342	1	Bracket	SUB FOR TH9756342
41	4354592	4	Isolator	SUB FOR AT216977
43	A853188	1	Adapter Fitting	INCLUDES TH101926, SUB FOR THA853188
43	TH101926	1	O-Ring	-
44	9757386	1	Bracket	SUB FOR TH9757386
45	4436271	2	Sensor	-
45	TH102560	2	O-Ring	-

HYDRAULIC HOSES (PUMP TO CONTROL VALVE)
