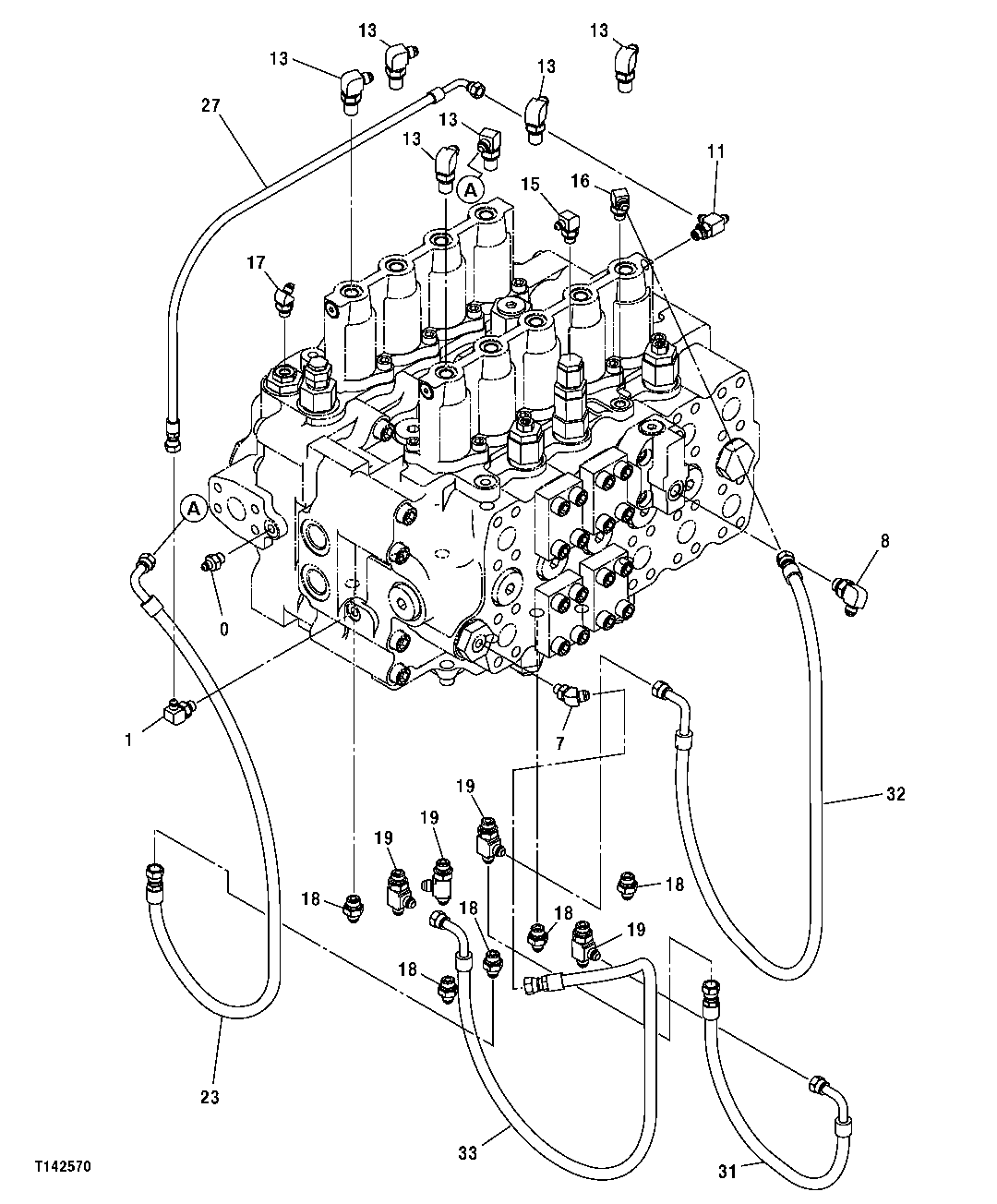

HYDRAULIC HOSES (CONTROL VALVE-PILOT SYSTEM)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	M800650	1	Packing	-
0	4200465	1	Adapter Fitting	(INCLUDES M800650 ) (SUB FOR TH108328)
1	4154670	1	Elbow Fitting	(INCLUDES M800650 ) (SUB FOR TH100951)
1	M800650	1	Packing	-
7	A852223	1	Elbow Fitting	(INCLUDES M800650 ) (SUB FOR THA852223)
7	M800650	1	Packing	-
8	A852333	1	Elbow Fitting	(INCLUDES CH11570 ) (SUB FOR TH101047 ) (SUB FOR 4154671)
8	CH11570	1	O-Ring	-
11	A852422	1	Tee Fitting	(INCLUDES M800650 ) (SUB FOR THA852422)
11	M800650	1	Packing	-
13	4208913	6	Adapter Fitting	(SUB FOR AT126458)
13	CH11570	6	O-Ring	-
15	4154670	1	Elbow Fitting	(INCLUDES M800650 ) (SUB FOR TH100951)
15	M800650	1	Packing	-
16	M800650	1	Packing	-
16	A852323	1	Elbow Fitting	SUB FOR THA852323; INCLUDES M800650
17	THA852222	1	Elbow Fitting	(INCLUDES M800650)
17	M800650	1	Packing	-
18	4200466	5	Adapter Fitting	(INCLUDES CH11570 ) (SUB FOR TH108320)
18	CH11570	5	O-Ring	-
19	A852433	4	Tee Fitting	(INCLUDES CH11570 ) (SUB FOR THA852433)
19	CH11570	4	O-Ring	-
23	4445270	1	Hydraulic Hose	(SUB FOR TH4445270)
27	4427782	1	Hydraulic Hose	(SUB FOR TH4437412 OR 4437412)
31	-	1	Part 25	9231239 NLA, ORDER 4657103, E90991, AND A852243
31	4657103	1	Hydraulic Hose	SUB FOR 4437436, TH4437436, AND 4488227
31	-	1	Part 27	MAKE FROM E90991, CTL
31	A852243	1	Elbow Fitting	-
32	4437438	1	Hydraulic Hose	(SUB FOR TH4437438)
33	4437440	1	Hydraulic Hose	(SUB FOR TH4437440)

HYDRAULIC HOSES (CONTROL VALVE-PILOT SYSTEM)
