Открытый узел

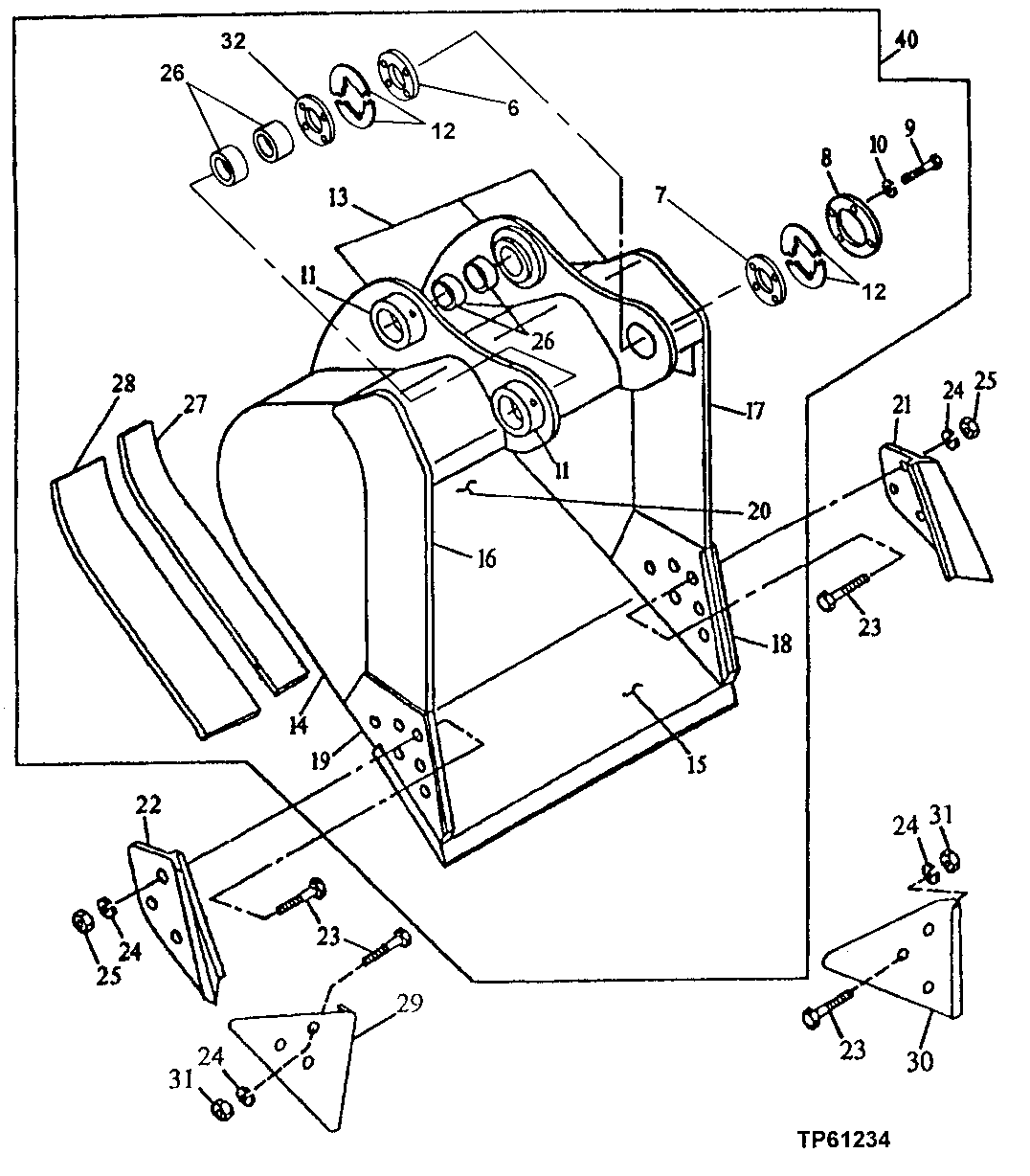

HEAVY DUTY HIGH CAPACITY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
6	C31763	1	Boss	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.)
7	C31764	1	Boss	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.)
8	AT183653	1	Plate	-
9	19M7884	4	Cap Screw	M16 X 110
10	12M7134	4	Lock Washer	16 mm
11	AT128461	2	Bushing	-
12	AT183654	14	Shim	-
13	C606320	1	Pivot	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Bucket Ear Blank Assembly
14	300324	2	Plate	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right and Left Side
15	AT131098	1	Dura-Max Cutting Edge	(CUT TO LENGTH)
16	300327	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Right Side Cutter
17	300328	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Left Side Cutter
18	300326	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Left Side Cutter Insert
19	300325	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right Side Cutter Insert
20	608234	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (72 INCH)
20	600196	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (60 INCH)
20	600195	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (54 INCH)
20	600192	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (42 INCH)
20	600190	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (36 INCH)
20	600194	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (48 INCH)
21	-	1	Part 21	(<service-part>AT131085</service-part>) (SUB AT131085)
22	-	1	Part 22	(<service-part>AT131085</service-part>) (SUB AT131085)
23	09H1771	6	Bolt	(<service-part>AT131085</service-part>) (<service-part>AT167876</service-part>) 7/8" X 3"
24	12H245	6	Lock Washer	(<service-part>AT131085</service-part>) (<service-part>AT167876</service-part>) 7/8"
25	14H1077	6	Nut	(<service-part>AT131085</service-part>) 7/8"
26	4205109	4	Bushing	(SUB FOR AT131768)
27	300645	1	Bar	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Inner Wear
28	307451	1	Bar	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Outer Wear
29	-	1	Part 29	(<service-part>AT167876</service-part>) Wear
30	-	1	Part 30	(<service-part>AT167876</service-part>) Wear
31	14H1044	6	Nut	(<service-part>AT167876</service-part>) 7/8"
32	AT183652	1	Boss	-
40	-	1	Part 33	36 in, 96 cu yd, (AT183645 NLA), Available Tooth Assemblies On Separate Page Requires 4 Teeth
40	-	1	Part 34	( AT183646 NLA), (WHOLEGOODS) (42 INCH - 2.32 CUBIC YARD) (REQUIRES 4 TEETH)
40	-	1	Part 35	( AT183647 NLA), (SUB <service-part qty="1">AT332745</service-part> (WHOLEGOODS) (48 INCH - 2.69 CUBIC YARD) (REQUIRES 5 TEETH))
40	-	1	Part 36	( AT183648 NLA), (SUB <service-part qty="1">AT332746</service-part> (WHOLEGOODS) (54 INCH - 3.06 CUBIC YARD) (REQUIRES 5 TEETH))
40	-	1	Part 37	( AT183649 NLA), (SUB <service-part qty="1">AT332747</service-part> (WHOLEGOODS) (60 INCH - 3.43 CUBIC YARD) (REQUIRES 6 TEETH))
40	-	1	Part 38	( AT183650 NLA), (SUB <service-part qty="1">AT332748</service-part> (WHOLEGOODS) (66 INCH - 3.80 CUBIC YARD) (REQUIRES 6 TEETH))
40	-	1	Part 39	( AT183651 NLA), (SUB <service-part qty="1">AT332749</service-part> (WHOLEGOODS) (72 INCH - 4.18 CUBIC YARD) (REQUIRES 7 TEETH))

HEAVY DUTY HIGH CAPACITY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES)
