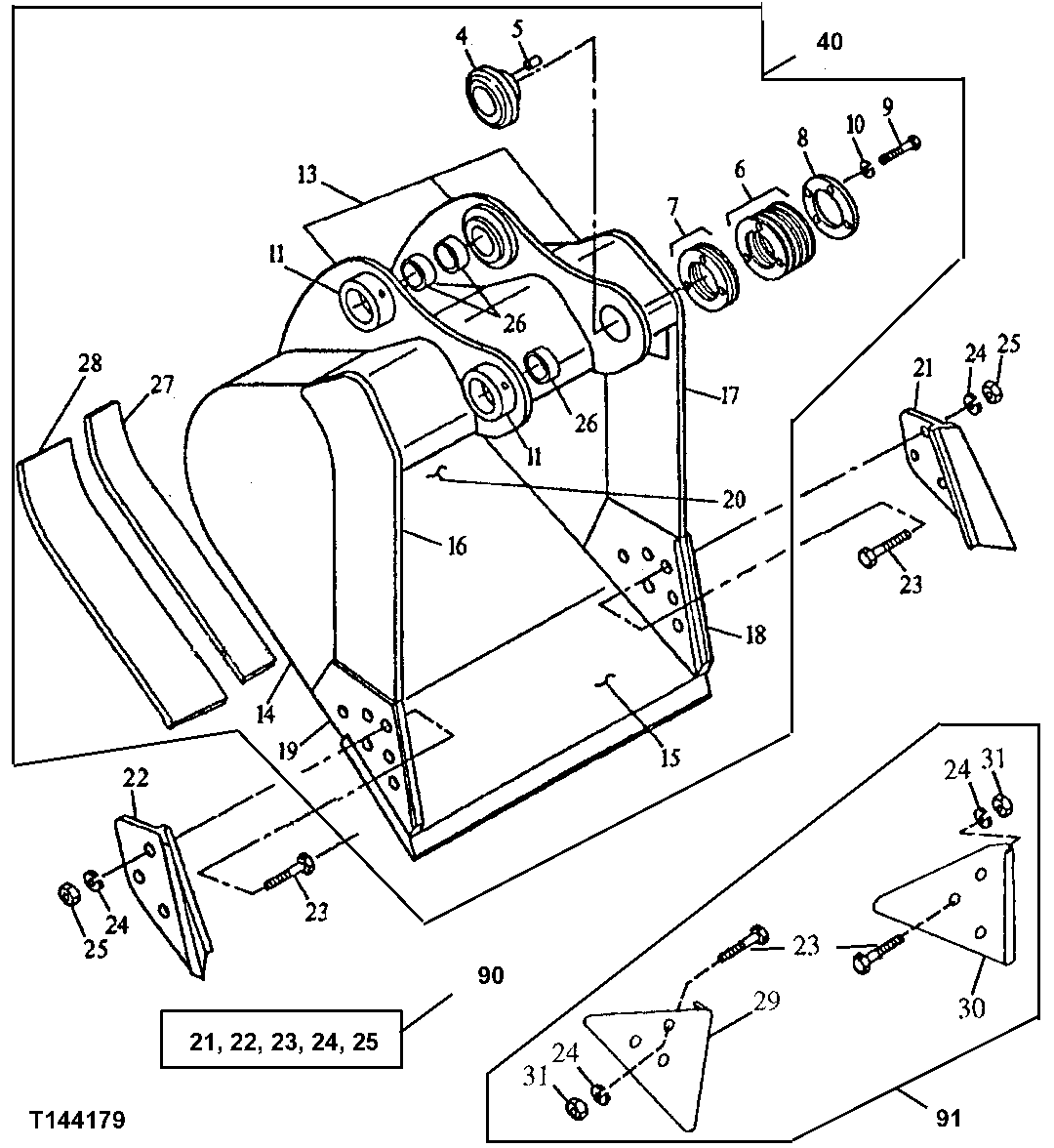

HEAVY DUTY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	3038818	1	Boss	(SUB FOR AT131625)
5	4179110	2	Pin	(SUB FOR TH103520)
6	AT131816	7	Washer	(1 MM)
7	4207194	2	Shim	(SUB FOR AT131815)
8	AT131814	1	Plate	-
9	19H2706	4	Cap Screw	5/8" X 2"
10	12H294	4	Lock Washer	5/8"
11	AT128461	2	Bushing	-
13	C606320	1	Pivot	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Bucket Ear Blank Assembly
14	304578	2	Plate	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right and Left Side
15	AT131097	1	Dura-Max Cutting Edge	(CTL)
16	301025	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Right Side Cutter
17	301026	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Left Side Cutter
18	304577	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Left Side Cutter Insert
19	304576	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right Side Cutter Insert
20	602707	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (72 INCH)
20	602706	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (60 INCH)
20	602705	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (54 INCH)
20	600542	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (42 INCH)
20	600541	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (36 INCH)
20	600543	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (48 INCH)
21	-	1	Part 22	(SUB AT131085)
22	-	1	Part 23	(SUB AT131085)
23	09H1771	6	Bolt	7/8" X 3"
24	12H245	6	Lock Washer	7/8"
25	14H1077	6	Nut	7/8"
26	4205109	3	Bushing	(SUB FOR AT131768)
27	301024	2	Bar	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Inner Wear
28	304579	2	Bar	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Outer Wear
29	-	1	Part 30	Wear Shroud
30	-	1	Part 31	Wear Shroud
31	14H1044	6	Nut	7/8"
40	-	1	Part 33	( AT163675 NLA), (WHOLEGOODS) (36 INCH - 1.56 CUBIC YARD) (REQUIRES 4 TEETH)
40	-	1	Part 34	( AT163678 NLA), (SUB <service-part qty="1">AT332738</service-part> (WHOLEGOODS) (42 INCH - 1.85 CUBIC YARD) (REQUIRES 5 TEETH))
40	-	1	Part 35	( AT163681 NLA), (SUB <service-part qty="1">AT332739</service-part> (WHOLEGOODS) (48 INCH - 2.15 CUBIC YARD) (REQUIRES 6 TEETH))
40	-	1	Part 36	( AT163682 NLA), (SUB <service-part qty="1">AT332740</service-part> (WHOLEGOODS) (54 INCH - 2.45 CUBIC YARD) (REQUIRES 6 TEETH))
40	-	1	Part 37	( AT163683 NLA), (SUB <service-part qty="1">AT332741</service-part> (WHOLEGOODS) (60 INCH - 2.74 CUBIC YARD) (REQUIRES 7 TEETH) (DO NOT USE WITH 16' 1" ARM))
40	-	1	Part 38	( AT163684 NLA), (SUB <service-part qty="1">AT332742</service-part> (WHOLEGOODS) (66 INCH - 3.01 CUBIC YARD) (REQUIRES 7 TEETH))
40	-	1	Part 39	( AT163686 NLA), (SUB <service-part qty="1">AT332743</service-part> (WHOLEGOODS) (72 INCH - 3.29 CUBIC YARD) (REQUIRES 8 TEETH))
90	-	1	Part 40	(AT131085 NLA), Side Cutter Kit
91	-	1	Part 41	(AT167876 NLA), Edge Protector

HEAVY DUTY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES)
