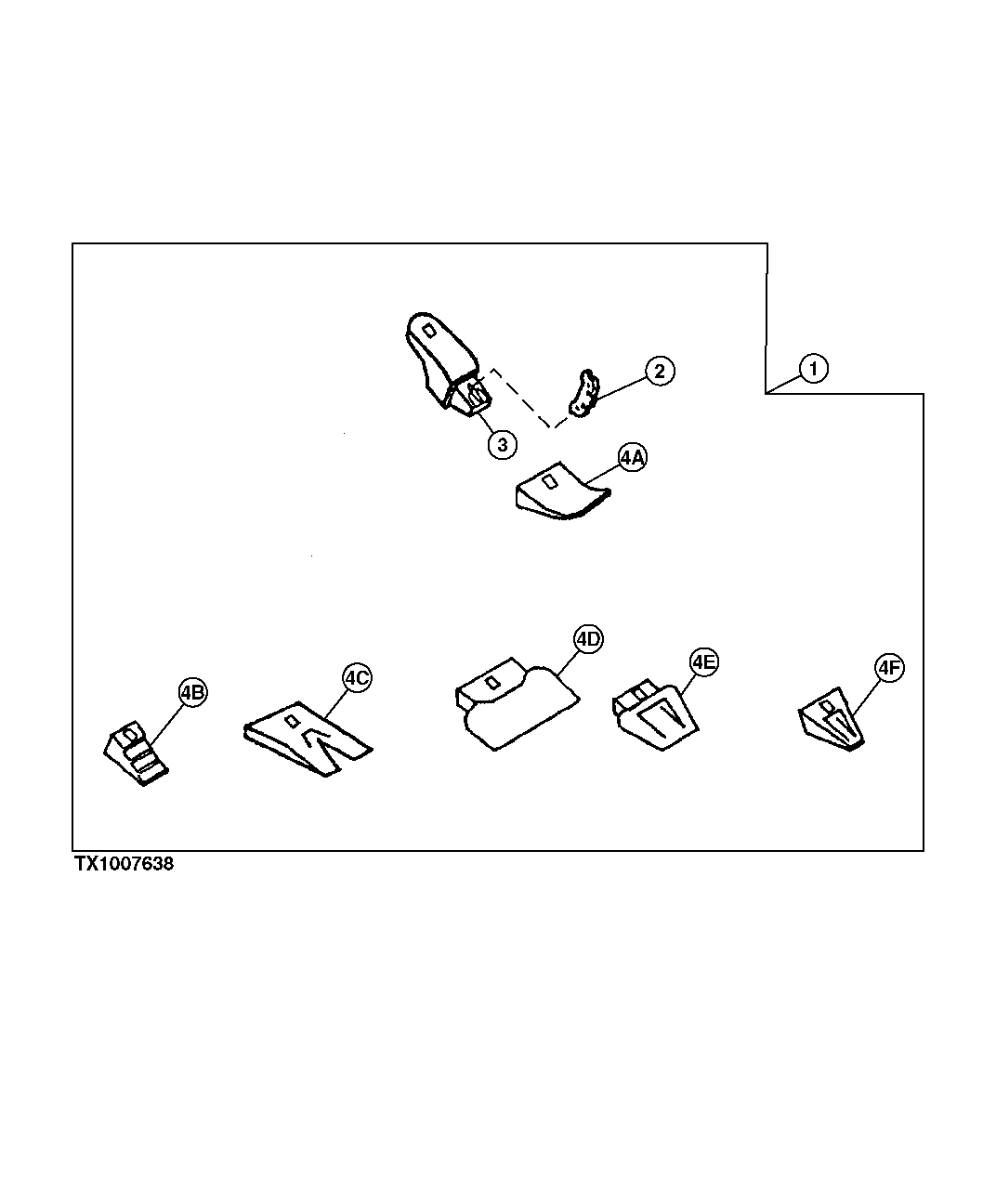

GENERAL PURPOSE BUCKET TOOTH ASSEMBLY (54 INCH BUCKET) (CONTINUED)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
3	-	1	Part 2	EX5856-37V NLA, Esco Vertalok See Esco Tooth Page Not Illustrated
3	T3G8354	1	Bucket Tooth Adapter	Caterpillar Replacement Not Illustrated
3	PM1U1553	1	Bucket Tooth Adapter	Caterpillar Style Not Illustrated
3	EV5857A-V51	1	Bucket Tooth Adapter	Super V-Style EV51SYL Tooth Kit Not Illustrated
3	EV5856-V43	1	Bucket Tooth Adapter	Super V-Style EV43SYL Tooth Kit Not Illustrated
3	T802X400	1	Bucket Tooth Adapter	-
5	T3G9549	1	Retainer	Caterpillar Replacement Not Illustrated
6	EX37VPL	1	Plug	See Esco Tooth Page Not Illustrated
4A	TF400	1	Tooth	-
4B	TX400	1	Tooth	-
4C	TX400WT	1	Tooth	-
4D	TX400F	1	Tooth	-
4E	TX400AP	1	Tooth	-
4F	TT400	1	Tooth	-
4G	EX37SYL	1	Tooth	Esco Standard See Esco Tooth Page Not Illustrated, EX5824-37 NLA, ALSO ORDER EX37VPL AND EX37VPN
4H	-	1	Part 14	Esco Twin Tiger See Esco Tooth Page Not Illustrated, EX37TVIP NLA
4I	-	1	Part 15	Esco Flare See Esco Tooth Page Not Illustrated, EX37S7F NLA
4J	-	1	Part 16	Esco Tiger See Esco Tooth Page Not Illustrated, EX37VIP NLA
4K	TF9W8452D	1	Tooth	Caterpillar Replacement Fanggs™ Not Illustrated
4L	T9W8452	1	Tooth	Caterpillar Replacement Standard Not Illustrated
4M	TX1U3352WT	1	Tooth	Caterpillar Replacement Twin Tiger Not Illustrated
4N	TT1U3352	1	Tooth	Caterpillar Replacement Tiger Not Illustrated
4O	T1U3552	1	Tooth	Caterpillar Style Not Illustrated
4P	EV51SYL	1	Tooth	Super V-Style EV51SYL Tooth Kit Not Illustrated
4Q	EV43SYL	1	Tooth	Super V-Style EV43SYL Tooth Kit Not Illustrated

GENERAL PURPOSE BUCKET TOOTH ASSEMBLY (54 INCH BUCKET) (CONTINUED)
