Открытый узел

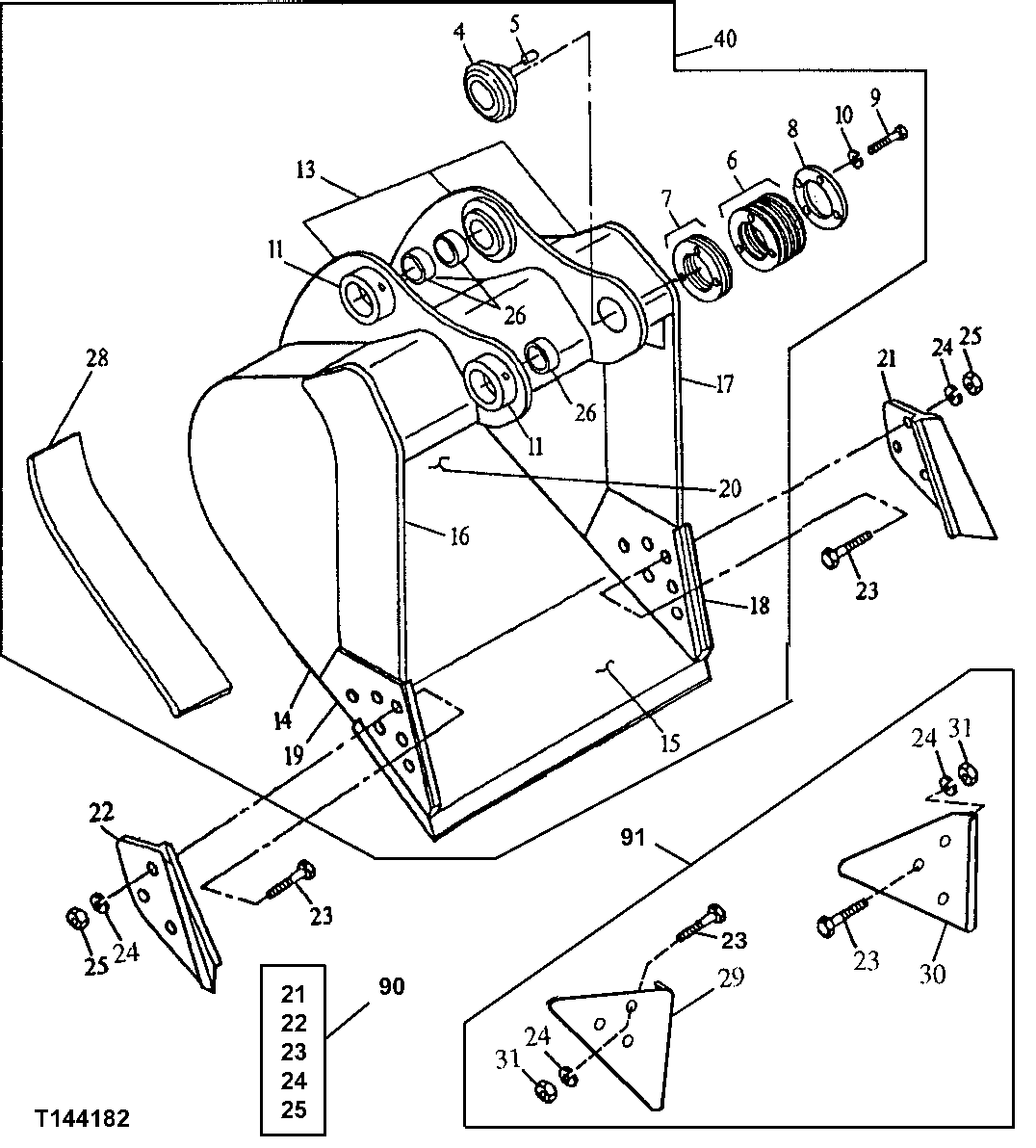

GENERAL PURPOSE BUCKET FOR USE WITH SHORT ARM (ALSO ORDER BUCKET TEETH)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	3038818	1	Boss	(SUB FOR AT131625)
5	4179110	2	Pin	(SUB FOR TH103520)
6	AT131816	7	Washer	(1 MM)
7	4207194	2	Shim	(SUB FOR <service-part qty="1">AT131815</service-part>)(.5 MM)
8	AT131814	1	Plate	-
9	19H2706	4	Cap Screw	5/8" X 2"
10	12H294	4	Lock Washer	5/8"
11	AT128461	2	Bushing	-
13	CF609726	1	Pivot	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Bucket Ear Blank Assembly
14	300324	2	Plate	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right and Left Side
15	AT159362	1	Cutting Edge	(CTL)
16	300327	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Right Side Cutter
17	300328	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Upper Left Side Cutter
18	311080	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Left Side Cutter Insert
19	311079	1	Vertical Cutter	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Right Side Cutter Insert
20	611803	1	Moldboard	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.)
21	-	1	Part 17	(SUB AT131080)
22	-	1	Part 18	(SUB AT131080)
23	09H1770	6	Bolt	7/8" X 2-1/2"
24	12H245	6	Lock Washer	7/8"
25	14H1077	6	Nut	7/8"
26	4205109	3	Bushing	(SUB FOR AT131768)
28	309972	2	Bar	(JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) Wear
29	-	1	Part 24	Wear, (SUB AT167874)
30	-	1	Part 25	Wear, (SUB AT167874)
31	14H1044	6	Nut	7/8"
39	T145372	1	Label	(NLA)
40	-	1	Part 28	84 in., 5.0 cu. yd., (AT163674 NLA), Available Tooth Assemblies On Separate Page Requires 7 Teeth For Use With 9 ft 6 in. Short Arm Only, (INCLUDES T145372)
90	-	1	Part 29	(AT131080 NLA), Side Cutter Kit
91	-	1	Part 30	( AT167874 NLA), Edge Protector

GENERAL PURPOSE BUCKET FOR USE WITH SHORT ARM (ALSO ORDER BUCKET TEETH)

Нет текстового описания
