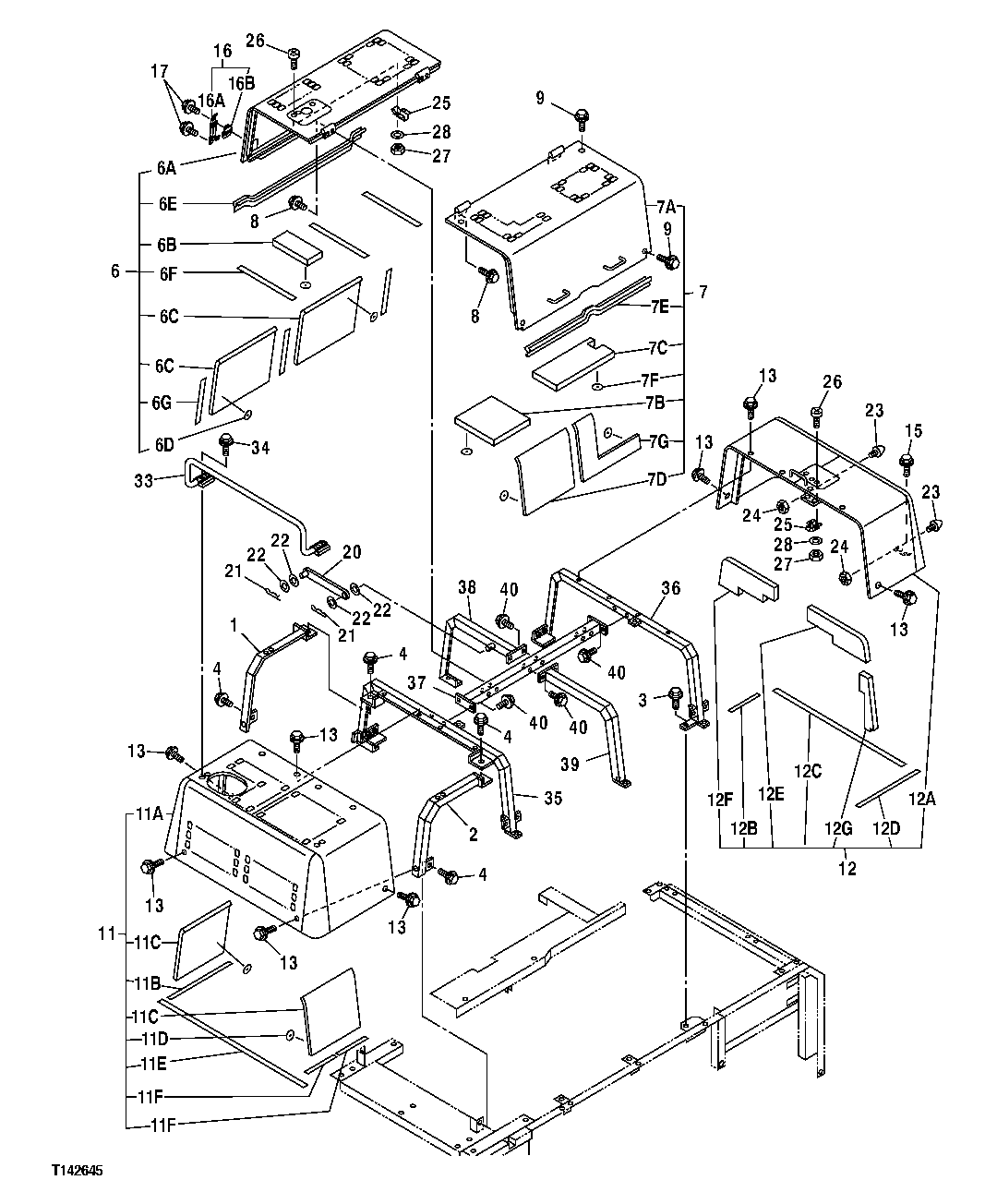

ENGINE COVER (CONTINUED) (SN -091878)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
13	19M7403	14	Cap Screw	M12 X 35
13	12M7058	14	Lock Washer	12 mm, (SUB FOR 12M7067)
13	24H1748	14	Washer	1/2" X 1-1/4" X 0.105"
15	19M7403	4	Cap Screw	M12 X 35
15	12M7058	4	Lock Washer	12 mm, (SUB FOR 12M7067)
15	24H1748	4	Washer	1/2" X 1-1/4" X 0.105"
16	-	2	Part 7	( AT131937 NLA)
17	19M7881	8	Screw	M8 X 20
20	9757458	1	Latch	(SUB FOR TH9757458)
21	M40461	2	Pin	-
22	J217085	4	Washer	(SUB FOR THJ217085)
23	4204586	2	Bumper	(SUB FOR TH108668)
24	14M7274	2	Nut	M10
25	4372725	2	Stop	(SUB FOR TH4372725)
26	12H315	4	Lock Washer	0.164"
26	24M7117	4	Washer	4.300 X 9 X 0.800 mm
26	21M7396	4	Screw	M4 X 10
26	-	4	Part 17	(SUB FOR AT156973)( J460410 NLA)
27	14M7139	4	Nut	M4, (SUB FOR 14M7100)
28	24M7117	4	Washer	4.300 X 9 X 0.800 mm
33	8086634	1	Handrail	(SUB FOR TH8086634)
34	19M7753	4	Cap Screw	M12 X 70, (SUB FOR AT200007 OR J021270 ) (USE WITH 12M7067 AND 24M7043)
34	12M7067	4	Lock Washer	12 mm
34	24M7043	4	Washer	12 X 25 X 3 mm
35	7041572	1	Support	(SUB FOR TH7041572)
36	7041573	1	Support	(SUB FOR TH7041573)
37	8086525	1	Support	(SUB FOR TH8086525)
38	8086523	1	Support	(SUB FOR TH8086523)
39	8086524	1	Support	(SUB FOR TH8086524)
40	24M7047	8	Washer	13 X 24 X 2.500 mm
40	12H301	8	Lock Washer	1/2"
40	19M7403	8	Cap Screw	M12 X 35
16A	3074568	1	Catch	(SUB FOR AT131654)
16B	3021131	1	Anchor	(SUB FOR TH102247)

ENGINE COVER (CONTINUED) (SN -091878)
