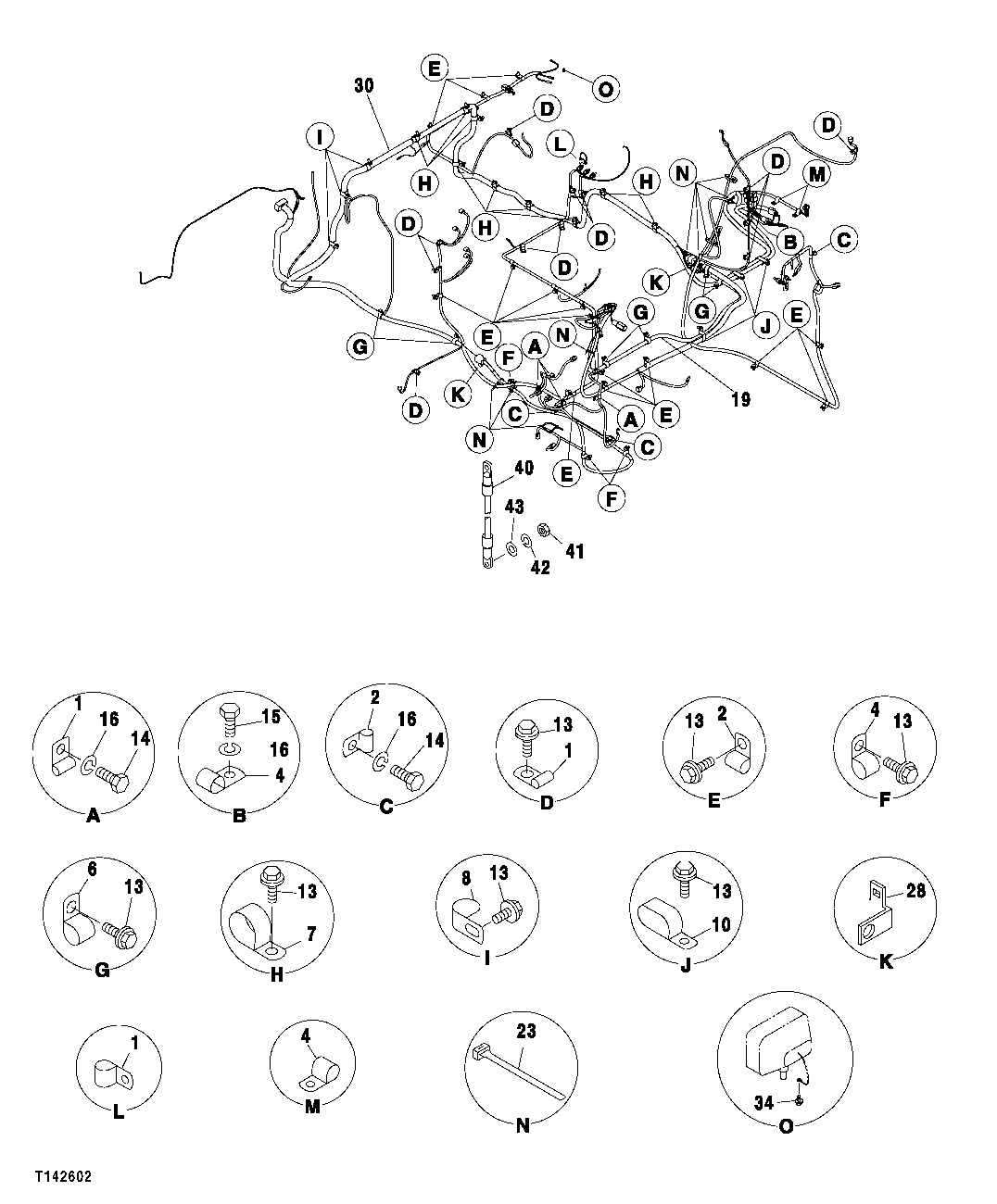

ELECTRICAL COMPONENTS (WIRE HARNESSES AND CLAMPING)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4190261	17	Clip	(SUB FOR TH109649)
2	4190275	18	Clamp	(SUB FOR TH108598)
4	T28949	6	Clamp	(SUB FOR TH108460 OR 4190273)
6	R72659	6	Clamp	(SUB FOR AT122384 OR 4235654)
7	XCL-19	9	Hose Clamp	(SUB FOR TH108459 OR 4192035)
8	AT121321	3	Hose Clamp	-
10	R50454	3	Clamp	(SUB FOR TH109445 OR 4192034)
13	19M8761	53	Screw	M10 X 22
13	12M7058	53	Lock Washer	12 mm, (SUB FOR 12M7067)
14	19M8451	7	Cap Screw	M10 X 14
15	19M7938	1	Cap Screw	M10 X 20
16	12M7066	8	Lock Washer	10 mm
19	4486995	1	Wiring Harness	3200 mm long, Engine, (SUB FOR TH4461964)
23	H77698	9	Tie Band	-
28	4418301	2	Bracket	(SUB FOR TH4418301)
30	4467347	1	Wiring Harness	Main (SUB FOR <service-part qty="1">TH4467347</service-part> (SEE DTAC SOLUTION FOR REPAIR KIT AND CONNECTORS)), SUB FOR TH4467347
30	4382073	1	Switch	Power Limit Sensor Not Illustrated
30	4374532	1	Diode	(NOT ILLUSTRATED) (COMPONENT OF MAIN WIRE HARNESS) (PLASTIC CONNECTOR CONTAINS 5 DIODES) (1-KEYSWITCH, 1-SWING STOP CUSHION SOLENOID, 1-GRIP SOLENOID, 1-FUEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMENT)
30	4315324	1	Link	(NOT ILLUSTRATED) (FUSIBLE LINK) (COMPONENT OF MAIN WIRE HARNESS) (LOCATED NEAR FUEL SHUT-OFF RELAY) (75 AMP)
30	4315323	1	Fuse	(NOT ILLUSTRATED) (FUSIBLE LINK) (COMPONENT OF MAIN WIRE HARNESS) (LOCATED NEAR FUEL SHUT-OFF RELAY) (45 AMP)
34	19M7923	1	Cap Screw	M6 X 12
34	12M7006	1	Lock Washer	6 mm
34	24M7054	1	Washer	6.400 X 12 X 1.600 mm
40	4461965	1	Wiring Harness	Starter Ground Cable
41	14M7274	1	Nut	M10
42	12M7066	1	Lock Washer	10 mm
43	24M7028	1	Washer	10.500 X 20 X 2 mm
30A	0005726	1	Wiring Harness	Main Not Illustrated
30B	2054110	1	Wiring Harness	Pump Not Illustrated
30C	2054111	1	Wiring Harness	Alternator Not Illustrated
30D	4486995	1	Wiring Harness	Not Illustrated, (SUB FOR 4461964)

ELECTRICAL COMPONENTS (WIRE HARNESSES AND CLAMPING)
