Counterweight Removal Pilot Hydraulic Hoses

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4195759	1	Flow Control Hyd. Valve	SUB FOR AT132401
1	19M8655	2	Cap Screw	M10 X 55
1	12M7066	2	Lock Washer	10 mm
2	A852123	4	Adapter Fitting	INCLUDES M800650
2	M800650	4	Packing	-
3	A852423	2	Tee Fitting	SUB FOR THA852423
3	M800650	2	Packing	SUB FOR 957366
5	4436535	1	Sensor	SUB FOR TH4436535
6	A852333	1	Elbow Fitting	INCLUDES CH11570, SUB FOR TH101047 OR 4154671
6	CH11570	1	O-Ring	-
7	4226388	1	Tee Fitting	INCLUDES M800650, SUB FOR AT205878
7	M800650	1	Packing	-
8	4436254	1	Hydraulic Hose	SUB FOR TH4436254
9	4457508	1	Hydraulic Hose	SUB FOR TH4457508
10	4457505	1	Hydraulic Hose	SUB FOR TH4457505
11	4457503	1	Hydraulic Hose	SUB FOR TH4457503
12	4443902	1	Hydraulic Hose	SUB FOR TH4457509, 4457509 OR 4443896
13	4457510	1	Hydraulic Hose	SUB FOR TH4457510
15	T32854	1	Clamp	-
16	XCL-29	1	Hose Clamp	SUB FOR TH110522 OR 4193848
17	AT121321	1	Hose Clamp	-
18	19M7938	1	Cap Screw	M10 X 20
18	12M7066	1	Lock Washer	10 mm
20	4456689	1	Wiring Harness	SUB FOR TH4456689
21	4190261	2	Clip	SUB FOR TH109649
22	19M8761	3	Screw	M10 X 22
22	12M7058	3	Lock Washer	12 mm, SUB FOR 12M7067
24	4202564	1	Adapter Fitting	-
26	4602634	1	Bracket	SUB FOR 4257159
27	H77698	1	Tie Band	-

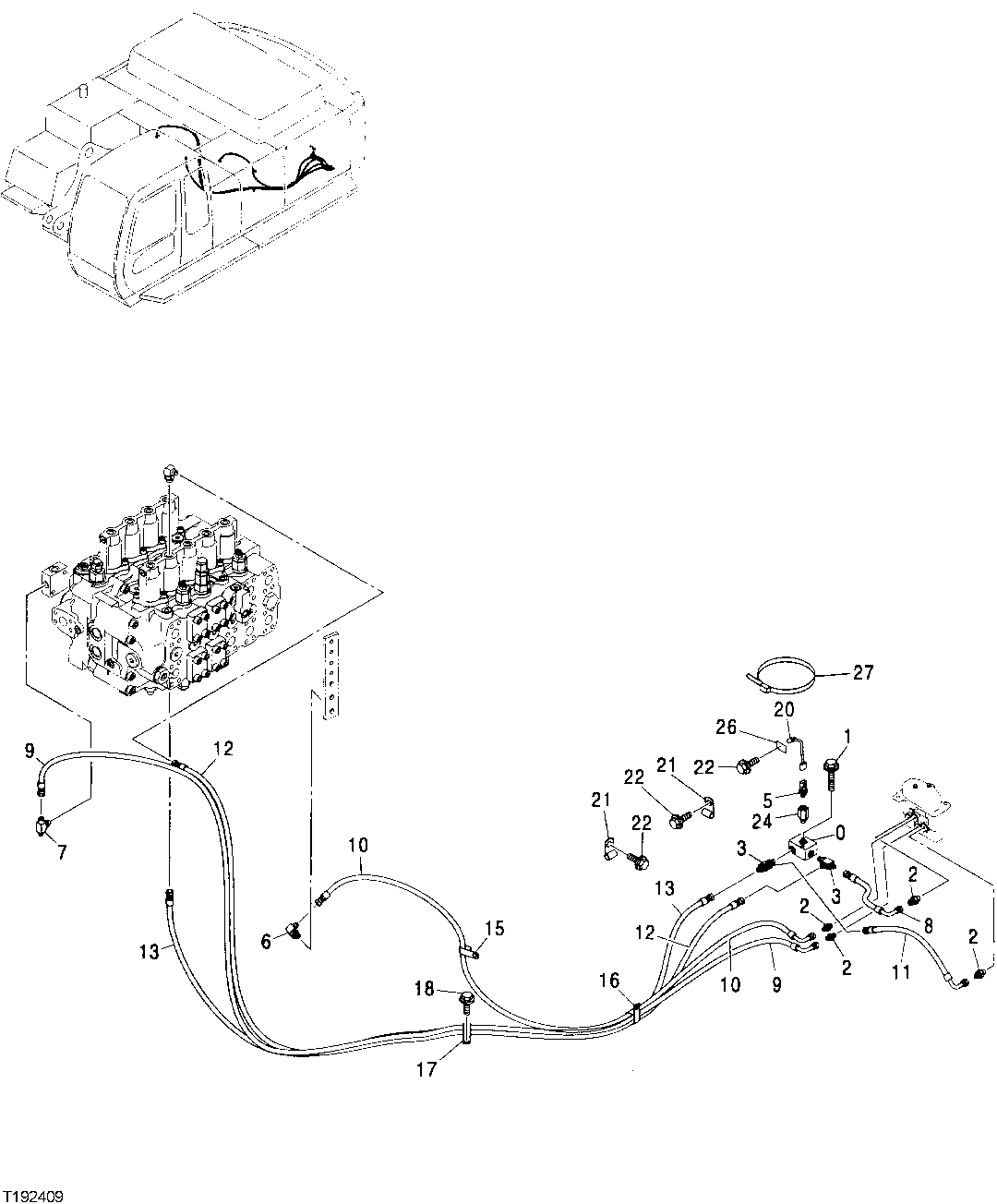

Counterweight Removal Pilot Hydraulic Hoses

Нет текстового описания
