CAB COMPONENTS (TOP, LEFT, AND REAR)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9205229	1	Cab	Contains All Items On This Page - Additional Components Listed On Separate Pages
1	-	1	Part 2	( TH4466371 NLA)
2	4414857	2	Nut	-
3	19M8425	1	Cap Screw	M6 X 16
3	12M7006	1	Lock Washer	6 mm
3	24H1287	1	Washer	9/32" X 5/8" X 0.065"
4	4474300	1	Pipe	-
5	4456177	1	Cover	-
6	-	1	Part 9	( 4602580 NLA), Bronze, (SUB 4602567)
6	4602567	1	Windowpane	Green
7	4400079	1	Seal	(SUB FOR AT218190)
8	4456178	1	Cover	-
9	4602569R	1	Windowpane	(SUB FOR 4448314)
10	4456179	2	Bolt	-
11	4456181	2	Bracket	-
12	12M7066	4	Lock Washer	10 mm
12	24M7028	4	Washer	10.500 X 20 X 2 mm
12	19M7402	4	Cap Screw	M10 X 25
13	4456182	1	Isolator	-
14	4456183	1	Isolator	-
15	4456184	1	Isolator	-
16	4372224	5	Screw With Washer	(SUB FOR AT214310)
17	4456185	1	Nut	-
19	4448319	1	Isolator	-
22	4453667	1	Isolator	(SUB FOR TH4453667)
25	4456175	2	Isolator	(SUB FOR TH4456175)
31	4453663	1	Handrail	(SUB FOR TH4453663)(UNITS BUILT BEFORE SEPTEMBER 2002)
31	4668617	1	Handrail	(UNITS BUILT SEPTEMBER 2002 AND AFTER)
37	21M7420	2	Screw	M6 X 16
37	12M7006	2	Lock Washer	6 mm
37	24M7293	2	Washer	6.500 X 13 X 1.600 mm
41	4474036	2	Stop	-
45	4369568	1	Grommet	(SUB FOR AT214078)
47	4456654	1	Cover	(SUB FOR TH4456654)
55	4369675	2	Isolator	(SUB FOR AT214173)
56	19M7550	2	Cap Screw	M10 X 35
56	24H1305	2	Washer	13/32" X 13/16" X 0.065"
56	12M7066	2	Lock Washer	10 mm
59	4320163	2	Screw	(SUB FOR AT200584)
60	19M7662	2	Cap Screw	M10 X 30, (UNITS BUILT SEPTEMBER 2002 AND AFTER)
60	-	2	Part 45	( J271030 NLA) (UNITS BUILT SEPTEMBER 2002 AND AFTER)
60	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J922010)(UNITS BUILT BEFORE SEPTEMBER 2002)
60	19M7662	2	Cap Screw	M10 X 30, (SUB FOR J901030)(UNITS BUILT BEFORE SEPTEMBER 2002)
60	-	2	Part 42	( AT214305 OR 4372219 NLA) (UNITS BUILT BEFORE SEPTEMBER 2002)
60	24M7346	2	Washer	11 X 20 X 2 mm, (UNITS BUILT SEPTEMBER 2002 AND AFTER)
71	4369627	1	Striker	(SUB FOR AT214129)
75	4473966	1	Bushing	-
76	-	1	Part 50	( 4473961 NLA), (SUB 4466366J)
77	4473852	1	Bolt	-
80	4453672	1	Isolator	Not Illustrated
93	4453665	1	Sheet	Head Liner, (SUB FOR TH4453665)
95	4453666	14	Clip	(SUB FOR TH4453666)
26A	-	1	Part 27	( 4473960 NLA), (SUB 4466366J)
26B	4466366J	1	Handrail	(SUB FOR 4466366)

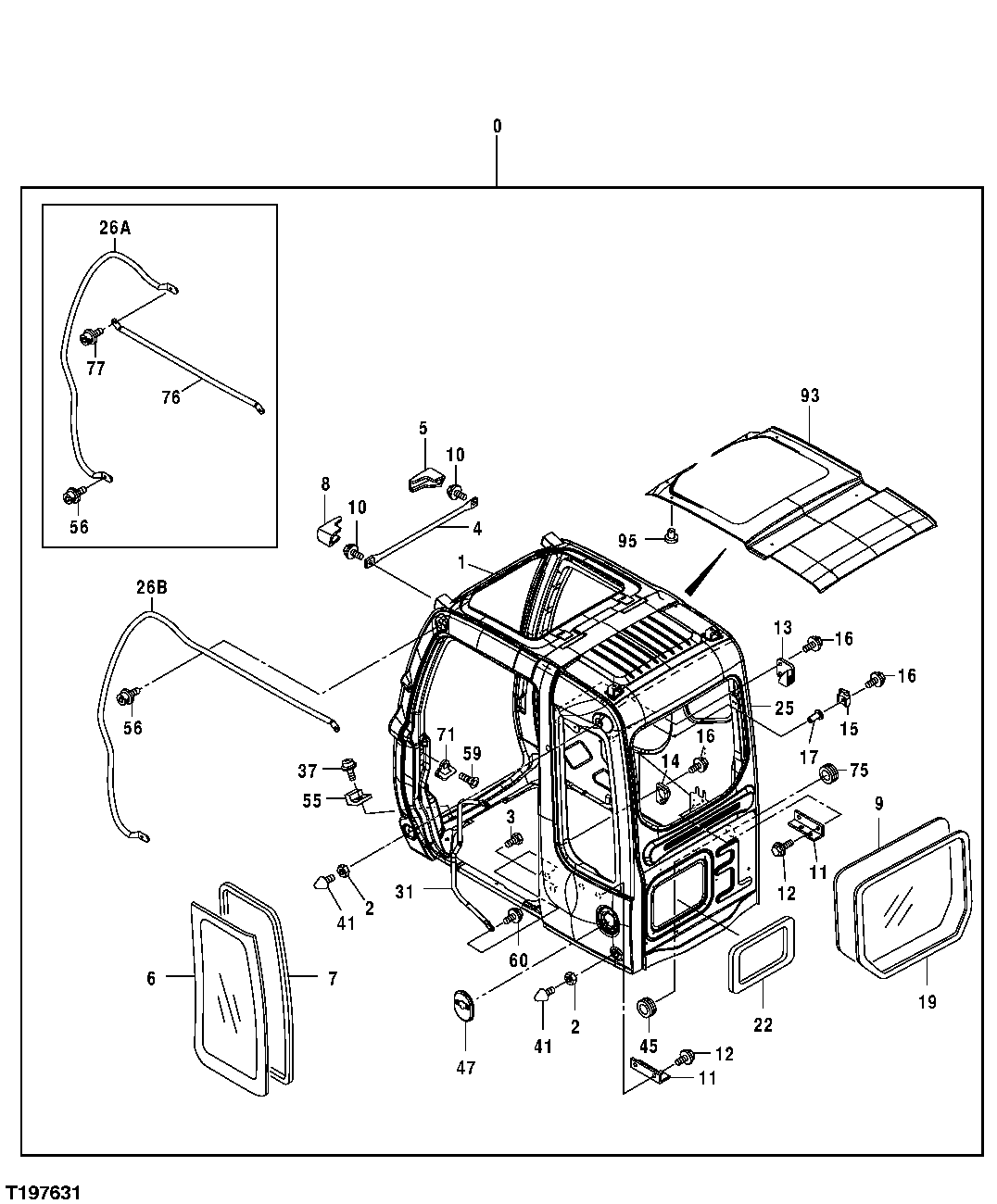

CAB COMPONENTS (TOP, LEFT, AND REAR)
