Bucket Cylinder, 4.9 M Long Arm, Units Built Before December 2005

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9264721JEX	1	Hydraulic Cylinder Reman	REMAN; AT182461 NLA
1	4646017J	1	Hydraulic Cylinder Barrel	SUB FOR TH111599 OR 9121231
1	-	1	Part 4	PG201316 NLA, ORDER 4646017J, REMAN
2	4645920J	1	Hydraulic Cylinder Rod	SUB FOR 7027219
3	1022645	1	Hydraulic Cylinder Cap	SUB FOR AT181791
4	4369508	1	Ring	Retaining, SUB FOR AT217983
5	19M8630	8	Screw	M24 X 80
6	AT264294	1	Seal	SUB FOR AT217969, 4348201
7	AT264408	1	Seal	(A) SUB FOR TH111216
8	AT264399	1	Back-Up Ring	(A) (NOT ILLUSTRATED)
9	-	1	Part 13	-
10	AT264406	1	O-Ring	(A) (NOT ILLUSTRATED)
11	AT264407	1	Seal	(A) (NOT ILLUSTRATED)
12	AT264274	1	O-Ring	(A) SUB FOR AT159582, 4267138
13	4389326	1	Ring	(A) SUB FOR TH111217, AT201003, AT264409
14	4264982	1	Snap Ring	SUB FOR AT131254
15	AT264239	1	Bushing	(A) SUB FOR AT131420
16	4194625	1	Ring	SUB FOR TH111275
17	AT280433	1	Back-Up Ring	(A) (NOT ILLUSTRATED)
18	3080835	1	Piston	SUB FOR TH111164 AND 3036603
19	AT264400	2	Ring	(A) SUB FOR TH110062
20	AT264401	2	Wear Ring	(A) SUB FOR TH110063
21	AT264402	1	Ring	(A) SUB FOR TH110065
23	3039348	1	Nut	SUB FOR TH111191
24	4201806	1	Set Screw	M12 X 20, SUB FOR TH110066
35	T116334	2	Lubrication Fitting	-
36	3046126	1	Flange	SUB FOR AT128499
37	A853388	1	Elbow Fitting	SUB FOR TH108325 OR 4198799
38	8044732	1	Tube	SUB FOR AT128498
39	19M8341	6	Screw	M12 X 45
40	19M8444	2	Screw	M12 X 60
41	AT264324	2	O-Ring	(A) SUB FOR TH100044
42	3043349	2	Clamp	SUB FOR TH111883
43	8074320	2	Clamp	SUB FOR TH111988
44	12M7066	4	Lock Washer	10 mm
44	19M7550	4	Cap Screw	M10 X 35
45	4174241	2	Clamp	SUB FOR TH110059
46	19M7402	4	Cap Screw	M10 X 25
47	AT264430	1	Seal Kit	INCLUDES PARTS MARKED (A)
1A	3031789	1	Bushing	SUB FOR TH110072
2A	3036659	1	Bushing	SUB FOR TH111167
37A	TH101926	1	O-Ring	28.700 X 3.500 mm (1.130" X 0.138")

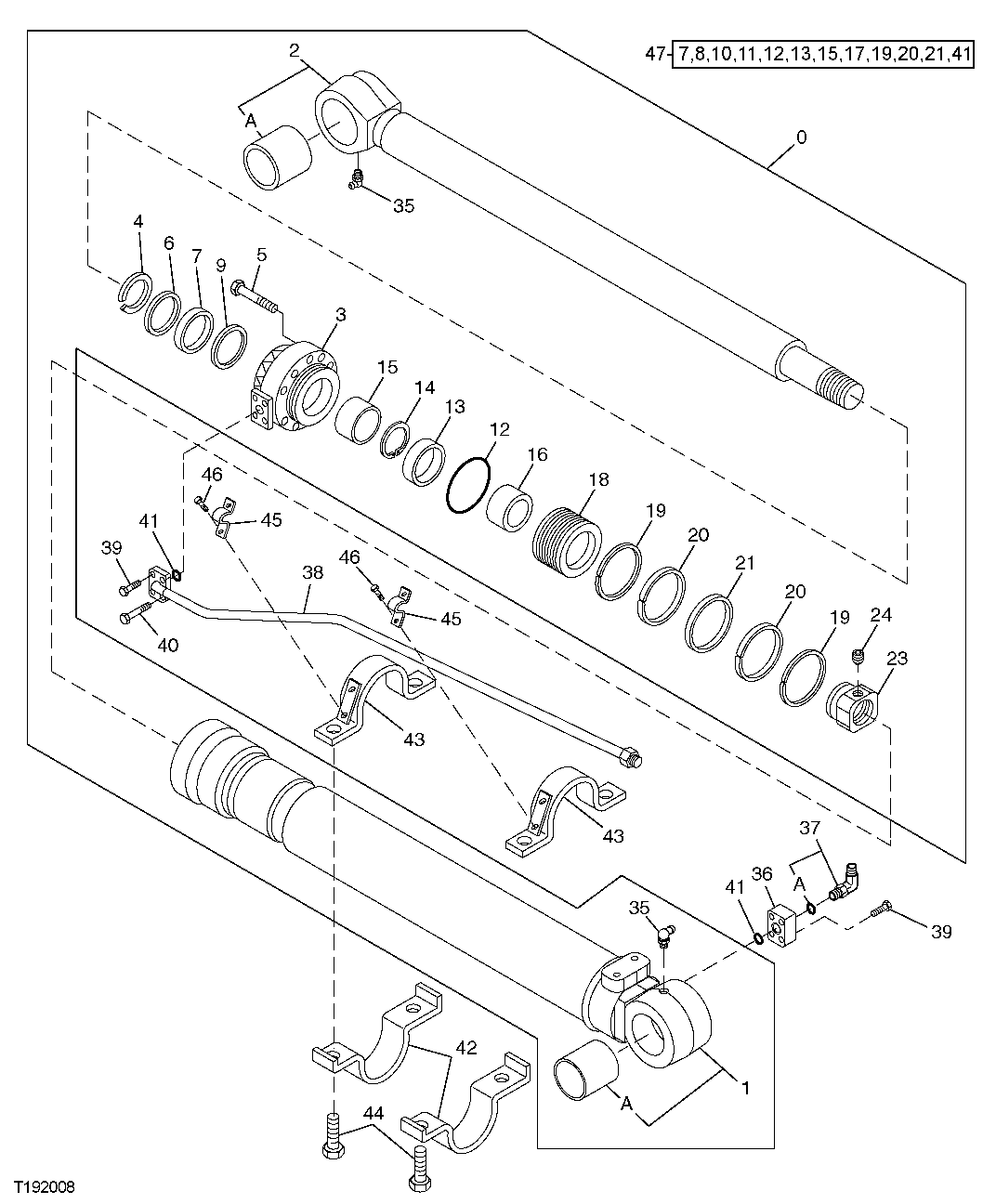

Bucket Cylinder, 4.9 M Long Arm, Units Built Before December 2005
