BOOM CYLINDER LOAD LOWERING VALVE COMPONENTS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 1	( TH0663601 NLA)
1	4473857	2	Flow Control Hyd. Valve	(SUB FOR 4358534)
3	0658002	1	Cover	(SUB FOR AT217063)
4	CH15107	1	Packing	-
5	0658003	1	Compression Spring	(SUB FOR AT175923)
6	0658004	1	Compression Spring	(SUB FOR AT175924)
7	0343507	1	Washer	(SUB FOR AT175925)
8	0658005	1	Retainer	(SUB FOR AT175926)
9	19M8439	4	Screw	M8 X 25
10	0658006	2	Wire	(SUB FOR AT175927)
11	0658007	1	Plug	(SUB FOR AT175928)
12	4483073	1	Pressure Relief Valve	(SUB FOR 0663901)
13	-	1	Part 13	(NA)
14	-	1	Part 14	(NA)
15	-	1	Part 15	(NA)
16	-	1	Part 16	(NA)
17	CH17886	1	Packing	-
18	-	1	Part 18	(NA)
19	-	1	Part 19	(NA)
20	-	1	Part 20	(NA)
21	-	1	Part 21	(NA)
22	-	1	Part 22	(NA)
23	-	1	Part 23	(NA)
24	-	1	Part 24	(NA)
25	-	1	Part 25	(NA)
26	-	1	Part 26	(NA)
27	-	1	Part 27	(NA)
28	4038533	1	Back-Up Ring	(SUB FOR TH100050)
29	CH11570	1	O-Ring	-
30	0658008	3	Fitting Plug	(SUB FOR AT175929)
31	TH101926	3	O-Ring	-
32	0343510	1	Compression Spring	(SUB FOR AT175875)
33	0343505	1	Plunger	(SUB FOR AT175876)
34	0223202	1	Compression Spring	(SUB FOR TH106368)
35	0343504	1	Plunger	(SUB FOR AT175932)
36	M800650	1	Packing	-
37	0314205	1	Plug	(SUB FOR AT120949 OR TH0314205)
38	0343611	1	Fitting Plug	(SUB FOR AT175933)
39	4506418	1	O-Ring	(SUB FOR U46489)
40	15M7036	2	Drain Plug	(SUB FOR TH109285 OR 0309805)
41	CH11570	2	O-Ring	-
42	-	2	Part 42	( TH105699 NLA)
44	0343514	6	Fitting Plug	(SUB FOR AT175880)

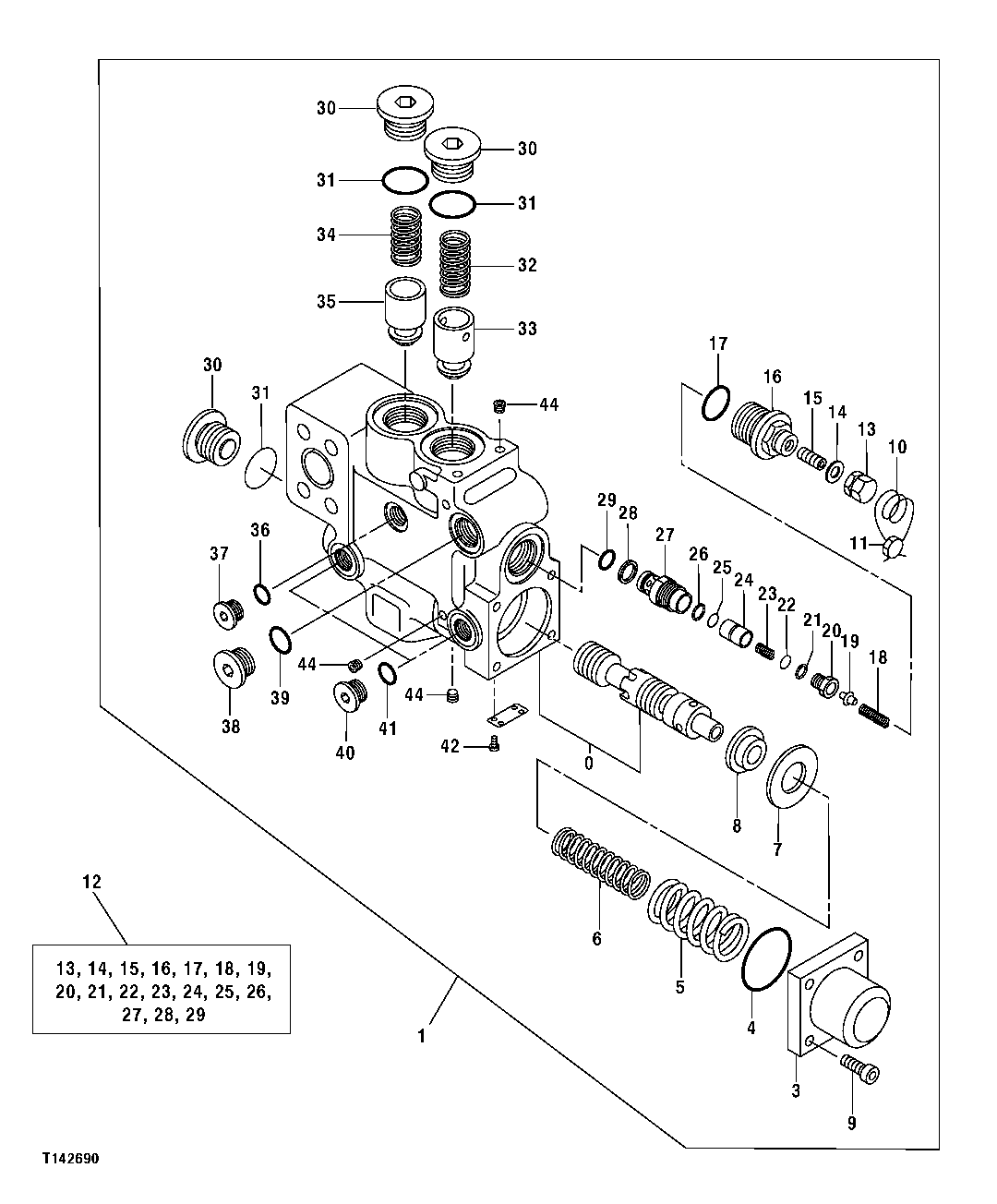

BOOM CYLINDER LOAD LOWERING VALVE COMPONENTS
