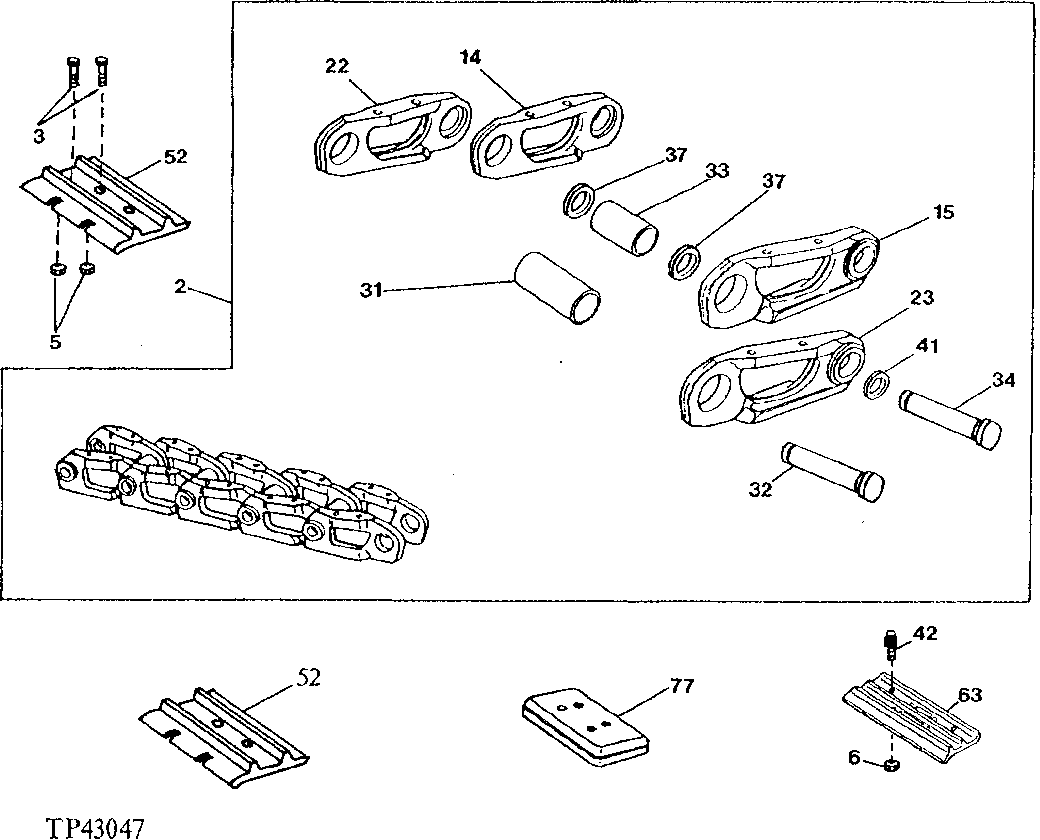

UNSEALED CHAIN, 1/2" WITH MASTER PIN AND NON-STRUTTED LINKS (37) (SERIAL NO. -216302) [01I08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(N/A, ORDER 9/16" SEALED CHAIN WITH SHOES) (USE WITH T153045 OR T175962 SPROCKET)
2	-	1	Part 2	(37L) (SEE SEC. 060, PAGE 2C FOR 1/2" REPLACEMENT SEALED CHAIN WITHOUT SHOES) (USE WITH T153045 OR T175962 SPROCKET)
3	T74183	148	BOLT	1/2" X 1.732"
3	19H3012	148	Cap Screw	1/2" X 2-3/8", (USE WITH RUBBER SHOE)
5	T74184	148	NUT	1/2"
6	B30434	74	Lock Nut	5/8", (USE WITH SHOW STUD) (SUB FOR M1665T)
14	T31638AM	36	NON-STRUTTED LINK-RH	(SUB FOR T31638)
15	T31637AM	36	NON-STRUTTED LINK-RH	(SUB FOR T31637)
22	T20607	1	NON-STRUTTED LINK-LH	-
23	T20606	1	MASTER LINK-RH	-
31	T32073	36	BUSHING	-
32	T23888	36	TRACK PIN	-
33	T23889	1	MASTER TRACK BUSHING	(USED FOR MASTER LINK OR BUSHING REPLACEMENT IN CENTER OF TRACK CHAIN)
34	T20600	1	MASTER TRACK PIN	(SUB AT56694 MASTER PIN KIT)
37	R36521	2	WASHER	(USED FOR LINK OR BUSHING REPLACEMENT IN CENTER OF TRACK CHAIN)
41	B1402R	1	SNAP RING	(SUB FOR F215R)
42	T29657	74	STUD	5/8" X 2.620", SNOW (FOR 3 BAR SHOES)
52	T106960	37	DOUBLE BAR SHOE	355MM (14")
63	T75588	37	OPEN CENTER 3 BAR SHOE	355MM (14") (SUB FOR T20613)
77	-	37	Part 20	330MM (13"), AT125940 NO LONGER AVAILABLE, ORDER DIRECTLY FROM SUPERIOR TIRE AND RUBBER, WARREN, PENNSYLVANIA 16365, PHONE 800-289-1456, (SUB FOR AT22880)

UNSEALED CHAIN, 1/2" WITH MASTER PIN AND NON-STRUTTED LINKS (37) (SERIAL NO. -216302) [01I08]
