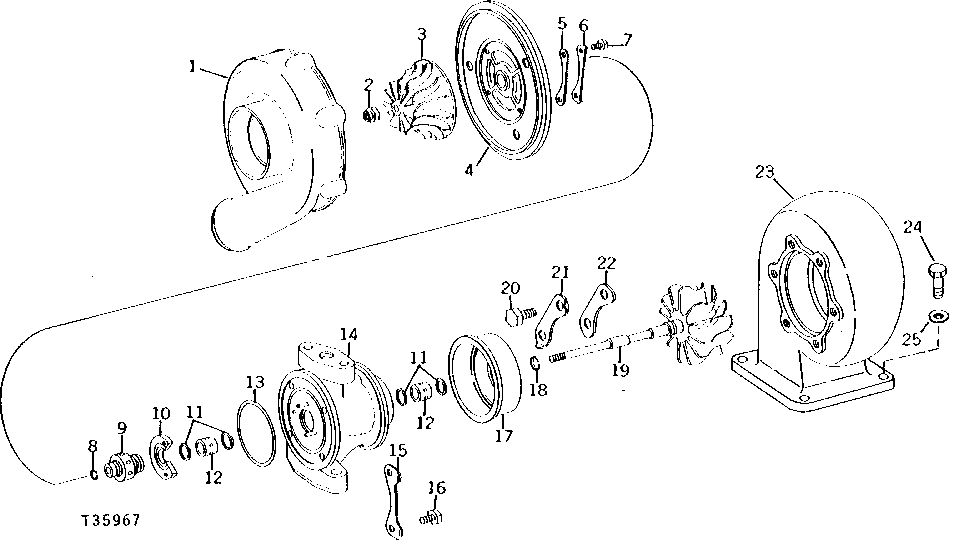

TURBOCHARGER (AIRESEARCH) (SERIAL NO. 250962- ) [01C03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R58610	1	HOUSING	COMPRESSOR
2	R43817	1	LOCK NUT	(A)
3	R58609	1	IMPELLER	(A)
4	AR54934	1	COVER	(A)
5	R48709	3	CLAMP	-
6	R48710	3	LOCK PLATE	-
7	19H2020	6	Cap Screw	5/16" X 1/2"
8	R43806	1	PISTON RING	(A)
9	R43801	1	THRUST BEARING	(A)
10	R43808	1	BEARING	(A)
11	R43816	4	Snap Ring	(A)
12	R43803	2	BEARING	(A)
12	-	2	Part 13	( R50784 NO LONGER AVAILABLE) 0.13 MM (.005") UNDERSIZE
12	R50785	2	BEARING	0.25 MM (.010") UNDERSIZE
13	R43805	1	O-RING	(A)
14	AR63781	1	HOUSING	(A) CENTER
15	R43986	2	LOCK PLATE	(A)
16	19H1919	4	Cap Screw	(A) 1/4" X 5/8"
17	R43804	1	SHROUD	(A)
18	R55024	1	PISTON RING	(A)
19	AR51988	1	TURBINE	(A) WITH SHAFT
20	R43819	6	CAP SCREW	-
21	R43815	3	LOCK PLATE	-
22	R43821	3	CLAMP	-
23	R58611	1	HOUSING	TURBINE
24	19H3217	4	Cap Screw	3/8" X 1-3/4"
25	24H1305	4	Washer	13/32" X 13/16" X 0.065"
..	AR70439	1	TURBOCHARGER	(REMANUFACTURED)
..	RE30029	1	HOUSING	(REMANUFACTURED) (SUB FOR AR70440) CENTER, WITH ROTATING PARTS
