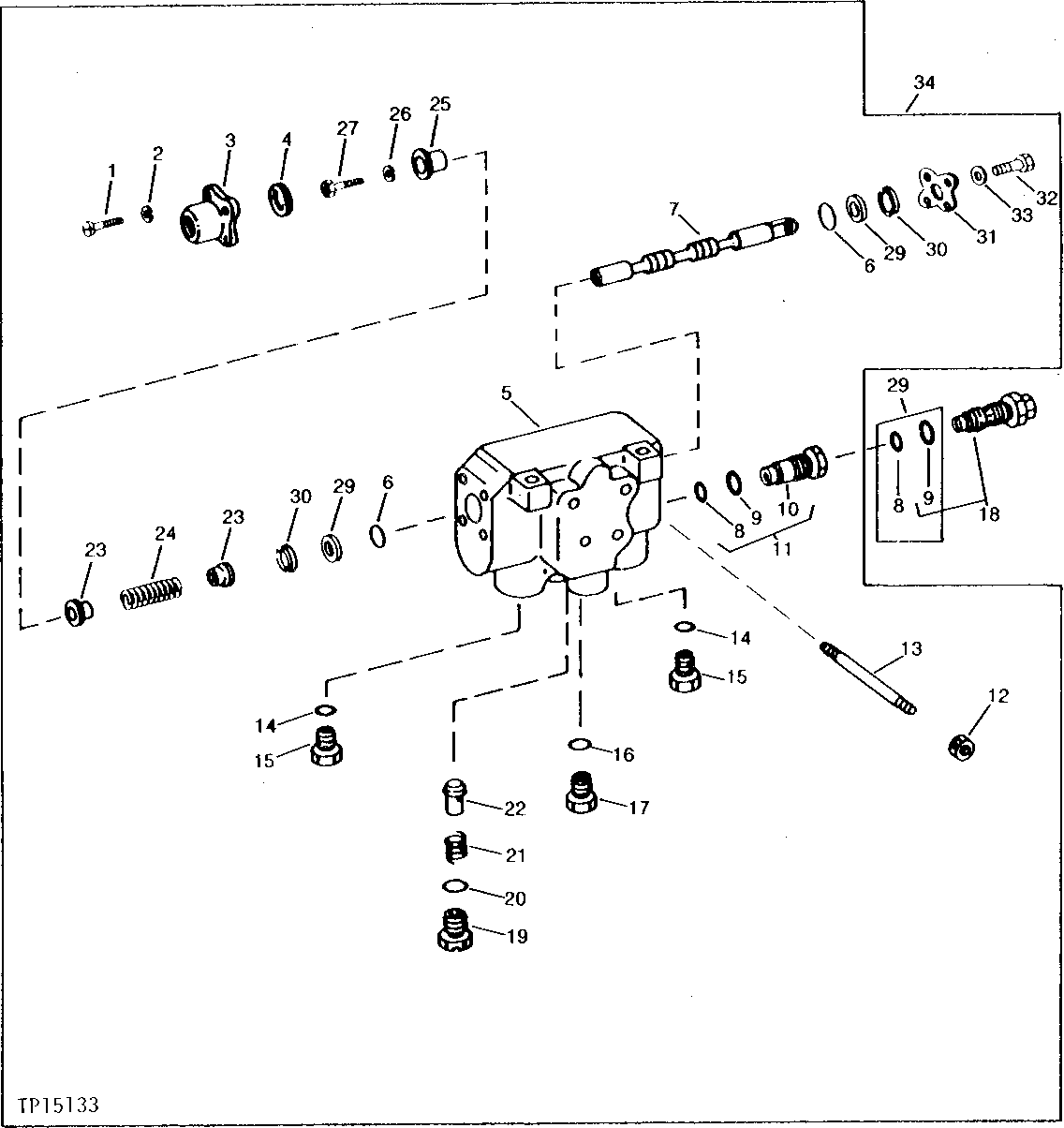

REPLACEMENT LOADER CONTROL VALVE AUXILIARY SECTION (WITH EXTERNAL SPOOL SEALS) [02F01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1174	4	SCREW	1/4" X 1"
2	12H302	4	Lock Washer	1/4"
3	T75985	1	COVER	-
4	U17387	1	DIAPHRAGM	-
5	-	1	Part 5	(SUB AT104191)
6	R495R	2	O-Ring	(SUB FOR T57248)
7	-	1	Part 7	(SUB AT104191)
8	T44948	2	O-Ring	-
9	U15242	2	O-RING	-
10	-	1	Part 10	WITHOUT MULTI-PURPOSE BUCKET OR RIPPER, (SUB AT53846)
11	AT53846	1	FITTING PLUG	-
12	U13184	4	Lock Nut	-
13	U17392	4	STUD	-
14	U12547	2	O-Ring	(SUB FOR (2) F3171R)
15	R27175	2	Drain Plug	-
16	R29936	1	O-Ring	-
17	U17384	1	DRAIN PLUG	-
18	AU14302	1	PRESSURE RELIEF VALVE	WITH MULTI-PURPOSE BUCKET
19	U17393	1	FITTING	-
20	U17409	1	O-Ring	-
21	U17406	1	SPRING	-
22	U17396	1	POPPET	-
23	T75987	2	PLUG	-
24	T34974	1	SPRING	-
25	U17391	1	ROUND RETAINER	-
26	U11298	1	LOCK WASHER	-
27	19H3295	1	Screw	HS, SAE 8, 3/8" X 3/4", (SUB FOR U40662)
28	AT56549	1	SEAL KIT	-
29	T75982	2	BACK-UP RING	-
30	T75976	2	WASHER	-
31	T106147	1	PLATE	(SUB FOR T75974)
32	19H2701	4	SCREW	1/4" X 5/8"
33	12H302	4	Lock Washer	1/4"
34	AT104191	1	END PLATE	-

REPLACEMENT LOADER CONTROL VALVE AUXILIARY SECTION (WITH EXTERNAL SPOOL SEALS) [02F01]
