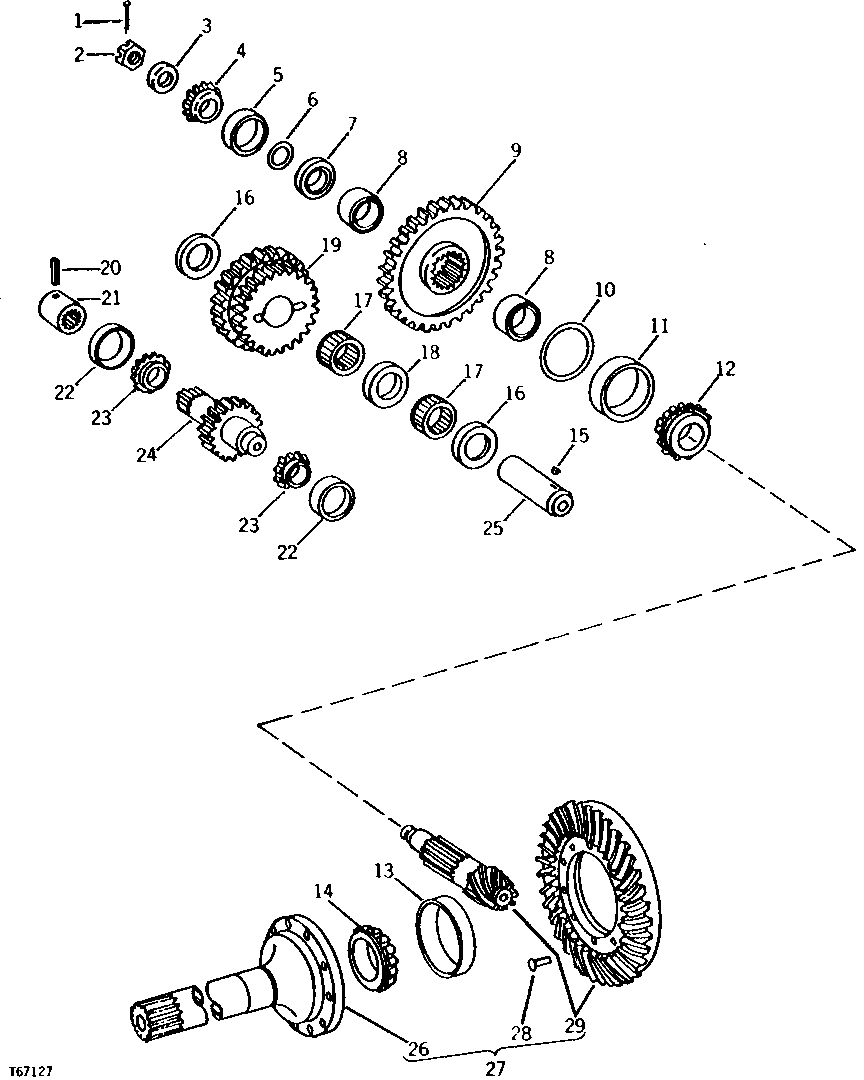

NO. 3325 POWER WINCH GEARS AND SHAFTS [01F20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7087	1	Cotter Pin	4 X 40 MM
2	14H875	1	Nut	7/8"
3	T19411	1	WASHER	-
4	JD8990	1	BEARING CONE	-
5	JD7415	1	Bearing Cup	-
6	M2059T	1	Shim	(SUB FOR T12388) 0.05 MM (.002")
6	-	1	Part 7	(A) ( M2057T NO LONGER AVAILABLE) (SUB FOR T12389) 0.13 MM (.005")
6	-	1	Part 8	(A) ( M2058T NO LONGER AVAILABLE) (SUB FOR T12390) 0.25 MM (.010")
7	T76238	1	SPACER	TAPERED, (SUB FOR T16392)
8	T16393	2	SPACER	-
9	T16390	1	GEAR	(42 TEETH)
10	-	1	Part 12	(B) ( M4260T NO LONGER AVAILABLE) 0.05 MM (.002")
10	-	1	Part 13	(B) ( M4261T NO LONGER AVAILABLE) 0.05 MM (.002")
10	-	1	Part 14	(B) ( M4262T NO LONGER AVAILABLE) 0.25 MM (.010")
11	JD8240	1	Bearing Cup	-
12	JD8907	1	BEARING CONE	-
13	JD7292	1	Bearing Cup	-
14	JD7242	1	Bearing Cone	-
15	26H77	1	Shaft Key	3/16" X 3/4"
16	T18056	2	WASHER	-
17	JD7939	2	CYLINDRICAL ROLLER BEARING	-
18	T16373	1	WASHER	-
19	T17547	1	GEAR	(42 TEETH)
20	34H385	1	Spring Pin	1/4" X 1-3/4"
21	T24774	1	SPLINED COUPLING	-
22	JD8230	2	Bearing Cup	-
23	JD8194	2	Bearing Cone	-
24	T16350	1	SHAFT	INPUT
25	T29779	1	PIN FASTENER	IDLER
26	T19770	1	DRIVE SHAFT	(SUB AT124357)
27	AT124355	1	RING GEAR	(SUB FOR AT33694) (MAIN DRIVE SHAFT, MARKED T50471, RING GEAR MARKED T50472) (47 TEETH)
27	AT124357	1	RING GEAR	(MAIN DRIVE SHAFT, MARKED T50473, RING GEAR MARKED T50472) (47 TEETH) (SUB FOR AT14858, THIS APPLICATION) (SUB FOR AT21052)
28	16H1592	10	RIVET	CTSK. HD., 7/16" X 1-3/4", (USE WITH AT124357)
28	17H91	10	RIVET	CTSK. HD., 1/2" X 1-5/8", (USE WITH AT124357 AND AT124355)
29	-	1	Part 35	(SUB AT124357 OR AT124355)
..	TY6333	1	Grease	(MULTI-PURPOSE 397G (14 OZ) (SUB FOR AT30408)
