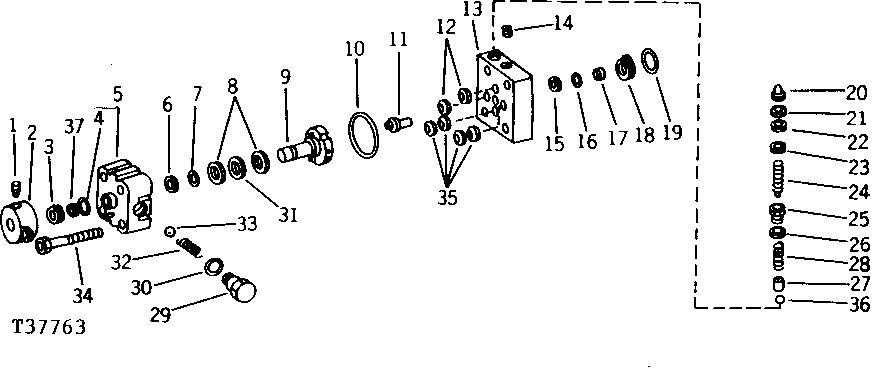

NO. 3325 POWER WINCH CONTROL VALVE [01F25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T35592	1	Set Screw	-
2	AT43468	1	HANDLE	-
3	T39364	1	SPRING	-
4	P50883	1	Ring	(A) (SUB FOR T35600)
5	AT43467	1	CAP	WITH O-RING, (SUB FOR AT38165)
6	U15414	1	Ring	(A) (SUB FOR T35591)
7	A3917R	1	O-Ring	(A)
8	T39363	2	Thrust Bearing Race	-
9	AT44146	1	ROTOR	AND SHAFT, (SUB FOR AT38164)
10	T35580	1	O-Ring	(A)
11	T39518	4	VALVE SEAT	-
12	T35582	2	Washer	CURVED
13	AT34594	1	HOUSING	-
14	U40054	2	Pipe Plug	(SUB FOR T35599) LEVEL-SEAL
15	T35583	4	BACK-UP RING	(A)
16	R10093	4	O-Ring	(A) (SUB FOR T35584)
17	T35585	4	RETAINER	-
18	T39362	4	COMPRESSION SPRING	CONE, COMPRESSION
19	P46051	5	O-Ring	(A)
20	T39360	1	CAP	-
21	14H786	1	Nut	1/4"
22	24H1287	1	Washer	9/32" X 5/8" X 0.065"
23	T24922	1	SEAL	(A)
24	T35598	1	SCREW	-
25	T35597	1	ADAPTER	-
26	R28782	1	O-Ring	(A) (SUB FOR T35577)
27	T39359	1	GUIDE	-
28	T35595	1	SPRING	-
29	T35579	2	PLUG	-
30	R28782	2	O-Ring	(A) (SUB FOR T35596)
31	JD9827	1	THRUST BEARING	(A)
32	T39361	2	SPRING	-
33	R42849	2	Ball	-
34	19H3152	4	SCREW	5/16" X 2-3/4"
35	T39536	4	Spring Washer	-
36	H836R	1	Ball	-
37	T44598	1	RETAINER	-
..	AT43466	1	HYD ACTUATED CONTROL VALVE	-
..	AT34598	1	SEAL KIT	REPAIR WINCH CONTROL VALVE

NO. 3325 POWER WINCH CONTROL VALVE [01F25]
