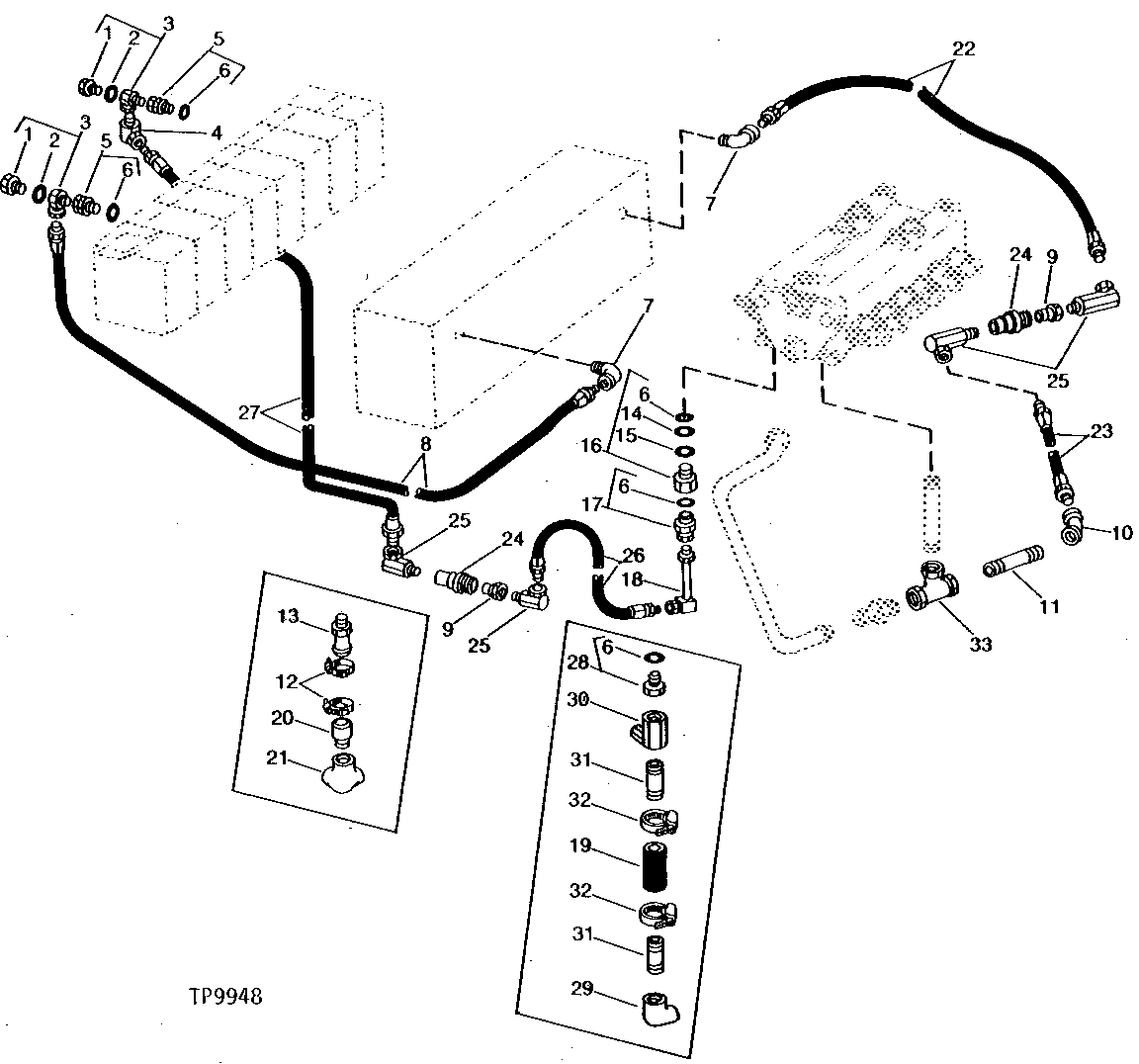

LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (9300 BACKHOE) [02I12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U13982	2	FITTING	-
2	U12547	2	O-Ring	-
3	AT33316	2	ADAPTER	90°
4	U11754	1	ELBOW FITTING	45°
5	AU13375	2	FITTING	(A)
6	R29936	5	O-Ring	-
7	15H213	2	Elbow Fitting	1", 90°
8	AT33318	1	HYDRAULIC HOSE - FABRICATE	914 MM LONG (1" X 36")
9	AT33970	2	HYDR. QUICK COUPLER PLUG	(A)
10	15H618	1	ELBOW FITTING	(A) 1" X 90°
11	29H346	1	THREADED NIPPLE	(A) 1" X 11"
12	AR21839	2	Clamp	-
13	AU14063	1	Hose Fitting	-
14	U15242	1	O-RING	-
15	U43313	1	BACK-UP RING	-
16	AT63185	1	PLUG	(A) (SUB FOR AT32456, THIS APPLICATION)
17	AU13375	1	FITTING	-
18	AT33615	1	LINE	(A)
19	L2033CU	1	HYDRAULIC HOSE	-
20	29H747	1	THREADED NIPPLE	1" X 3"
21	U17033	1	ELBOW FITTING	90°
22	AT40853	1	HYDRAULIC HOSE	457 MM LONG (1" X 18") (SUB AT62493)
22	AT62493	1	HYDRAULIC HOSE - FABRICATE	457 MM LONG (1" X 18")
23	AT36891	1	HYDRAULIC HOSE - FABRICATE	(A) 584 MM LONG (1" X 23")
24	AT39581	2	HYDR. QUICK COUPLER SOCKET	(A)
25	AR29459	4	UNION FITTING	(A) 90°
26	AU41178	1	HYDRAULIC HOSE - FABRICATE	(A) 1 168 MM LONG (1" X 46")
27	AT40854	1	HYDRAULIC HOSE - FABRICATE	736 MM LONG (1" X 29")
28	AU13375	1	FITTING	(A)
29	-	1	Part 30	(A) 1" X 90° ( 15H100 - NO LONGER AVAILABLE)
30	AT65819	1	FITTING	-
31	29H573	2	THREADED NIPPLE	(A) 1" X 1-1/2"
32	AR21999	2	Hose Clamp	(A) (SUB FOR AR21840)
33	15H535	1	TEE FITTING	1"
..	AT40855	1	MOUNTING PARTS	(SUB AT63406) (ALSO ORDER AT73390) (AT73390 NO LONGER AVAILABLE)
..	-	1	Part 36	(ALSO ORDER AT73390) ( AT73390 AND AT63406 - NO LONGER AVAILABLE)
..	-	1	Part 37	(ALSO ORDER AT73390) ( AT73390 AND AT63406 - NO LONGER AVAILABLE)
