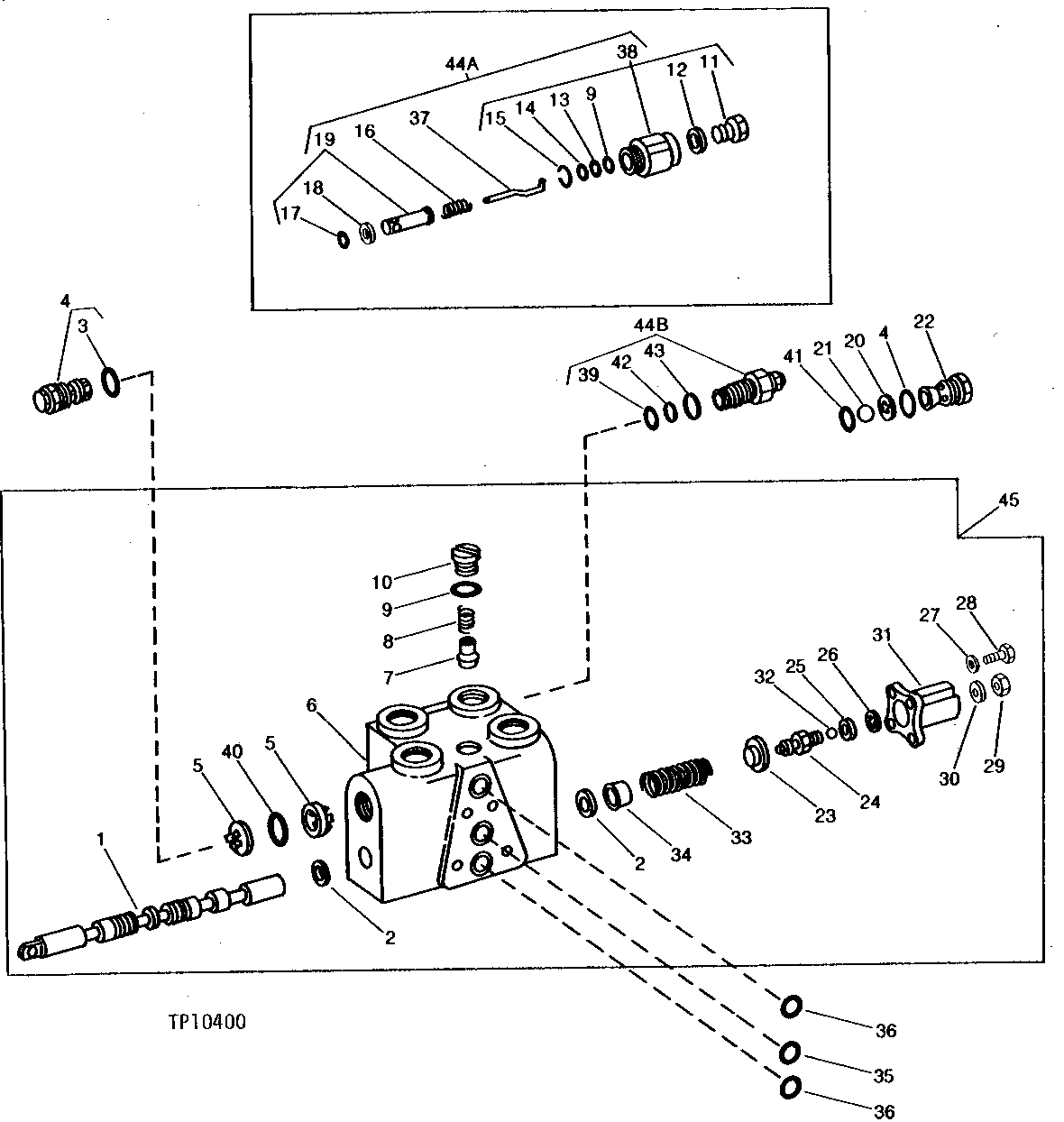

LOADER BOOM VALVE (SERIAL NO. 206829- ) [02E18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	FLOAT, (SUB AT104193, THIS APPLICATION)
2	T122063	2	O-RING	(A) (SUB FOR (2) T27593)
3	T75972	1	Back-Up Ring	-
3	T77072	1	O-Ring	-
3	U15242	2	O-RING	(A)
4	AT43791	1	PRESSURE RELIEF VALVE	(INCLUDES T75972 AND T77072) 21 375 KPA (214 BAR) (3100 PSI)
5	T47769	4	BACK-UP RING	(A) (SUB FOR T44949)
6	-	1	Part 8	(SUB AT104193, THIS APPLICATION)
7	U17396	1	POPPET	-
8	U17406	1	SPRING	-
9	U17409	1	O-Ring	(A)
9	U17409	1	O-Ring	-
10	U17393	1	FITTING	-
11	T38568	1	CAP SCREW	-
12	T38569	1	WASHER	-
13	U17404	1	BACK-UP RING	(A)
14	P46051	1	O-Ring	(A)
15	U40056	1	SNAP RING	ROUND SECTION
16	U40059	1	SPRING	-
17	U15192	1	O-Ring	(A)
18	U17402	1	Washer	(A)
19	AU40014	1	RELIEF VALVE	LOWER
20	U17399	1	RETAINER	-
21	U17412	1	BALL	-
22	U17394	1	PLUG	ANTI CAVITATION, UPPER
23	U17390	1	LOCKING COLLAR	STOP DETENT
24	T104898	1	ADAPTER FITTING	(SUB FOR U40055) (ALSO ORDER E54612 AND 24H1305) FLOAT DETENT
25	U17408	1	Ring	-
26	U17389	1	RETAINER	BALL DETENT
27	12H302	4	Lock Washer	1/4"
28	21H1174	4	SCREW	1/4" X 1"
29	14H849	1	Nut	7/16"
30	12H293	1	Lock Washer	7/16"
31	U17388	1	COVER	-
32	H22694	4	BALL	(SUB FOR U17410)
33	U17407	1	SPRING	-
34	U17382	1	ROUND RETAINER	-
35	T30424	1	O-RING	-
36	T30423	2	O-RING	-
37	T30193	1	PIN FASTENER	-
38	AU40161	1	VALVE	RELIEF, UPPER, 15 513 KPA (155 BAR) (2250 PSI)
39	U15192	1	O-Ring	-
40	T44948	1	O-Ring	(SUB FOR U40424)
41	T44948	1	O-Ring	(A)
42	U17402	1	Washer	-
43	U17409	1	O-Ring	-
45	AT43788	1	CONTROL VALVE	(FOR BOOM) (SUB AT104193, THIS APPLICATION)
45	AT104193	1	VALVE	BOOM, (SUB AT104193, THIS APPLICATION) (SUB FOR AT73316)
..	AT43379	1	VALVE	THREE-SECTION COMPLETE (ALSO INCLUDES PARTS SHOWN ON PAGES 75-40 AND 75-41)
..	AT43378	1	CONTROL VALVE	THREE-SECTION WITH ELECTRIC RETURN-TO-DIG, (SUB AT58887 AND AT83374) (ALSO INCLUDES PARTS SHOWN ON PAGES 75-40, 75-41 AND 75-42)
..	-	1	Part 53	THREE-SECTION WITH ELECTRIC RETURN-TO-DIG MACHINE (ALSO INCLUDES PARTS SHOWN ON PAGES 75-40, 75-41 AND 75-42A) ( AT58745 NO LONGER AVAILABLE) (SUB AT104493 IF AVAILABLE)
..	AU40434	1	KIT	REPAIR O-RING AND SEAL
44A	AT28845	1	VALVE	COMPLETE, 1 553 DPA (155 BAR) (2250 PSI) (SUB AT113659)
44B	AT113659	1	PRESSURE RELIEF VALVE	(SUB FOR AT76548) RELIEF, 15 513 KPA (155 BAR) (2250 PSI)

LOADER BOOM VALVE (SERIAL NO. 206829- ) [02E18]
