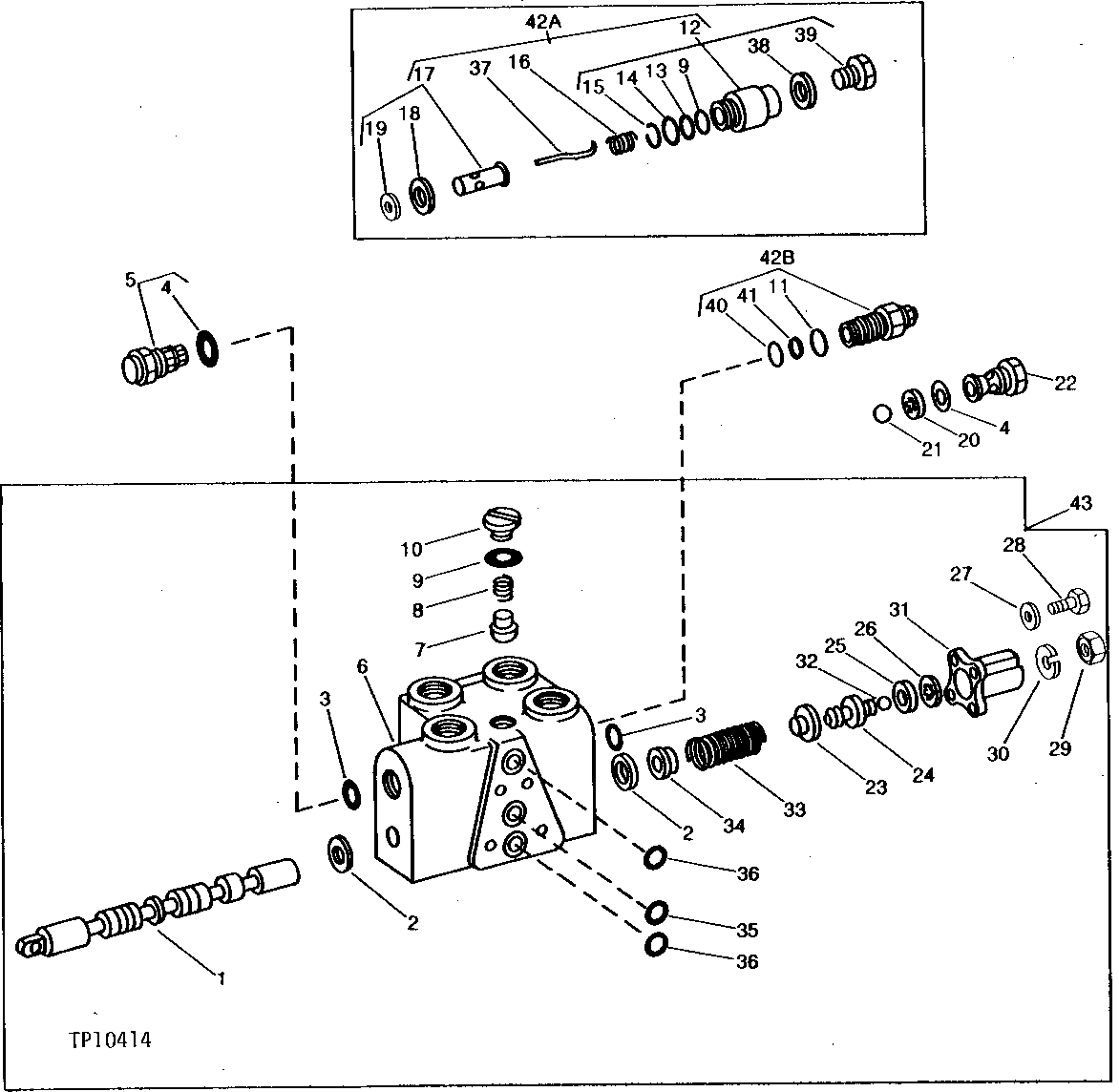

LOADER BOOM VALVE (SERIAL NO. -206828) [02D13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AU14306)
2	T122063	2	O-RING	(A) (SUB FOR (2) T27593)
3	T44948	2	O-Ring	(A)
4	U15242	2	O-RING	(A)
5	AU14302	1	PRESSURE RELIEF VALVE	173 KG/CM2 (173 BAR) (2500 PSI)
6	-	1	Part 6	(SUB AU14306)
7	U17396	1	POPPET	-
8	U17406	1	SPRING	-
9	U17409	1	O-Ring	(A)
9	U17409	1	O-Ring	-
10	U17393	1	FITTING	-
11	U17409	1	O-Ring	-
12	AU40161	1	VALVE	UPPER 15 513 KPA (155 BAR) (2250 PSI)
13	U17404	1	BACK-UP RING	(A)
14	P46051	1	O-Ring	(A)
15	U40056	1	SNAP RING	-
16	U40059	1	SPRING	-
17	AU40014	1	RELIEF VALVE	LOWER
18	U17402	1	Washer	(A)
19	U15192	1	O-Ring	(A)
20	U17399	1	RETAINER	-
21	U17412	1	BALL	-
22	U17394	1	PLUG	ANTI-CAVITION, UPPER
23	U17390	1	LOCKING COLLAR	-
24	T104898	1	ADAPTER FITTING	(SUB FOR U40055) (ALSO ORDER E54612 AND 24H1305)
25	U17408	1	Ring	-
26	U17389	1	RETAINER	-
27	12H302	4	Lock Washer	1/4"
28	21H1174	4	SCREW	1/4" X 1"
29	14H849	1	Nut	7/16"
30	12H293	1	Lock Washer	7/16"
31	U17388	1	COVER	-
32	H22694	4	BALL	(SUB FOR U17410)
33	U17407	1	SPRING	-
34	U17382	1	ROUND RETAINER	-
35	T30424	1	O-RING	-
36	T30423	2	O-RING	-
37	T30193	1	PIN FASTENER	-
38	T38569	1	WASHER	-
39	T38568	1	CAP SCREW	-
40	U15192	1	O-Ring	-
41	U17402	1	Washer	-
43	AU14306	1	VALVE	BOOM (SECTION)
..	AT41787	1	CONTROL VALVE	(SUB AT43379) THREE SECTION COMPLETE (ALSO INCLUDES PARTS SHOWN ON PAGES 75-15 AND 75-16)
..	AT41789	1	CONTROL VALVE	(SUB AT43378) ALSO INCLUDES PARTS SHOWN ON PAGES 75-15, 75-16 AND 75-17)
..	AU40434	1	KIT	REPAIR O-RING AND SEAL
42A	AT28845	1	VALVE	15 513 KPA (155 BAR) (2250 PSI) (SUB AT113659)
42B	AT113659	1	PRESSURE RELIEF VALVE	(SUB FOR AT76548) RELIEF 15,513 KPA (155 BAR) (2250 PSI)
