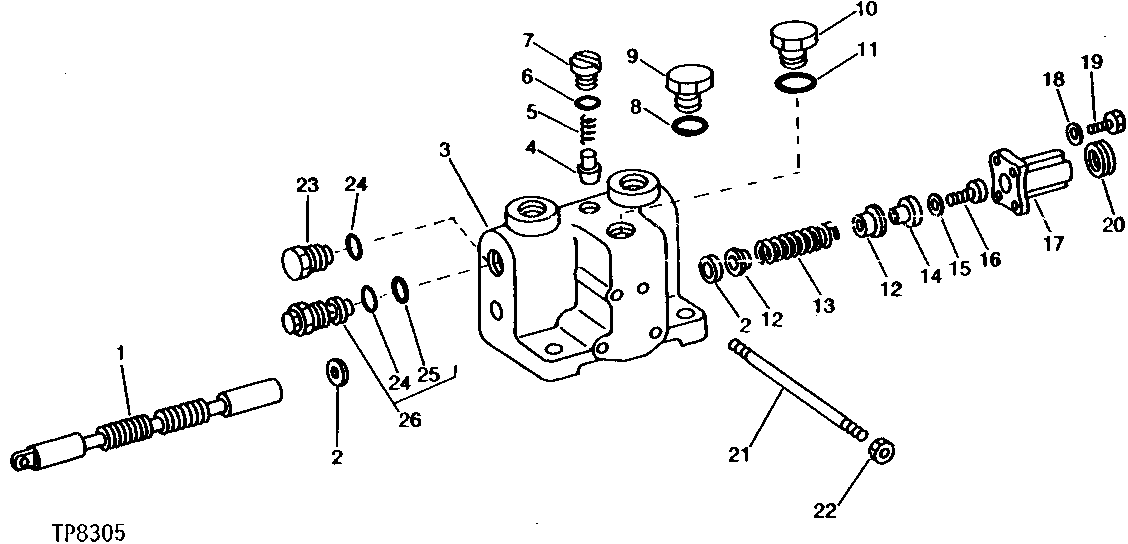

LOADER AUXILIARY VALVE (SERIAL NO. 206829- ) [02E22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AT104191)
2	T122063	2	O-RING	(SUB FOR (2) T27593)
3	-	1	Part 3	(SUB AT104191)
4	U17396	1	POPPET	-
5	U17406	1	SPRING	-
6	U17409	1	O-Ring	-
7	U17393	1	FITTING	-
8	U12547	2	O-Ring	-
9	U17383	2	FITTING	-
10	U17384	1	DRAIN PLUG	OPEN CENTER
11	R29936	1	O-Ring	-
12	U17395	4	ROUND RETAINER	-
13	T34974	2	SPRING	(SUB FOR U17403)
14	U17391	2	ROUND RETAINER	-
15	U11298	2	LOCK WASHER	-
16	19H3295	2	Screw	HYDRAULIC, HS, SAE 8, 3/8" X 3/4"
17	T75985	1	COVER	-
18	12H302	4	Lock Washer	1/4"
19	21H1174	4	SCREW	1/4" X 1"
20	U17387	1	DIAPHRAGM	-
21	U17392	4	STUD	-
22	U13184	4	Lock Nut	-
23	T36013	1	PLUG	(WHEN NOT EQUIPPED WITH JOHN DEERE MULTI-PURPOSE BUCKET)
24	U15242	1	O-RING	-
25	T44948	1	O-Ring	-
26	AU14302	1	PRESSURE RELIEF VALVE	17 238 KPA (173 BAR) (2500 PSI) (WHEN EQUIPPED WITH JOHN DEERE MULTI-PURPOSE BUCKET)
..	AT43380	1	VALVE	(FOR RIPPER, LOG LOADER, OR DROTT 4-IN-1 BUCKET) (SUB AT104191)
..	AT43379	1	VALVE	THREE SECTION, COMPLETE (ALSO INCLUDES PARTS SHOWN ON PAGES 75-39 AND 75-40)
..	AT43378	1	CONTROL VALVE	(SUB AT58887) THREE SECTION COMPLETE WITH RETURN-TO- MECHANISM (ALSO INCULDES PARTS SHOWN ON PAGES 75-39, 75-40 AND 75-42)
..	-	1	Part 30	( AT58745 NO LONGER AVAILABLE) (USE AT104493 IF AVAILABLE)
