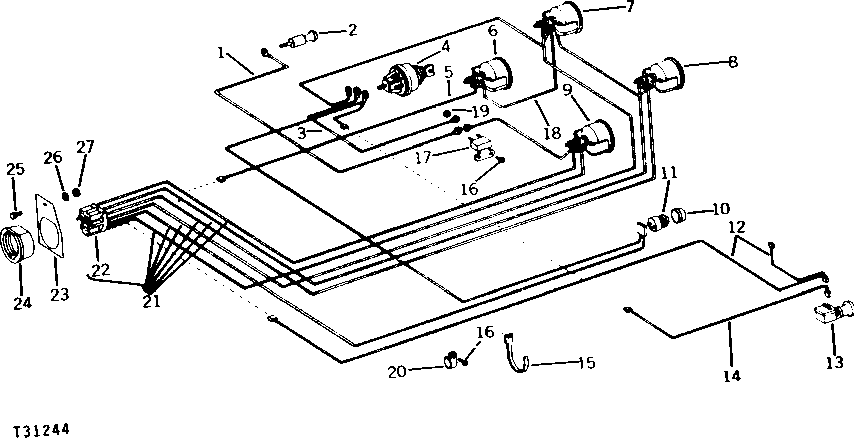

INSTRUMENT PANEL WIRING SYSTEM (SERIAL NO. -343540) [02A23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	CIGAR LIGHTER TO CIRCUIT BREAKER (MAKE FROM 177 MM (7") OF R66319 AND TWO R32018 FROM AR84006 WIRE LEAD KIT) (SUB. FOR AT26016)
2	AR48643	1	ELECTRICAL LIGHTER	(SUB FOR AR34556)
3	-	1	Part 3	CIRCUIT BREAKER TO IGNITION SWITCH (MAKE FROM 177 MM (7") OF R66319 AND TWO R32018 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT33510)
4	AT37390	1	SWITCH	-
5	-	1	Part 5	TRANSMISSION TEMPERATURE GAUGE TO CONNECTOR (MAKE FROM 508 MM (22") OF R65593 AND ONE R32018 AND ONE U46662 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT31111)
6	AT37409	1	PYROMETER	TRANSMISSION OIL TEMPERATURE
7	-	1	Part 7	ENGINE TEMPERATURE (STEWART-WARNER) (SUB AT149018) (SUB FOR AT37410) ( AT61467 USE IF AVAILABLE)
7	AT104755	1	TEMPERATURE GAUGE	(K) ENGINE TEMPERATURE (VDO)
8	AT39728	1	GAUGE	ENGINE OIL PRESSURE
9	AT41802	1	AMMETER	-
10	T58440	1	CAP	(SUB FOR T31142)
11	R39554	1	Switch	(SUB FOR AR47373)
12	AT30821	1	WIRING HARNESS	LIGHT SWITCH TO CONNECTOR AND LIGHT SWITCH TO GAUGE LIGHT HARNESS
13	AH85260	1	SWITCH	(SUB FOR AM31209, THIS APPLICATION)
14	-	1	Part 15	LIGHT SWITCH (MAKE FROM 152 MM (6") OF R66319 AND TWO T28583 AND TWO U46662 FROM AR84006 WIRE SERVICE KIT) (SUB FOR AT26014)
15	R44302	1	Tie Band	-
16	37H47	2	SCREW	NO. 8 X 1/2"
17	AR28403	1	CIRCUIT BREAKER	-
18	-	1	Part 19	OIL TEMPERATURE GAUGE (MAKE FROM 127 MM (5") OF R65593 AND TWO R32016 FROM AR84006 WIRE LEAD KIT) (SUB FOR AT18729)
19	14H631	2	Nut	0.190"
20	AT13846	1	CLAMP	-
21	AT33509	1	WIRING HARNESS	INSTRUMENT PANEL
22	T25315	1	HOUSING	-
23	T24832	1	BRACKET	-
24	T24833	1	GROMMET	-
25	19H2117	1	Cap Screw	5/16" X 1-1/8"
26	12H303	1	Lock Washer	5/16"
27	14H785	1	Nut	5/16"

INSTRUMENT PANEL WIRING SYSTEM (SERIAL NO. -343540) [02A23]
