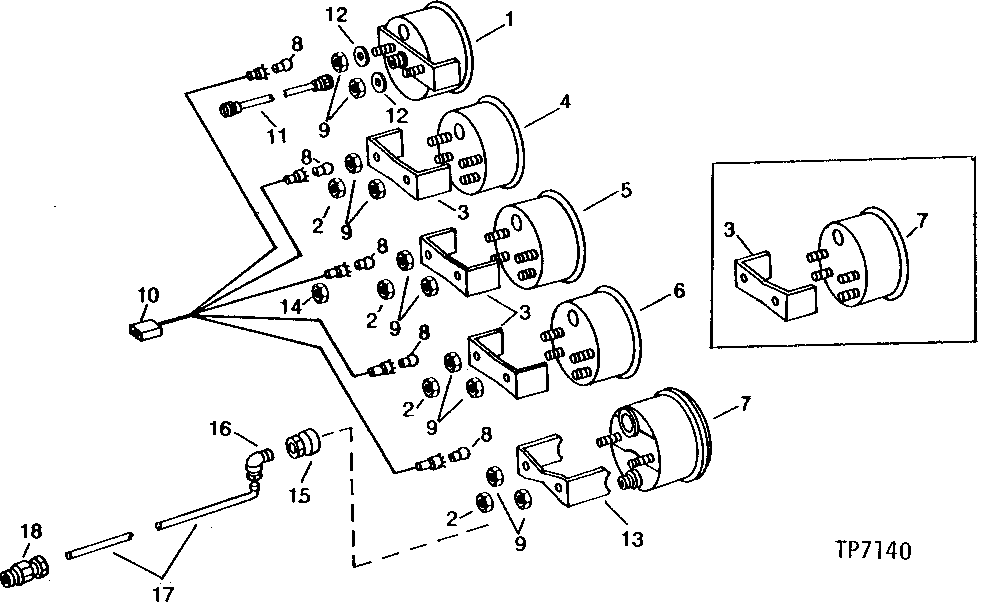

GAUGES AND GAUGE LIGHT HARNESS [02B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT148149	1	TACHOMETER	(SUB FOR AT41805)
1	AT41805	1	TACHOMETER	(USE IF AVAILABLE)
2	14H631	4	Nut	0.190"
3	T39395	4	BRACKET	-
3	T39395	3	BRACKET	-
4	AT37409	1	PYROMETER	TRANSMISSION OIL
5	-	1	Part 7	ENGINE TEMPERATURE (STEWART-WARNER) (SUB AT149018) (SUB FOR AT37410) ( AT61467 USE IF AVAILABLE)
5	AT104755	1	TEMPERATURE GAUGE	(K) ENGINE TEMPERATURE (VDO)
6	AT41802	1	AMMETER	-
6	AT39727	1	VOLTMETER	(SUB AT104767 AND T118593 BRACKET. REPLACE HARNESS EYELETS WITH R65595 AND U46370)
7	AT39728	1	GAUGE	ENGINE OIL PRESSURE
7	AT37411	1	PRESSURE GAUGE	ENGINE OIL
8	T40990	1	BULB	(4 WITHOUT TACHOMETER) (5 USED WITH TACHOMETER) (SUB FOR AT22970, THIS APPLICATION)
9	14H631	1	Nut	(8 USED WITHOUT TACHOMETER) 10 USED WITH TACHOMETER)
10	AT41803	1	WIRING HARNESS	(WITHOUT TACHOMETER)
10	AT41804	1	WIRING HARNESS	(WITH TACHOMETER)
11	AT31116	1	DRIVE CABLE	-
12	12H295	1	Lock Washer	(8 USED WITH TACHOMETER) (10 USED WITHOUT TACHOMETER)
13	T38594	1	BRACKET	-
14	14H631	1	Nut	0.190"
14	12H295	1	Lock Washer	0.190"
15	15H73	1	Coupling	1/8"
16	AT62178	1	ELBOW FITTING	-
17	-	1	Part 24	853.44 MM LONG (1/8" X 33.6") MAKE FROM T60804, 30M (100') BULK) (SUB FOR T67714)
18	AT62083	1	FITTING	-

GAUGES AND GAUGE LIGHT HARNESS [02B10]

Нет текстового описания
