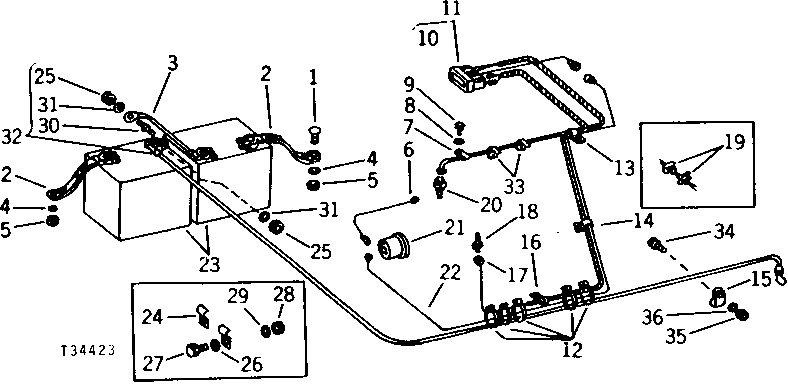

BATTERY CABLES AND HOUR METER WIRING HARNESS [02B01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03H1765	1	Bolt	3/8" X 3/4"
2	AT18702	1	GROUND CABLE	(1 OR 2 USED)
3	AT25420	1	BATTERY CABLE	216 MM (8-1/2") LONG (USED WITH TWO BATTERIES)
4	24H1302	1	Washer	13/32" X 11/16" X 0.035", (1 OR 2 USED)
5	14H812	1	NUT	3/8", (1 USED WITH ONE BATTERY; 2 USED WITH TWO BATTERIES)
6	AT18715	1	WIRING LEAD	HOUR METER
7	R42357	1	CLAMP	-
8	12H304	3	Lock Washer	3/8"
9	19H2038	1	Cap Screw	3/8" X 1/2"
10	T21203	1	TERMINAL	-
11	AT18705	1	WIRING HARNESS	-
12	R44302	5	Tie Band	-
13	T13814	1	Clamp	-
14	T13913	1	Clip	-
15	R46415	1	CLAMP	(SUB FOR T20985, THIS APPLICATION)
16	T21101	1	Clamp	-
17	AT18984	1	WIRING LEAD	TRANSMISSION TEMPERATURE SENDING UNIT
18	AT37368	1	SENDER	TRANSMISSION TEMPERATURE
19	T41072	2	CLIP	(HOUR METER LEAD)
20	AT14407	1	SWITCH	-
21	AT160120	1	HOUR METER	(SUB FOR AT33995 OR AT61458)
22	AT18984	1	WIRING LEAD	HOUR METER EXTENSION
23	AT29160	1	DRY CHARGED BATTERY	12-VOLT, 570 COLD CRANKING AMPS AT -17.8°C (0°F), 180-MINUTE RESERVE CAPACITY AT 25 AMPS (1 OR 2 USED)
24	T25133	2	CLAMP	-
25	14H785	2	Nut	5/16"
26	24M7096	2	Washer	0.413" X 0.709" X 0.063"
27	19H2284	2	Cap Screw	3/8" X 7/8"
28	14H812	2	NUT	3/8"
29	12H304	2	Lock Washer	3/8"
30	T31161	1	Stud	-
31	12H303	2	Lock Washer	5/16"
32	AT158607	1	BATTERY CABLE	2 083 MM (82") LONG (WITHOUT DISCONNECT SWITCH) (SUB FOR AT36685, THIS APPLICATION) (SUB FOR AT66922)
33	T41072	2	CLIP	-
34	19H1948	1	Cap Screw	1/4" X 3/4"
35	14H786	1	Nut	1/4"
36	12H302	1	Lock Washer	1/4"
