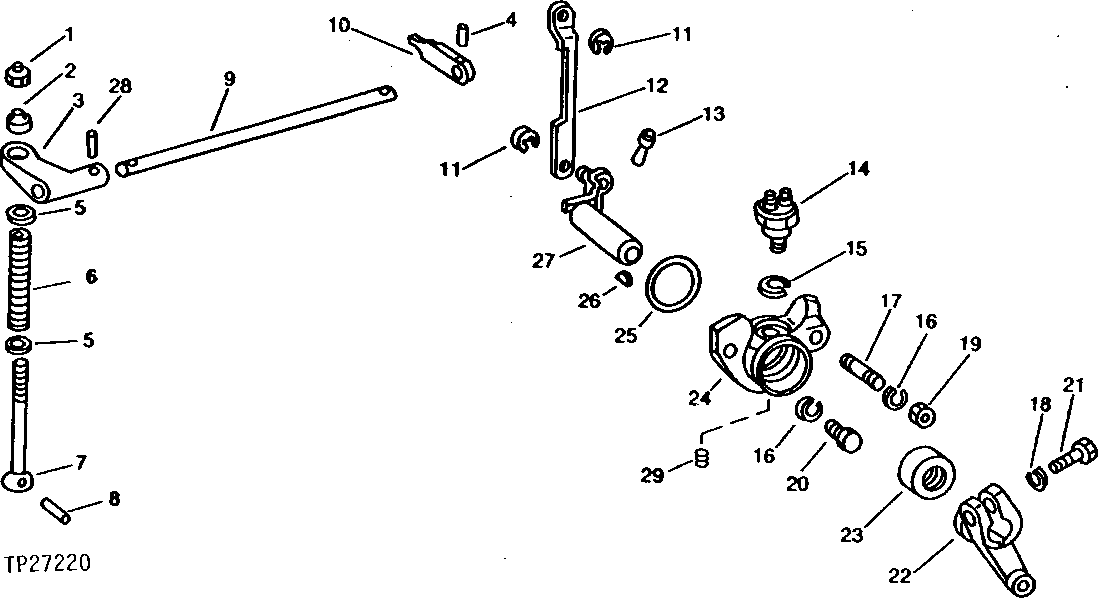

TRANSMISSION CLUTCH AND SHIFT LINKAGE [01E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T16464	1	Lock Nut	BALL
2	T20816	1	SPACER	-
3	T33299	1	ARM	VALVE OPERATING
4	34H280	1	Spring Pin	3/16" X 7/8"
5	24H1305	2	Washer	13/32" X 13/16" X 0.065"
6	T20815	1	SPRING	-
7	T20814	1	LINK	-
8	34H252	1	SPRING PIN	1/8" X 1-1/4"
9	T33300	1	PIN FASTENER	VALVE OPERATING
10	T33298	1	LEVER	VALVE OPERATING
11	R72653	2	Snap Ring	(SUB FOR M2396T) (WITH OLD ARM AT22768 OR AR30464)
11	T105505	2	Snap Ring	(WITH NEW ARM AT104925 OR AT104926)
12	T19932	1	LINK	-
13	T35703	1	PIN FASTENER	STARTER SAFETY ACTIVATING
14	AT14407	1	SWITCH	STARTER SAFETY
15	T35704	1	SHIM	0.25 MM (.010")
15	T16911	1	SHIM	0.38 MM (.015")
16	R57696	2	Washer	(SUB FOR R1870R)
17	T35705	1	STUD	-
18	24H1304	1	WASHER	13/32" X 23/32" X 0.120"
19	14H812	1	NUT	3/8"
20	19H2549	1	Cap Screw	3/8" X 1-7/8"
21	19H2633	1	Cap Screw	3/8" X 1-1/2"
22	T20818	1	LEVER	SHIFTER SPEED RANGE
23	T23902	1	SEAL	-
24	T123289	1	SUPPORT	(SUB FOR T35702) (ALSO ORDER 15H558) CAM SHAFT
25	R26773	1	O-Ring	-
26	26H77	1	Shaft Key	WOODRUFF, 3/16" X 3/4"
27	AT104925	1	ARM	OPERATING, SHIFT VALVE, (SUB FOR AT22768) (ALSO ORDER (2) T105505)
28	M3853T	1	GROOVE PIN	3/16" X 7/8"
29	15H558	1	Pipe Plug	1/8"

TRANSMISSION CLUTCH AND SHIFT LINKAGE [01E18]
