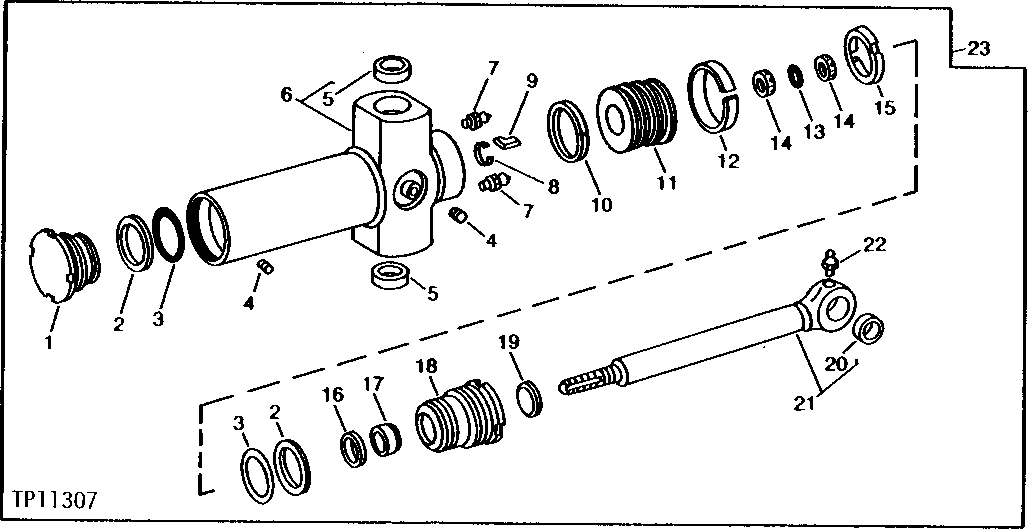

SWING CYLINDER (9550 BACKHOE) (SERIAL NO. -039796) [03C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T48260	1	HYDRAULIC CYLINDER CAP	-
2	R78993	2	BACK-UP RING	(A) (SUB FOR U10777, THIS APPLICATION)
3	U10776	2	O-Ring	(A)
4	22H842	2	SET SCREW	1/4" X 5/16"
5	U43454	2	BUSHING	-
6	AT46827	1	HYDRAULIC CYLINDER BARREL	-
7	JD7759	2	Lubrication Fitting	1/8"
8	C17964	1	Ring	-
9	T46628	1	SHAFT KEY	-
10	T45737	1	RING	-
11	T60873	1	PISTON	(SUB FOR T48261) (ALSO ORDER RE10959 THIS APPLICATION)
12	U17217	1	WEAR RING	(A)
13	R31378	1	O-Ring	(A)
14	R79117	2	Back-Up Ring	(A) (SUB FOR T50240, THIS APPLICATION)
15	T48262	1	SEAL	(A) (SUB T60874, T60875 AND T60873)
16	R76775	1	SEAL	(A) (SUB FOR T50241)
17	U41823	1	WEAR RING	-
18	R80920	1	GUIDE	(SUB FOR T48264)
19	U46283	1	SEAL	(A)
20	T33708	1	BUSHING	-
21	AT46829	1	HYDRAULIC CYLINDER ROD	-
22	JD7797	1	Lubrication Fitting	1/4"
23	AT46826	2	CYLINDER	(SUB AR105300)
..	RE10959	1	KIT	CYLINDER REPAIR, (SUB FOR AT56724 AND AT58362) (ALSO ORDER T60873 THIS APPLICATION)

SWING CYLINDER (9550 BACKHOE) (SERIAL NO. -039796) [03C06]
