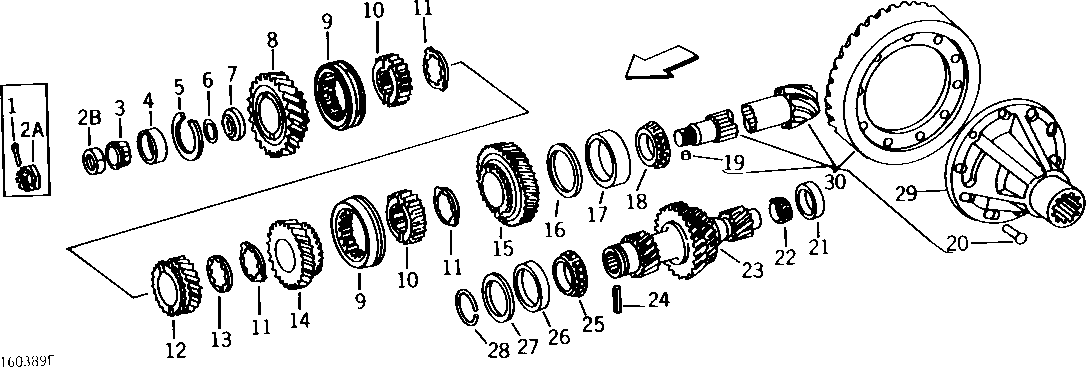

SPEED CHANGE GEARS AND SHAFTS [01E15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7087	1	Cotter Pin	4 X 40 MM
3	JD8929	1	Bearing Cone	-
4	JD8251	1	Bearing Cup	-
5	T13379	1	SNAP RING	-
6	T20804	1	SHIM	0.25 MM (.010")
6	T20803	1	SHIM	0.13 MM (.005")
6	T20802	1	SHIM	0.18 MM (.007")
7	T20800	1	SPACER	-
8	T31803	1	GEAR	SECOND SPEED (38 TEETH)
9	T31800	2	SHIFT COLLAR	-
10	T20794	2	GEAR	SHIFTER (31 TEETH)
11	T31799	3	WASHER	THRUST
12	T31802	1	GEAR	FOURTH SPEED (26 TEETH)
13	T20797	1	PLATE	THRUST
14	T31801	1	GEAR	THIRD SPEED (32 TEETH)
15	T31798	1	GEAR	FIRST SPEED (43 TEETH)
16	-	1	Part 21	(A) 0.25 MM (.010") ( T14322 NO LONGER AVAILABLE)
16	-	1	Part 19	(A) 0.05 MM (.002") ( T14320 NO LONGER AVAILABLE)
16	-	1	Part 20	(A) 0.13 MM (.005") ( T14321 NO LONGER AVAILABLE)
17	JD8255	1	Bearing Cup	-
18	JD8941	1	Bearing Cone	-
19	T16573	1	Pin	-
20	17H91	10	RIVET	1/2" X 2"
21	JD9024	1	BEARING CUP	-
22	JD9025	1	BEARING CONE	-
23	T31790	1	SHAFT	REAR
24	R43244	1	Needle Roller	(SUB FOR T36816)
25	JD9045	1	BEARING CONE	-
26	JD9110	1	BEARING CUP	-
27	T31792	1	SHIM	0.05 MM (.002")
27	T31793	1	SHIM	0.13 MM (.005")
27	T31794	1	SHIM	0.25 MM (.010")
28	T31791	1	SNAP RING	RETAINING
29	T41190	1	HUB	RING GEAR, (SUB FOR T31827)
30	AT30888	1	PINION SHAFT	(8 TEETH) WITH GEAR, RING (MARKED T31826) (44 TEETH) (MATCHED SET) AND HUB RING GEAR (MARKED T41190) WITH RIVETS (ALSO INCLUDED 11H240 PIN AND T36149 NUT) (SUB AT59731)
30	AT59731	1	PINION SHAFT	(8 TEETH) WITH RING GEAR (MARKED T31826) (44 TEETH) (MATCHED SET) AND HUB (MARKED T41190) WITH RIVETS AND T64254 NUT)
2A	T36149	1	LOCK NUT	OUTPUT, SHAFT-THRUST, 1-1/8"
2B	T64254	1	NUT	OUTPUT SHAFT THRUST, (SUB FOR T62387)

SPEED CHANGE GEARS AND SHAFTS [01E15]

Нет текстового описания
