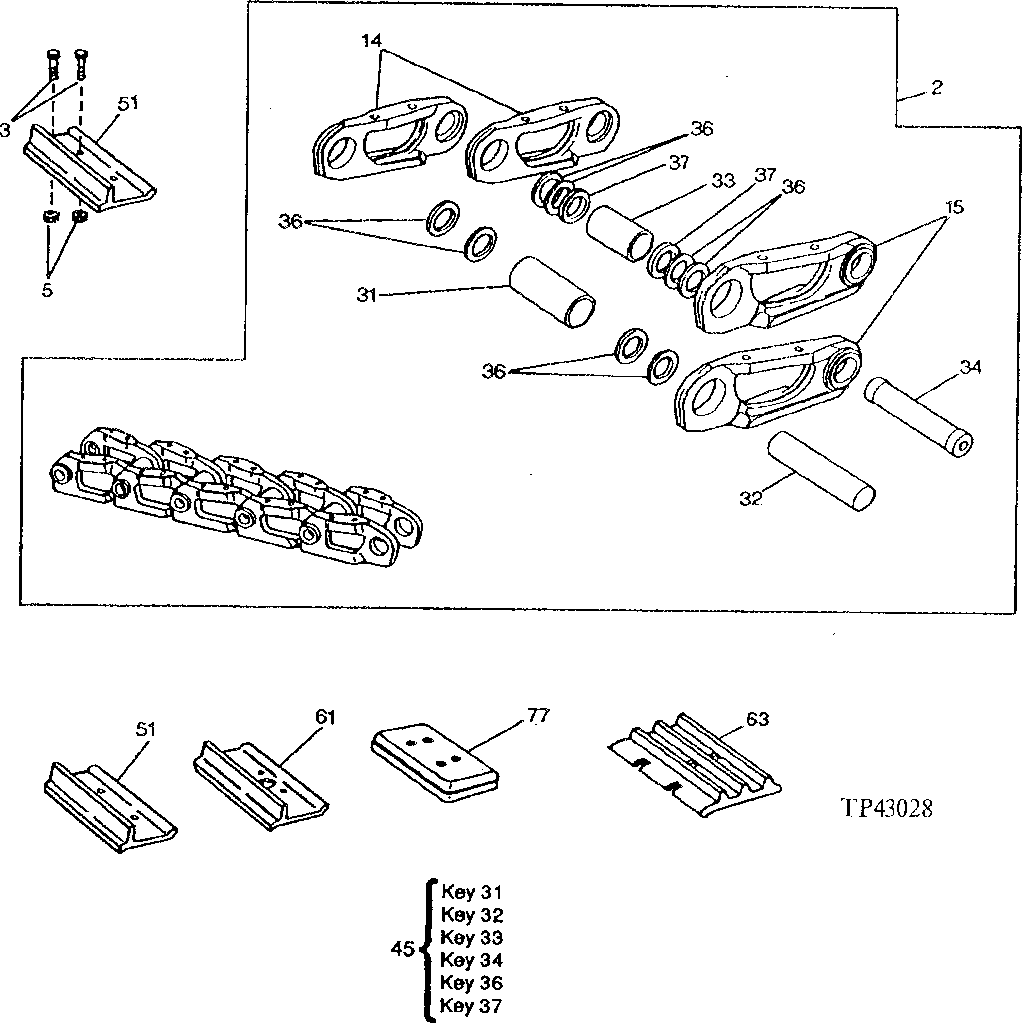

REPLACEMENT SEALED CHAIN, 1/2" WITH MASTER PIN AND NON-STRUTTED LINKS (36) [01I22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	AT113052	1	TRACK CHAIN W/O SHOES	(36L)(USE WITH SPROCKET T153045 OR T175962) (SUB FOR AT41740, AT56689, AT113079 AND AT148558)
3	T74183	144	BOLT	1/2" X 1.732"
3	19H3012	144	Cap Screw	1/2" X 2-3/8", (USE WITH RUBBER SHOE)
5	T74184	144	NUT	1/2"
14	T112081	36	NON-STRUTTED LINK-LH	(SUB FOR T75437)
15	T112080	36	NON-STRUTTED LINK-RH	(SUB FOR T75436)
31	T105116	35	Bushing	-
32	T74178	35	Track Pin	-
33	T74177	1	Master Track Bushing	-
34	T74185	1	Master Track Pin	-
36	T105117	144	Spring Washer	-
37	T105131	2	Washer	(SUB FOR T74186)
45	AT104530	1	Pin & Bushing Kit	(SUB FOR AT75611) (INCLUDES (35) T105116, (144) T105117, (2) T105131, T74177, (35) T74178 AND T74185)
51	T112404	36	SINGLE BAR SHOE	406MM (16")
51	T112405	36	SINGLE BAR SHOE	457MM (18")
61	T112400	36	OPEN CENTER 1 BAR SHOE	406MM (16") (SUB FOR T75591)
61	T112401	36	OPEN CENTER 1 BAR SHOE	457MM (18") (SUB FOR T75592)
63	T24699	36	OPEN CENTER 3 BAR SHOE	406MM (16") - NLA
77	-	36	Part 19	330MM (13"), AT125940 NO LONGER AVAILABLE, ORDER DIRECTLY FROM SUPERIOR TIRE AND RUBBER, WARREN, PENNSYLVANIA 16365, PHONE 800-289-1456, (SUB FOR AT22880)

REPLACEMENT SEALED CHAIN, 1/2" WITH MASTER PIN AND NON-STRUTTED LINKS (36) [01I22]
