REPLACEMENT BACKHOE HEAVY-DUTY BUCKETS (WITH CURVED PIVOT PLATES) (9300 BACKHOE) [02H03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

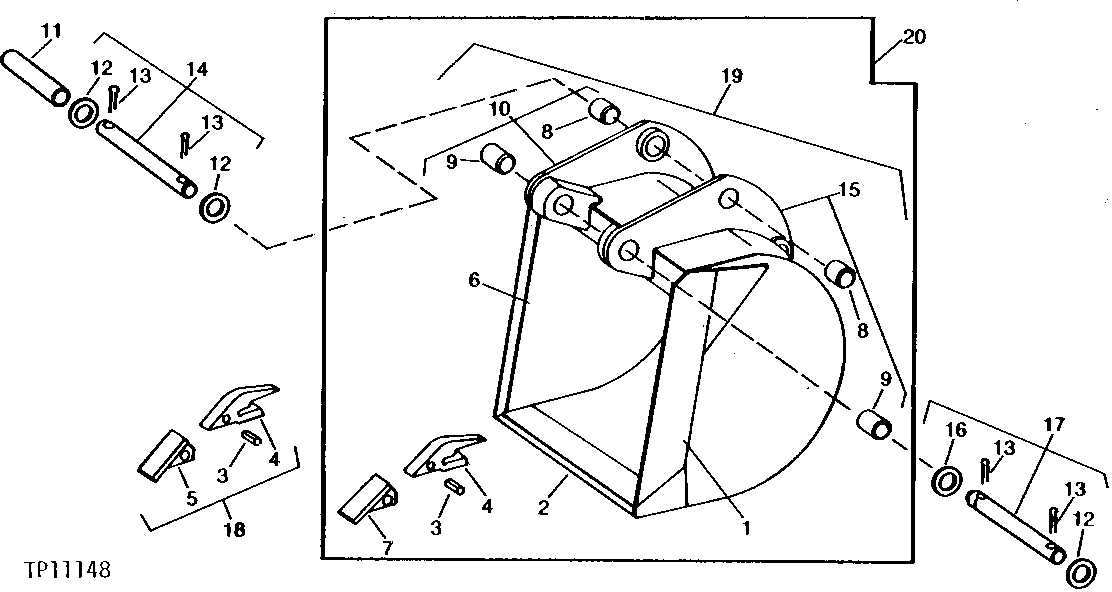

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T38876	1	CUTTING EDGE	SIDEBIT, L.H., 16 MM X 127 MM X 876 MM (5/8" X 5" X 34-1/2") (USE WITH AT76972, AT76971 AND AT76969)
2	T38856	1	CUTTING EDGE	22 MM X 152 MM X 426 MM (7/8" X 6" X 16-3/4") (FOR 457 MM (18") BUCKET)
2	T38862	1	CUTTING EDGE	FRONT, 22 MM X 152 MM X 578 MM (7/8" X 6" X 22-3/4") (FOR 610 MM (24") BUCKET)
2	T38865	1	CUTTING EDGE	FRONT, 22 MM X 152 MM X 730 MM (7/8" X 6" X 3/4") (FOR 762 MM (30")
3	T40910	1	PIN	FLEX, (4 USED WITH 457 MM (18") AND 610 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKETS)
4	U43792	1	Bucket Tooth Adapter	(SUB FOR (AR) U42750) TOOTH, 24 MM (15/16"), (4 USED WITH 457 MM (18") AND 610 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKETS) (WITH 7/8" CUTTING EDGE)
5	U42751	1	POINT	(4 USED WITH 457 MM (18") AND 610 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKETS)
5	T56524	1	POINT	STARPOINT, (4 USED WITH 457 MM (18") AND 610 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKETS)
6	T38875	1	CUTTING EDGE	SIDE, R.H., 16 MM X 127 MM X 876 MM (5/8" X 5" X 34-1/2") (USE WITH AT37726, AT37727, AT37728, AT76972, AT76971 AND AT76969)
7	T230SP	1	Tooth	(SUB FOR T54317) (FORGED) (4 USED WITH 457 MM (18") AND 610 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKETS)
8	T105988	1	Bushing	PIVOT PLATE, (SUB FOR U42739)
9	T105987	2	BUSHING	PIVOT PLATE, (SUB FOR U42736)
10	-	4	Part 13	BACK, (SUB AT36086)
11	28H2196	1	SPACER	BUCKET LINKAGE, 1-1/2" X 6"
12	U11649	2	WASHER	BACKUP
13	11H221	4	COTTER PIN	3/8" X 2-1/2"
14	AU42334	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931) COUPLER LINKS TO BUCKET
14	T125931	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
15	-	1	Part 19	(SUB AT36086)
16	U11650	2	WASHER	BACKUP
17	AU42333	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) BUCKET TO DIPPERSTICK
17	T125926	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
18	-	4	Part 23	24 MM (15/16") (WITH 457 MM (18") AND 610 MM (24"), 5 USED WITH 762 MM (30") BUCKETS) (USE WITH 22 MM (7/8" CUTTING EDGE) ( AU41838 - NO LONGER AVAILABLE) (SUB T40910, U43792 AND U42751)
19	AT36086	1	PLATE	-
20	-	1	Part 25	457 MM (18") (USE AT76972 IF AVAILABLE) (SUB AT114261)
20	-	1	Part 26	610 MM (24") (USE AT76971 IF AVAILABLE) (SUB AT114258)
20	-	1	Part 27	762 MM (30") ( AT76969 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
