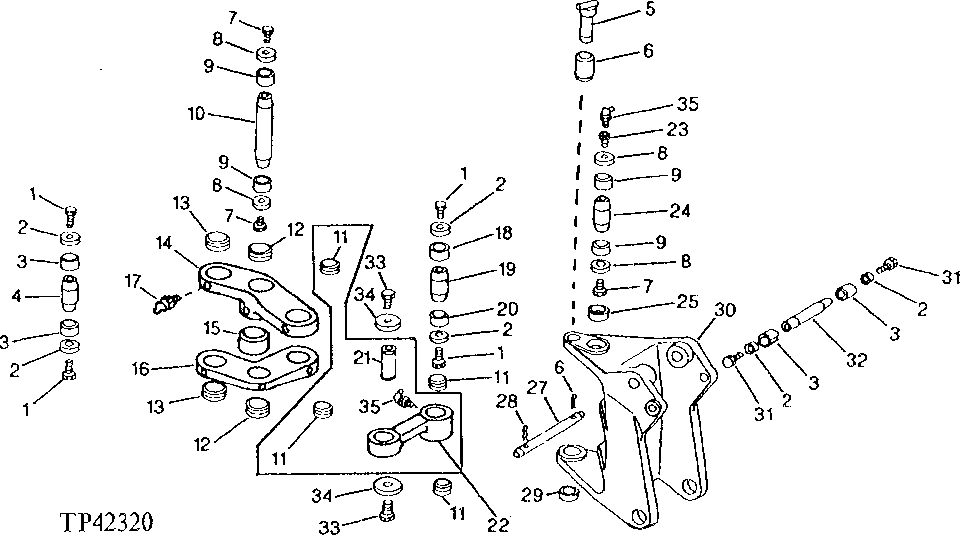

MAST AND SWING LINKAGE (9250 BACKHOE) [02F12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2710	4	Cap Screw	HS, SAE 8, 5/8" X 1-3/4"
2	U43183	6	Washer	TAPERED PIN
3	U43182	4	TAPERED SLEEVE	WEDGE
4	U43210	1	PIN FASTENER	TAPERED, SWING CYLINDER TO MAIN FRAME
5	AU42103	1	QUICK LOCK PIN	-
6	U43220	1	BUSHING	SPACER, SWING LOCK PIN
7	19H2717	4	Cap Screw	HS, SAE 8, 3/4" X 1-3/4"
8	U43180	6	SPACER	TAPERED PIN
9	U43179	6	TAPERED SLEEVE	WEDGE
10	U43184	1	PIN	INNER SWING LINKS TO MAIN FRAME
11	U43203	4	Bushing	INNER SWING LINK OUTER SWING LINK
12	U43163	2	BUSHING	INNER SWING LINK
13	U43202	2	Bushing	INNER SWING LINK
14	AU42100	1	LINK	SWING, INNER, UPPER (INCLUDES U43163 BUSHING, U43202 BUSHING, U43203 BUSHING, AND JD7797 GREASE FITTING)
15	U43213	1	SPACER	INNER SWING LINKS
16	AU42101	1	LINK	SWING INNER, LOWER (INCLUDES U43163 BUSHING, U43202 BUSHING, U43203 BUSHING, AND JD7797 GREASE FITTING)
17	JD7797	7	Lubrication Fitting	STRAIGHT, 1/4"
18	U43177	1	TAPERED SLEEVE	WEDGE
19	U43209	1	PIN FASTENER	-
20	U43211	1	TAPERED SLEEVE	WEDGE LOWER
21	U43207	1	PIN FASTENER	-
22	AU42102	1	LINK	SWING, OUTER (INCLUDES U43207 PIN, U43203 BUSHINGS, AND JD7806 GREASE FITTING)
23	U43212	2	BOLT	-
24	U43208	2	PIN	TAPERED SWING FRAME TO MAIN FRAME
25	U40304	1	BUSHING	UPPER, SWING FRAME
26	11M7030	1	Cotter Pin	5 X 40 MM
27	U43218	1	PIN	BOOM LOCK
28	S2955DW	1	PIN	-
29	U40305	1	Bushing	LOWER SWING FRAME
30	AU42099	1	FRAME	SWING, (INCLUDES U40304 AND U40305)
31	19H2994	2	Cap Screw	HS, SAE. 8, 5/8" X 1-1/2")
32	U43219	1	PIN	TAPERED BOOM CYLINDER TO SWING FRAME
33	19H2472	2	Cap Screw	HS, SAE 8, 1/2" X 1"
34	U43645	2	WASHER	-
35	JD7806	2	Lubrication Fitting	90°, 1/4"
