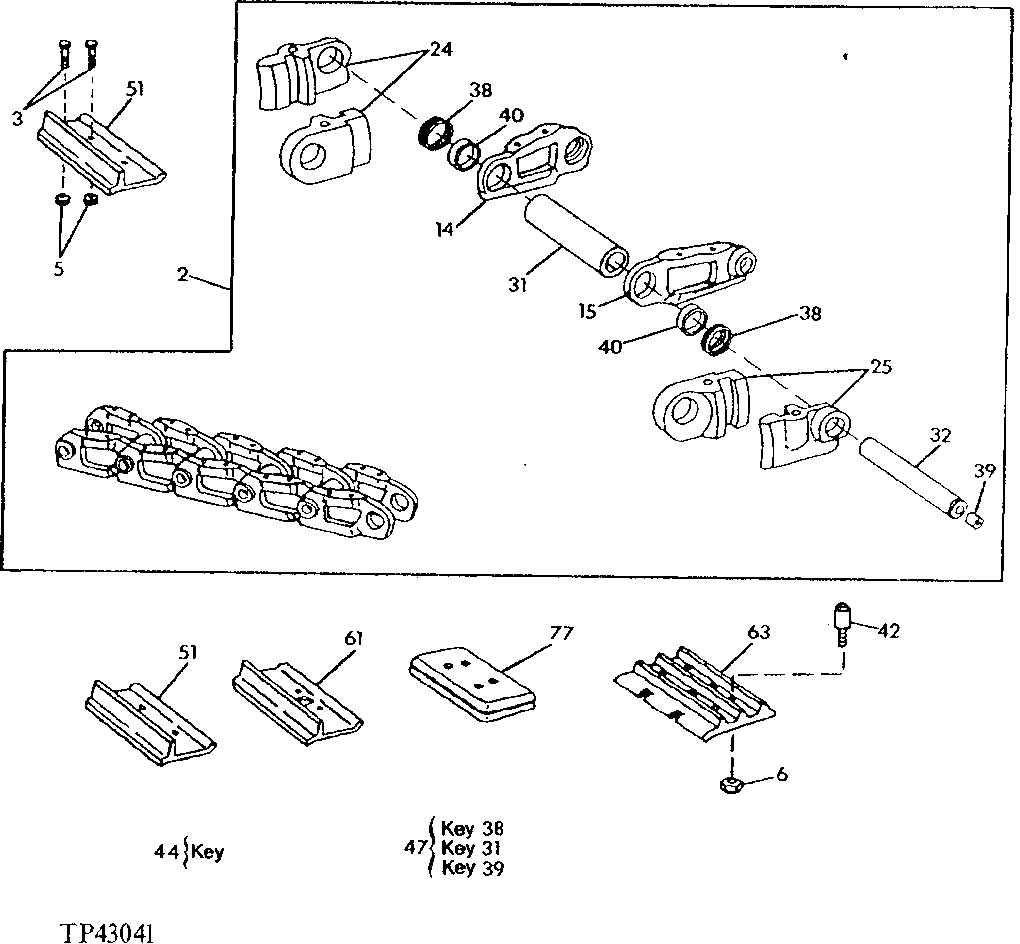

LUBRICATED CHAIN 1/2", WITH NON-STRUTTED LINKS STD (36L) [01J01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	AT168619	2	TRACK CHAIN W/O SHOES	(36L) (USE WITH SPROCKET T153045 OR T175962) (SUB FOR AT113036 AND AT148561)
3	T40435	144	CAP	1/2" X 1.560", (USE IF AVAIALBLE, THAN SUB T130032) (USE WITH NUT T17913)
3	T130032	144	BOLT	1/2" X 1.654", (USE WITH NUT T129173)
3	19H3012	144	Cap Screw	1/2" X 2-3/8", (USE WITH RUBBER SHOES)
5	T14913	144	NUT	1/2", (USE IF AVAILABLE,THAN SUB T129173) (USE WITH BOLT T40535) (SUB FOR T12913)
5	T129173	144	NUT	1/2", (USE WITH BOLT T130032)
6	B30434	72	Lock Nut	5/8", (USE WITH SNOW STUD) (SUB FOR M1665T)
14	T112081	35	NON-STRUTTED LINK-LH	-
15	T112080	35	NON-STRUTTED LINK-RH	-
24	AT113369	1	MASTER TRACK LINK-SPLIT-LH	-
25	AT113370	1	MASTER TRACK LINK-SPLIT-RH	-
31	T112245	36	BUSHING	-
32	T112247	36	Track Pin	-
38	AT113118	36	Seal	(PACKAGE OF 2)
39	T149248	36	Plug	(INSERT IN MIDDLE OF PLUG T151270)
39	T151270	36	Plug	(SUB FOR T112246) (ALSO ORDER T149248)
40	T112252	72	Washer	-
42	T29657	72	STUD	5/8" X 2.620", SNOW (FOR 3 BAR SHOES)
44	AT124014	1	SEAL KIT	CONTAINS 72 SEALS (PACKED 2 PER PACKAGE)
47	AT113119	1	PLUG AND SEAL KIT BUSHING	CONTAINS 72 SEALS, 36 BUSHING AND 36 PLUGS
51	T112403	36	SINGLE BAR SHOE	356MM (14") (SUB FOR T20614)
51	T112404	36	SINGLE BAR SHOE	406MM (16") (SUB FOR T75586)
51	T112405	36	SINGLE BAR SHOE	457MM (18") (SUB FOR T75587)
61	T20617	36	OPEN CENTER 1 BAR SHOE	356MM (14") (NO LONGER AVAILABLE-ORDER CLOSED CENTER SHOE)
61	T112400	36	OPEN CENTER 1 BAR SHOE	406MM (16") (SUB FOR T75591)
61	T112401	36	OPEN CENTER 1 BAR SHOE	457MM (18") (SUB FOR T75587)
63	T75588	36	OPEN CENTER 3 BAR SHOE	330MM (13") (CUT TO LENGTH) (SUB FOR T20613)
63	T75588	36	OPEN CENTER 3 BAR SHOE	356MM (14") (SUB FOR T20637)
63	T24699	36	OPEN CENTER 3 BAR SHOE	406MM (16") - NLA
77	-	36	Part 30	350MM (13") AT125940, NO LONGER AVAILABLE, ORDER DIRECTLY FROM SUPERIOR TIRE AND RUBBER, WARREN, PENNSYLVANIA 16365 PHONE 800-289-1456, (SUB FOR AT22880)

LUBRICATED CHAIN 1/2", WITH NON-STRUTTED LINKS STD (36L) [01J01]
