HYDRAULIC RETURN FILTER AND LINES (SERIAL NO. 354075- ) [02D11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P46051	1	O-Ring	-
2	T71326	1	PISTON	(SUB FOR T63942, THIS APPLICATION)
3	T158876	1	COMPRESSION SPRING	(SUB FOR T63943, THIS APPLICATION) (SUB FOR T73705)
4	R26375	1	O-Ring	-
5	14H778	2	Nut	0.190"
6	AT60644	1	Sender	-
7	AT63421	1	BASE	-
7	AT70977	1	BASE	-
8	AT63422	1	WIRING LEAD	-
9	19H2127	1	Cap Screw	5/16" X 7/8"
10	24H1136	1	Washer	11/32" X 11/16" X 0.065"
11	14H812	1	NUT	3/8"
12	AT22862	1	BRACKET	EXTENSION
13	M40463	1	Washer	-
14	24H1305	1	Washer	13/32" X 13/16" X 0.065"
15	19H3483	1	Cap Screw	3/8" X 1-1/8"
16	AR21839	2	Clamp	-
17	-	1	Part 18	245 MM LONG (3/4" X 9-5/8") (MAKE FROM T78497) (USED WITH 3-SPOOL VALVE WITHOUT REAR HYDRAULICS OR WITH 2-SPOOL VALVE WITH REAR HYDRAULICS) (SUB FOR R40074, THIS APPLICATION)
17	-	1	Part 22	298 MM LONG (3/4" X 11-3/4") (MAKE FROM T78497) (USED WITH 2-SPOOL VALVE WITHOUT REAR HYDRAULICS) (SUB FOR T25479, THIS APPLICATION)
17	T75691	1	HYDRAULIC HOSE - FABRICATE	190 MM LONG (1" X 7-1/2") (USE WITH 3-SPOOL VALVE WITH REAR HYDRAULICS)
17	T25479	1	HOSE	190 MM LONG (3/4" X 7-1/2") (MAKE FROM T78497) (USED WITH 3-SPOOL VALVE WITH REAR HYDRAULICS) (SUB FOR R40074, THIS APPLICATION)
17	T75672	1	HYDRAULIC HOSE - FABRICATE	255 MM LONG (1" X 10") (USE WITH 3-SPOOL VALVE WITHOUT REAR HYDRAULICS OR 2-SPOOL VALVE WITH REAR HYDRAULICS)
18	R71787	1	Fitting	(SUB FOR H65405, THIS APPLICATION)
18	T29747	1	Hose Fitting	-
19	R29936	3	O-Ring	-
20	AT69852	1	FILTER	SPIN-ON, (SUB FOR AT63557)
21	U17022	1	GASKET	IF AVAILABLE
21	T84537	1	GASKET	(SUB FOR U17022)
22	AT63423	1	PLATE	FILLER
23	12H304	6	Lock Washer	3/8"
24	19H2284	6	Cap Screw	3/8" X 7/8"
25	AT84988	1	FILLER CAP	(SUB FOR AU14021) PRESSURE
26	T71051	1	TUBE	-
27	AU42452	1	ADAPTER FITTING	UNION, 90°

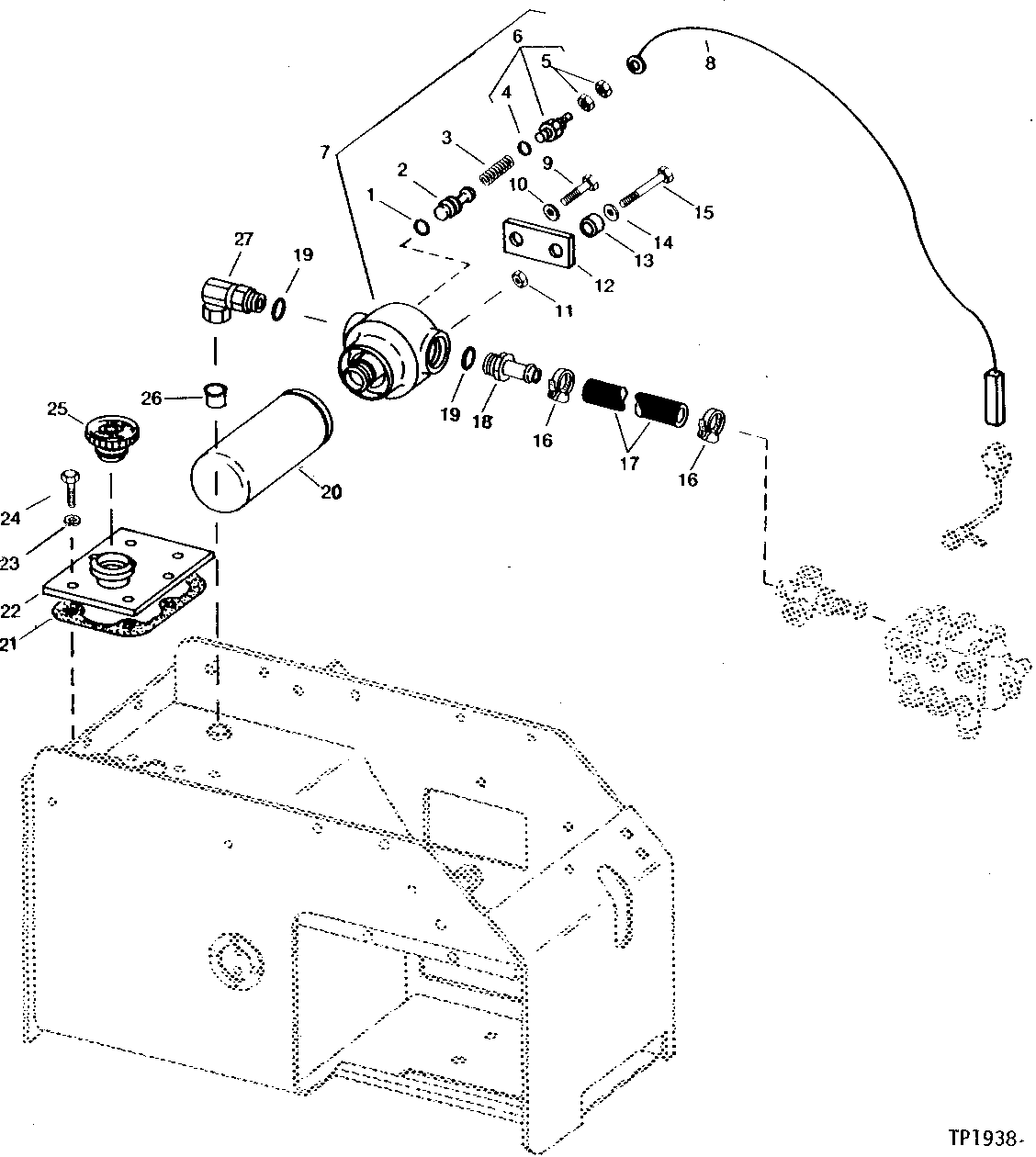

HYDRAULIC RETURN FILTER AND LINES (SERIAL NO. 354075- ) [02D11]
