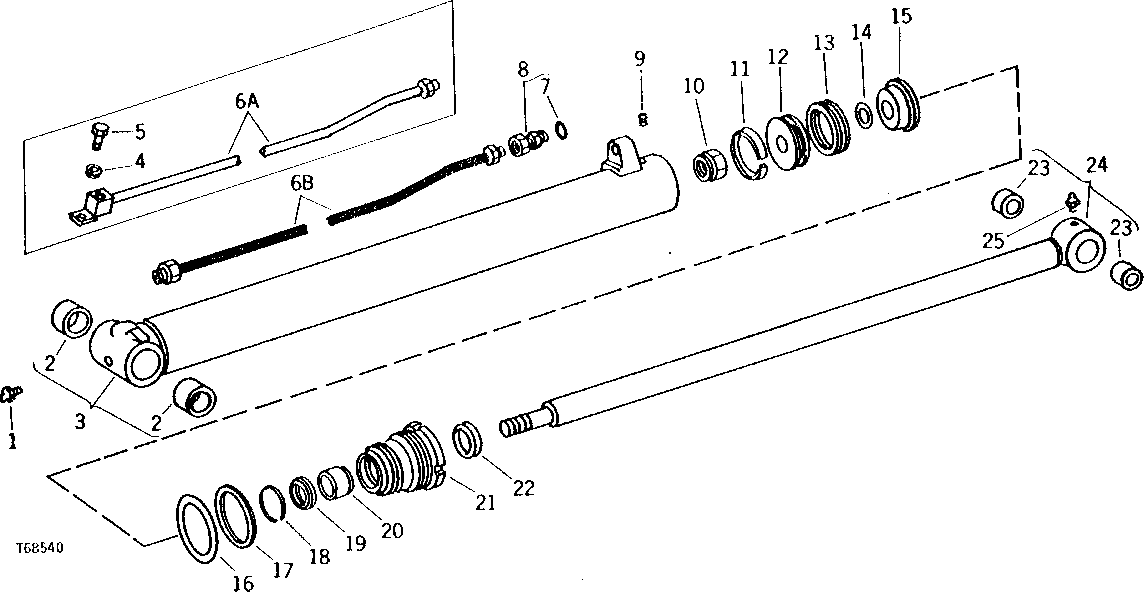

CROWD CYLINDER (9250 BACKHOE) [02G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7788	1	Lubrication Fitting	45°, 1/4"
2	U10666	2	BUSHING	-
3	AT45785	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AU42130) (ALSO ORDER AU10810)
4	12H304	1	Lock Washer	3/8"
5	19H1648	1	Cap Screw	3/8" X 3/4"
7	R26906	1	O-Ring	-
8	AU11753	1	UNION FITTING	-
9	22H1077	1	SET SCREW	1/4" X 5/16"
10	L2235CU	1	LOCK NUT	-
11	U43261	1	WEAR RING	(A)
12	U43260	1	PISTON	-
13	T38193	1	PACKING	(A) (SUB FOR R72827)
14	R29463	1	O-Ring	(A)
15	U17219	1	PISTON	-
16	U10776	1	O-Ring	(A)
17	R78993	1	BACK-UP RING	(A) (SUB FOR U10777, THIS APPLICATION)
18	U14128	1	SNAP RING	-
19	R76802	1	SEAL	(A) (SUB FOR T36998)
20	U41823	1	WEAR RING	(A)
21	R80922	1	HYDR. CYLINDER ROD GUIDE	(ALSO ORDER U41823) (SUB FOR U43259 AND R69077)
22	U11019	1	SEAL	(A)
23	U40741	1	BUSHING	(SUB FOR U40150, THIS APPLICATION)
24	AU42132	1	HYDRAULIC CYLINDER ROD	-
25	JD7759	1	Lubrication Fitting	STRAIGHT, 1/8"
..	RE18755	1	HYDRAULIC CYLINDER KIT	(SUB FOR AT36830, AR96516 AND AR105413)
..	AT45784	1	HYDRAULIC CYLINDER	-
..	AU42129	1	CYLINDER	(LESS RETURN TUBE) (SUB AT45784 AND AU10810)
6A	AU42219	1	TUBE	RETURN, (SUB AU10861)
6B	AU10861	1	HYDRAULIC HOSE - FABRICATE	864 MM LONG, (1/2" X 34")
6B	AU10810	1	HYDRAULIC HOSE - FABRICATE	775 MM LONG, (1/2" X 30-1/2")
