BACKHOE STANDARD BUCKETS (WITH CURVED PIVOT PLATES) (9300 BACKHOE) [02H09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T38870	1	CUTTING EDGE	(USE WITH AT37725) 13 MM X 127 MM X 762 MM (1/2" X 5" X 30") (FOR 914 MM (36") BUCKET)
1	T38857	1	CUTTING EDGE	SIDE, R.H. 13 MM 127 MM X 876 MM (1/2" X 5" X 34-1/2") (USE WITH AT37722, AT37723 AND AT37724) 457 MM (18"), 610 MM (24") AND 762 MM (30") BUCKETS)
2	T38862	1	CUTTING EDGE	22 MM X 152 MM X 578 (.86" X 5.98" X 22.75")
2	T38865	1	CUTTING EDGE	(USE WITH AT37724) 22 MM X 152 MM X 730 MM (.86" X 5.98" X 28.74") (FOR 762 MM (30") BUCKET)
2	T38869	1	CUTTING EDGE	(USE WITH AT37725) 22 MM X 152 MM X 882 MM (.86" X 5.98" X 34.72") (FOR 914 MM (36") BUCKET)
2	T38856	1	CUTTING EDGE	22 MM X 152 MM X 426 MM (7/8" X 6" X 16-3/4") (FOR 457 MM (18") BUCKET) (USED WITH AT37722 (FOR 610 MM (24") BUCKET) (USE WITH AT37722) (USE WITH AT37723)
3	U43792	1	Bucket Tooth Adapter	(SUB FOR (AR) U42750) (4 USED WITH 24 MM (.94") AT37722 AND AT37723, 5 USED WITH AT37724, 6 USED WITH AT37725)
4	U42751	1	POINT	(4 USED WITH 457 MM (18") AND 610 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKET, 6 USED WITH 9014 M (36") BUCKET) (4 USED WITH AT37722 AND AT37723, 5 USED WITH AT37724, 6 USED WITH AT37725)
4	T230SP	1	Tooth	(FORGED) (4 USED WITH 457 MM (18") AND 610 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKET, 6 USED WITH 9014 M (36") BUCKET) (4 USED WITH AT37722 AND AT37723, 5 USED WITH AT37724, 6 USED WITH AT37725) (SUB FOR T54317)
5	T38858	1	CUTTING EDGE	(USE WITH AT37722, AT37723 AND AT37724) SIDE, L.H. 13 MM X 127 MM X 876 MM (1/2" X 5" X 34-1/2") (FOR 457 MM X 610 MM AND 762 MM (18" X 25" AND 30") BUCKETS)
5	T38871	1	CUTTING EDGE	SIDE, L.H., 13 MM X 127 MM X 762 MM (18" X 5" X 30") (FOR 914 MM (36") BUCKET (USE WITH AT37725)
6	-	1	Part 12	457 MM (18") (USE AT37722 IF AVAILABLE) (SYB AT114260)
6	-	1	Part 15	914 MM (36") (USE AT37725 IF AVAILABLE) (SUB AT114256)
6	-	1	Part 14	762 MM (30") (USE AT37724 IF AVAILABLE) (SUB AT114262)
6	-	1	Part 13	610 MM (24") (USE AT37723 IF AVAILABLE) (SUB AT115257)
7	-	1	Part 16	(SUB AT36086)
8	T105987	2	BUSHING	PIVOT PLATE, (SUB FOR U42736)
9	T105988	4	Bushing	PIVOT PLATE, (SUB FOR U42739)
10	28H2240	1	BUSHING	BUCKET LINKAGE, 1-1/2" X 7"
11	U11650	2	WASHER	-
11	U11650	2	WASHER	-
12	11H221	4	COTTER PIN	3/8" X 2-1/2"
12	11H221	4	COTTER PIN	3/8" X 2-1/2"
14	-	1	Part 28	(SUB AT36086)
15	U11649	2	WASHER	BACKUP
15	U11649	2	WASHER	BACKUP
17	T40910	1	PIN	FLEX (4 USED) WITH 457 MM (18") AND 610 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKET, 6 USED WITH 914 MM (36") BUCKET) (SUB FOR U13927)
18	-	1	Part 36	(4 USED WITH AT37722 AND AT37723, 5 USED WITH AT37724, 6 USED WITH AT37725) (USE WITH 22 MM (7/8" CUTTING EDGE) ( AU41838 - NO LONGER AVAILABLE) (SUB T40910, U43792 AND U42751)
19	AT36086	1	PLATE	BACK
20	T59452	2	SNAP RING	-
21	T59445	2	SNAP RING	-
13A	AU42333	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) BUCKET TO DIPPERSTICK
13B	T59450	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) BUCKET TO DIPPERSTICK
13C	T125926	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
13C	AU42333	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) BUCKET TO DIPPERSTICK
16A	AU42334	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931) COUPLER LINKS TO BUCKET
16B	T59451	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931) COUPLER LINKS TO BUCKET
16C	AU42334	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931) COUPLER LINK TO BUCKET
16C	T125931	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)

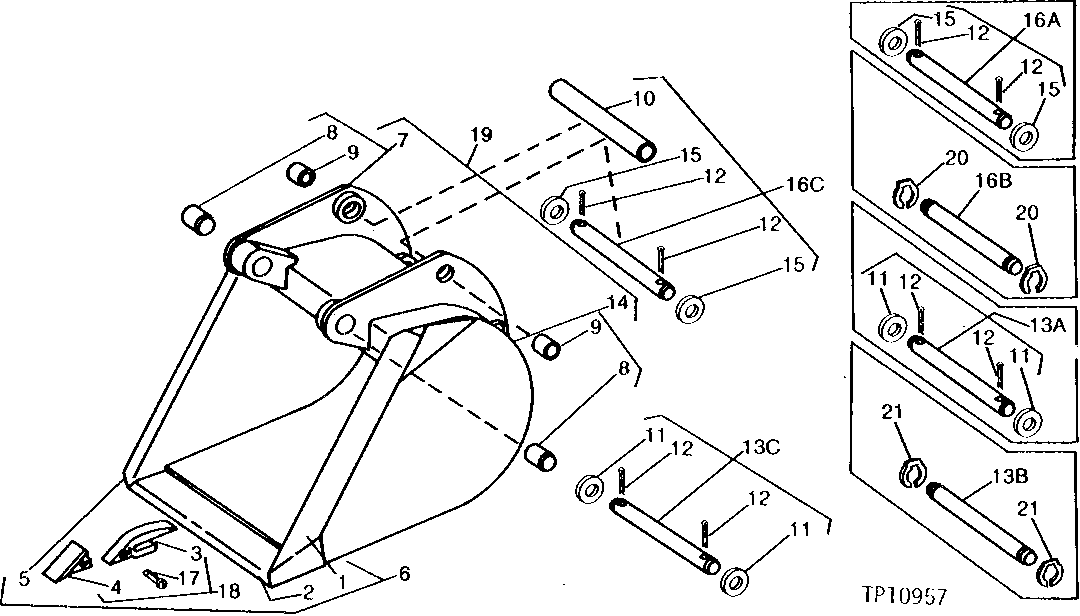

BACKHOE STANDARD BUCKETS (WITH CURVED PIVOT PLATES) (9300 BACKHOE) [02H09]
