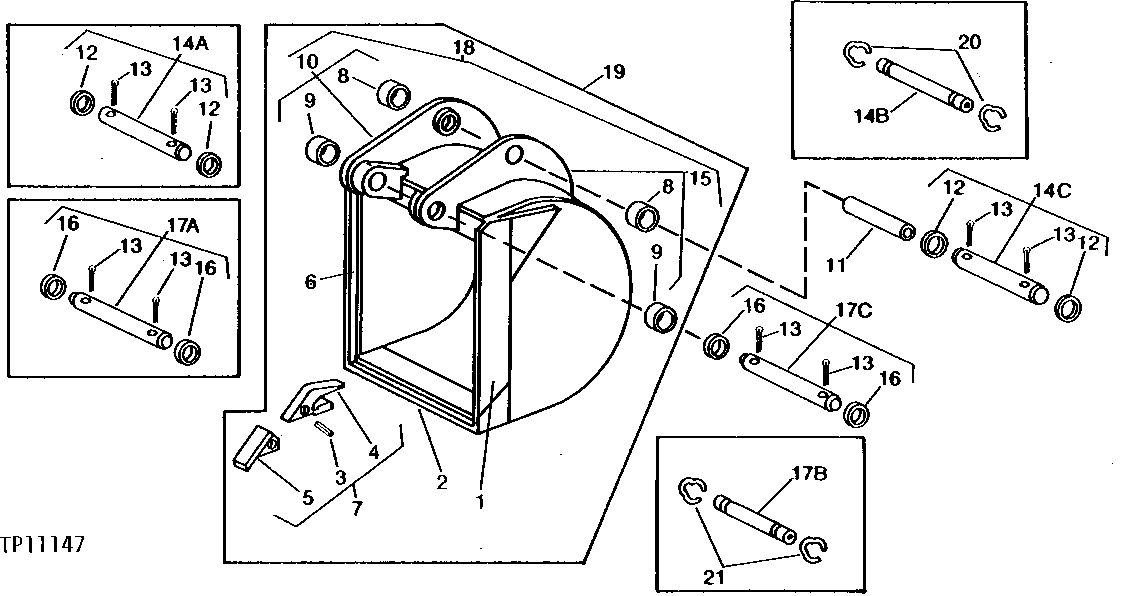

BACKHOE HEAVY-DUTY BUCKETS (WITH CURVED PIVOT PLATES) (9300 BACKHOE) [02H01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T38876	1	CUTTING EDGE	SIDE, L.H., 16 MM X 127 MM X 876 MM (5/8" X 5" X 34-1/2")
2	T38856	1	CUTTING EDGE	22 MM X 152 MM X 426 MM (7/8" X 6" X 16-3/4") (USE WITH AT37726 AND AT76972) (FOR 457 MM (18") BUCKET)
2	T38865	1	CUTTING EDGE	FRONT, 22 MM X 152 MM X 730 MM (7/8" X 6" X 3/4") (FOR 762 MM (30") (USE WITH AT37728 AND AT76969)
2	T38862	1	CUTTING EDGE	FRONT 22 MM X 152 MM X 578 MM (7/8" X 6" X 22-3/4") (FOR 610 MM (24") BUCKET) (USE WITH AT37727 AND AT76971)
3	T40910	1	PIN	FLEX, (SUB FOR U13927) 4 USED WITH AT37726 AND AT37727, 5 USED WITH AT37728
4	U43792	1	Bucket Tooth Adapter	(SUB FOR (AR) U42750) TOOTH 24 MM (15/16" 4 USED WITH AT37726 AND AT37727, 5 USED WITH AT37728
5	U42751	1	POINT	4 USED WITH AT37726 AND AT37727, 5 USED WITH AT37728
5	T56524	1	POINT	STARPOINT, 4 USED WITH 457 MM (18") AND 610 MM (24") BUCKETS, 5 USED WITH 762 MM (30") BUCKETS
6	T38875	1	CUTTING EDGE	SIDE, R.H., 16 MM X 127 MM X 876 MM (5/8" X 5" X 34-1/2") (USE WITH AT37726, AT37727, AT37728, AT76972, AT76971 AND AT76969)
7	-	1	Part 10	24 MM (15/16") 4 USED WITH AT37726 AND AT37727, 5 USED WITH AT37728 (USE WITH 22 MM (7/8") CUTTING EDGE) ( AU41838 - NO LONGER AVAILABLE) (SUB T40910, U43792 AND U42751)
8	T105988	1	Bushing	PIVOT PLATE, (SUB FOR U42739)
9	T105987	2	BUSHING	PIVOT PLATE, (SUB FOR U42736)
10	AU41835	4	PLATE	BACK, (SUB AT36086)
11	28H2196	1	SPACER	BUCKET LINKAGE, 1-1/2" X 6"
12	U11649	2	WASHER	BACKUP
12	U11649	2	WASHER	BACKUP
13	11H221	4	COTTER PIN	3/8" X 2-1/2"
13	11H221	4	COTTER PIN	3/8" X 2-1/2"
15	AU41834	1	PLATE	(SUB AT36086)
16	U11650	2	WASHER	BACKUP
16	U11650	2	WASHER	BACKUP
18	AT36086	1	PLATE	BACK
19	AT37728	1	BACKHOE BUCKET	762 MM (30") (SUB AT76969)
19	AT37727	1	BACKHOE BUCKET	610 MM (24") (SUB AT76971)
19	AT37726	1	BACKHOE BUCKET	457 MM (18") (SUB AT76972)
20	T59452	2	SNAP RING	-
21	T59445	2	SNAP RING	-
14A	AU42334	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931) COUPLER LINKS TO BUCKET
14B	T59451	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931) CONTROL LINK TO BUCKET ASSEMBLY
14C	T125931	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
14C	AU42334	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931) COUPLER LINKS TO BUCKET
17A	AU42333	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) BUCKET TO DIPPERSTICK
17B	T59450	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) BUCKET TO DIPPERSTICK
17C	T125926	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
17C	AU42333	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) BUCKET TO DIPPERSTICK
