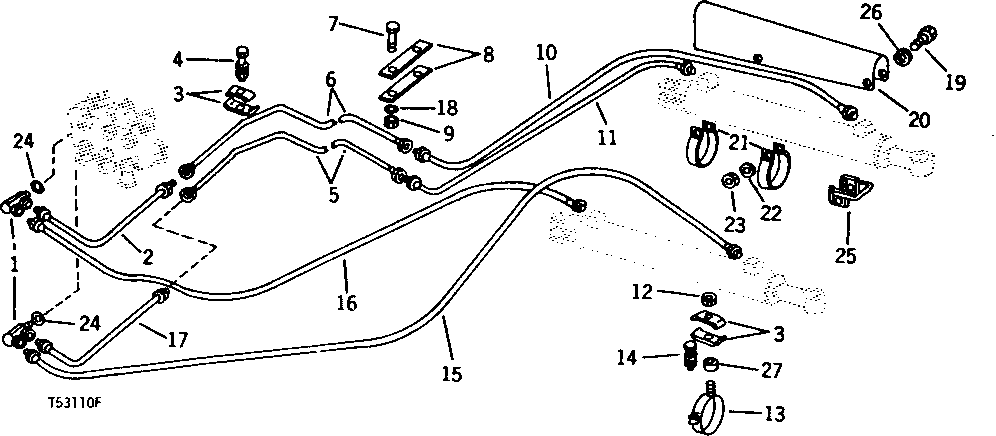

ANGLING CIRCUIT HYDRAULICS (6405 BULLDOZER) [02E19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT36525	2	ADAPTER	UNION, DOUBLE, 90°, 7/8" X 3/8"
2	AU13886	1	LINE	CONTROL VALVE TO CROSSOVER TUBE
3	U10516	4	Hose Clamp	(WITHOUT HOSE SHIELDS)
4	19H3031	1	Cap Screw	3/8" X 2-1/2"
4	12H304	1	Lock Washer	3/8"
4	14H812	1	NUT	3/8"
5	AU13889	1	OIL LINE	CROSSOVER
6	AU13885	1	OIL LINE	CROSSOVER
7	19H2735	2	Cap Screw	1/2" X 2"
8	U17145	2	STRAP	-
9	U12622	2	LOCK NUT	-
10	AU13878	1	HYDRAULIC HOSE - FABRICATE	3/8" X 2 235 MM (88") X 3/8"
11	AU13880	1	HYDRAULIC HOSE - FABRICATE	3/8" X 1 880 MM (74") X 3/8"
12	H129201	1	Lock Nut	(A) (SUB FOR T32552) (WITHOUT HOSE SHIELDS) 3/8"
13	AU13963	1	CLAMP	(WITHOUT HOSE SHIELDS)
14	14H812	1	NUT	3/8", (WITHOUT HOSE SHIELDS)
14	12H304	1	Lock Washer	3/8", (WITHOUT HOSE SHIELDS)
14	19H3065	1	Cap Screw	3/8" X 2", (WITHOUT HOSE SHIELDS)
15	AU13879	1	HYDRAULIC HOSE - FABRICATE	3/8" X 2 616 MM (103") X 3/8"
16	AU13881	1	HYDRAULIC HOSE - FABRICATE	3/8" X 2 286 MM (90") X 3/8"
17	AU13888	1	LINE	CONTROL VALVE TO CROSSOVER TUBE
18	24H1305	2	Washer	13/32" X 13/16" X 0.065"
19	19H3445	3	Cap Screw	(A) 3/8" X 3-3/4"
19	19H1925	3	Cap Screw	(A) 3/8" X 4-1/4", (WITH HOSE CLAMP SUPPORT)
20	T106947	2	SHIELD	(A) (SUB FOR T37238)
21	T37239	4	CLAMP	(A)
22	24H1308	4	Washer	13/32" X 1" X 0.134"
23	H129201	4	Lock Nut	(SUB FOR T32552)
24	R26906	2	O-Ring	-
25	AT37220	1	HOSE CLAMP	(A) HOSE SUPPORT
26	24H1305	2	Washer	13/32" X 13/16" X 0.065"
27	28H2481	1	Spacer	3/8" X 1/2"
..	-	1	Part 33	( AT36070 - NO LONGER AVAILABLE)
