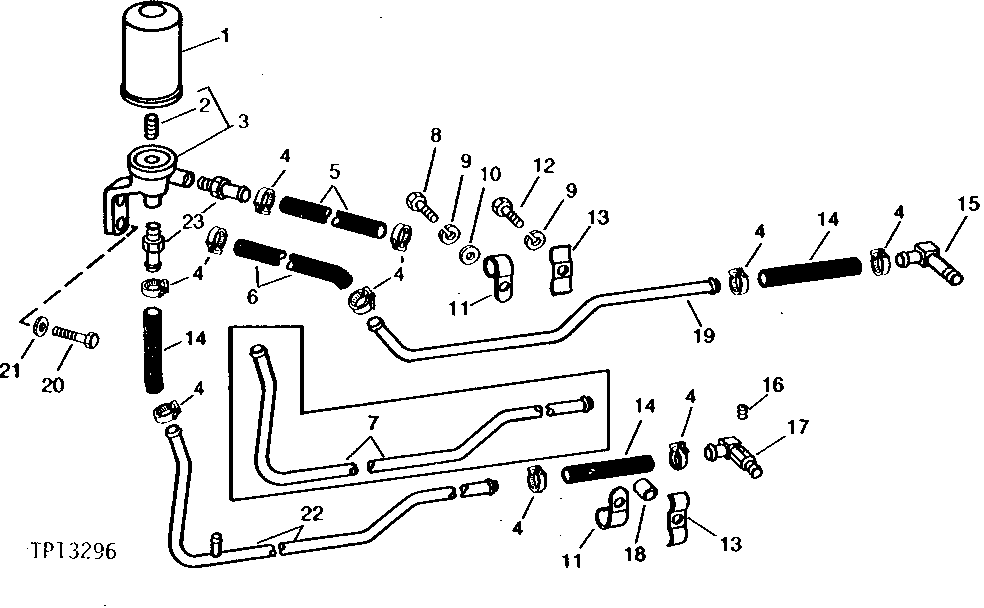

TRANSMISSION OIL COOLER LINES AND FILTER [E14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T19044	1	Oil Filter	-
2	T19042	1	INSERT	-
3	AT18912	1	BASE	(MARKED T21376) (SUB T81164, (2) R39503 AND T19042)
4	AR21839	10	Clamp	(SUB FOR H2742B, THIS APPLICATION)
5	-	1	Part 5	(MAKE FROM T61939 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T33414) COOLER TO FILTER BASE
6	-	1	Part 6	(MAKE FROM T61939 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T31684 AND T37111) COOLER INLET, LINE TO COOLER
7	T34470	1	TUBE	(BOTTOM OF OIL FILTER BASE)
8	19H118	1	CAP SCREW	5/16" X 1"
9	12H303	2	Lock Washer	5/16"
10	24H1685	1	Washer	11/32" X 47/64" X 0.083"
11	T24959	2	Clamp	-
12	19H1849	1	Cap Screw	5/16" X 1-1/4"
13	T21367	2	Clamp	-
14	-	3	Part 14	(MAKE FROM T61939, BULK MATERIAL, CUT TO LENGTH) (SUB FOR T21371)
15	AT18905	1	HOSE FITTING	-
16	15H558	1	Pipe Plug	1/8"
17	AT18906	1	HOSE FITTING	RETURN LINE
17	AT36673	1	HOSE FITTING	-
18	28H1514	1	SPACER	1/4" X 9/16"
19	T34469	1	TUBE	COOLER INLET (BOTTOM OF OIL COOLER)
20	19H3239	2	Cap Screw	3/8" X 1-1/4"
21	12H304	2	Lock Washer	3/8"
22	AT36674	1	LINE	COOLER RETURN (BOTTOM OF OIL FILTER BASE)
23	R39503	2	Fitting	-
