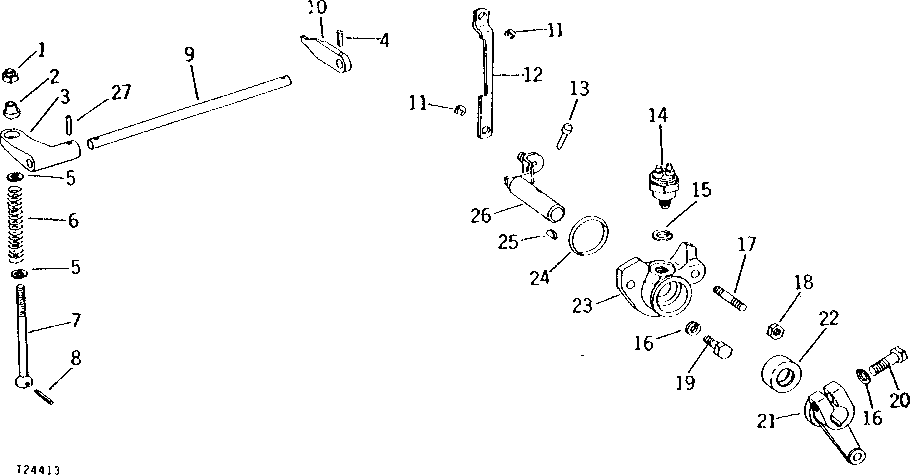

TRANSMISSION CLUTCH AND SHIFT LINKAGE [E07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T16464	1	Lock Nut	-
2	T20816	1	SPACER	-
3	T33299	1	ARM	-
4	34H280	1	Spring Pin	3/16" X 7/8"
5	24H1307	1	Washer	13/32" X 1" X 1/16"
6	T20815	1	SPRING	-
7	T20814	1	LINK	-
8	34H252	1	SPRING PIN	1/8" X 1-1/4"
9	T33300	1	PIN FASTENER	-
10	T33298	1	LEVER	-
11	R72653	2	Snap Ring	(SUB FOR M2396T)
12	T19932	1	LINK	-
13	T16910	1	PIN FASTENER	-
13	T35703	1	PIN FASTENER	(A)
14	AT14407	1	SWITCH	-
15	T35704	1	SHIM	(A) 0.25 MM (.010")
15	T16911	1	SHIM	.38 MM (.015") (SUB T35704)
16	24H1304	2	WASHER	(A) 13/32" X 23/32" X 0.120"
17	-	1	Part 19	(T17260 NO LONGER AVAILABLE) 3/8" X 1-3/16"
17	T35705	1	STUD	(A)
18	14H812	1	NUT	3/8"
19	19H2284	1	Cap Screw	3/8" X 7/8"
19	19H2549	1	Cap Screw	(A) 3/8" X 1-7/8"
20	19H2633	1	Cap Screw	3/8" X 1-1/2"
21	T20818	1	LEVER	-
22	T23902	1	SEAL	-
23	T23903	1	SUPPORT	(SUB AT34681, WHICH CONSISTS OF PARTS IDENTIFIED BY (A)
23	T123289	1	SUPPORT	(A)
23	15H558	1	Pipe Plug	1/8"
24	R26773	1	O-Ring	(SUB FOR T35702) (ALSO ORDER 15H558)
25	26H77	1	Shaft Key	3/16" X 3/4"
26	AT22768	1	ARM	-
27	25H72	1	GROOVE PIN	3/16" X 1"
