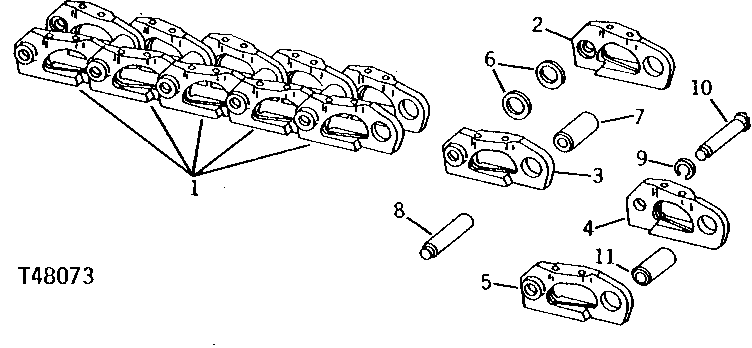

TRACK CHAIN (WITH HEADED MASTER PIN) [I11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT41741	1	LINK CHAIN	(SUB FOR AT30723) (LOADER) (SUB AT56691 CHAIN ASSEMBLY WITH HEADLESS MASTER PIN)
1	AT41740	1	LINK CHAIN	(SUB FOR AT30712) (SUB AT113052, T74185, (2) T105131 AND (4) T105117) (DOZER)
2	T31637AM	1	NON-STRUTTED LINK-RH	(SUB FOR T31637) (35 PER DOZER TRACK AND 36 PER LOADER TRACK)
3	T31638AM	1	NON-STRUTTED LINK-RH	(SUB FOR T31638) (35 PER DOZER TRACK AND 36 PER LOADER TRACK)
4	T20606	1	MASTER LINK-RH	RIGHT
5	T20607	1	NON-STRUTTED LINK-LH	LEFT
6	R36521	2	WASHER	(USED FOR LINK OR BUSHING REPLACEMENT IN CENTER OF TRACK CHAIN)
7	T32073	1	BUSHING	(35 PER DOZER TRACK AND 36 PER LOADER TRACK)
8	T23888	1	TRACK PIN	(35 PER DOZER TRACK AND 36 PER LOADER TRACK)
9	B1402R	1	SNAP RING	(SUB FOR F215R)
10	T20600	1	MASTER TRACK PIN	MASTER
11	T23889	1	MASTER TRACK BUSHING	(ONE USED WITH MASTER LINK OR ONE USED FOR LINK OR BUSHING REPLACEMENT IN CENTER OF TRACK CHAIN)
..	AT37314	1	RUBBER TRACK BELT	WITH 330 MM (13") RUBBER SHOES (36 SHOES) (WITH DOZER) (SUB AT57225 TRACK AND T153045 OR T175962 SPROCKET) (SUB FOR AT45091)
..	AT37315	1	RUBBER TRACK BELT	WITH 406 MM (16") GROUSER SHOES (36 SHOES) (WITH DOZER) (SUB AT57228 TRACK AND T153045 OR T175962 SPROCKET) (SUB FOR AT45093)
..	AT37316	1	RUBBER TRACK BELT	WITH 406 MM (16") OPEN CENTER TRIPLE SEMI- GROUSER SHOES (36 SHOES) (WITH DOZER) (SUB AT57226 TRACK AND T153045 OR T175962 SPROCKET) (SUB FOR AT45092)
..	AT37317	1	RUBBER TRACK BELT	WITH 406 MM (16") OPEN CENTER FULL GROUSER SHOES (36 SHOES) (WITH DOZER) (SUB AT57229 TRACK AND T153045 OR T175962 SPROCKET) (SUB FOR AT45094)
..	AT37318	1	RUBBER TRACK BELT	WITH 457 MM (18") SHOES (36 SHOES) (WITH DOZER) (SUB AT57230 TRACK AND T153045 OR T175962 SPROCKET) (SUB FOR AT45095)
..	AT37319	1	RUBBER TRACK BELT	WITH 457 MM (18") OPEN CENTER FULL GROUSER SHOES (36 SHOES) (WITH DOZER) (SUB AT57231 TRACK AND T153045 OR T175962 SPROCKET) (SUB FOR AT45096)
..	AT37320	1	RUBBER TRACK BELT	330 MM (13") RUBBER SHOES (37 SHOES) (WITH LOADER) (SUB AT57232 TRACK AND T153045 OR T175962 SPROCKET) (SUB FOR AT45097)
..	AT37321	1	RUBBER TRACK BELT	WITH 356 MM (14") OPEN CENTER TRIPLE SEMI- GROUSER SHOES (37 SHOES) (WITH LOADER) (SUB AT57233 TRACK AND T153045 OR T175962 SPROCKET) (SUB FOR AT45098)
