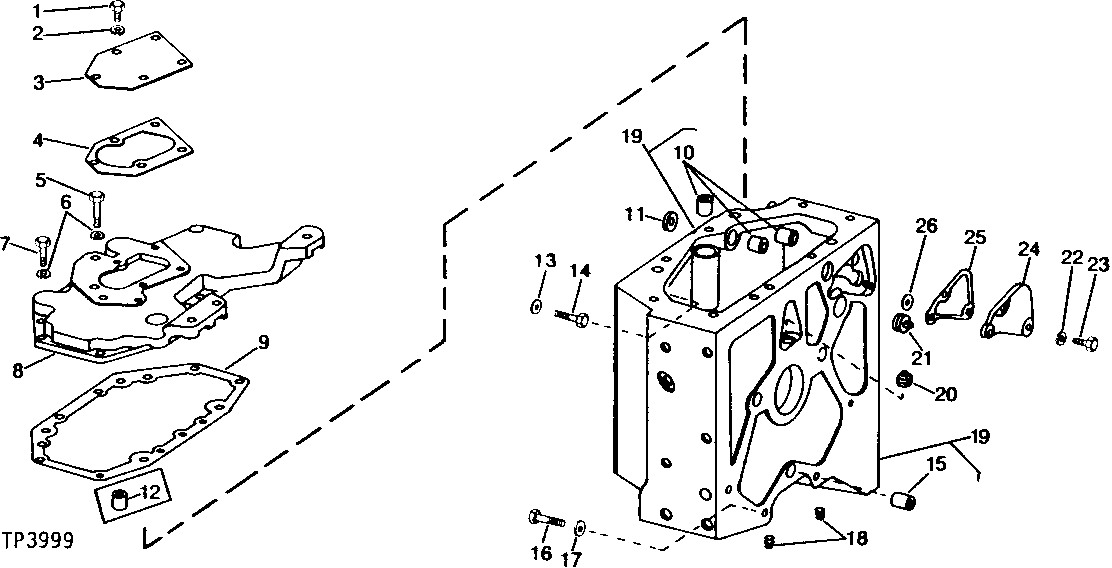

STEERING CLUTCH HOUSING ASSEMBLY [F19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	5	Cap Screw	3/8" X 3/4"
2	12H304	5	Lock Washer	3/8"
3	T20739	1	COVER	TOP
4	T20738	1	GASKET	-
5	19H1930	1	Cap Screw	1/2" X 2-1/2"
6	12H301	7	Lock Washer	1/2"
7	19H2993	6	Cap Screw	1/2" X 1-1/2"
8	T20736	1	COVER	RIGHT (DOWEL PINS NOT REQUIRED)
8	T20737	1	COVER	LEFT
9	T20735	1	GASKET	(SUB AT26340)
10	T14368	6	BUSHING	-
11	AA5607R	2	Seal	-
12	T18621	4	DOWEL PIN	(NOT REQUIRED WHEN AT18412, AT18423, T20736 OR T20737 HAS BEEN INSTALLED AS A REPLACEMENT PART)
13	T10510	1	Washer	(4 USED RIGHT SIDE, 5 USED LEFT SIDE) (USE IF AVAILABLE)
13	R78019	1	Washer	(SUB FOR T10510)
14	19H2431	1	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782) (4 USED RIGHT SIDE, 5 USED LEFT SIDE)
15	T14385	3	BUSHING	-
16	19H3244	2	Cap Screw	5/8" X 2-1/4"
17	T497T	2	WASHER	-
18	15H561	2	Pipe Plug	1/2"
19	AT18412	1	HOUSING	RIGHT, (MARKED T20706)
19	-	1	Part 22	LEFT, (AT18423 NO LONGER AVAILABLE) (MARKED T20707)
20	15H562	1	Pipe Plug	1"
21	15H280	1	Pipe Plug	1-1/4"
22	12H304	3	Lock Washer	3/8"
23	19H2676	3	Cap Screw	3/8" X 1"
24	T21349	1	COVER	RIGHT
24	-	1	Part 28	(T21350 NO LONGER AVAILABLE) LEFT
25	T21348	1	GASKET	-
26	30H21	1	PLUG	1-1/2"
..	T43514	1	Gasket	(50 CC.) (SUB FOR AT26340)

STEERING CLUTCH HOUSING ASSEMBLY [F19]
