Открытый узел

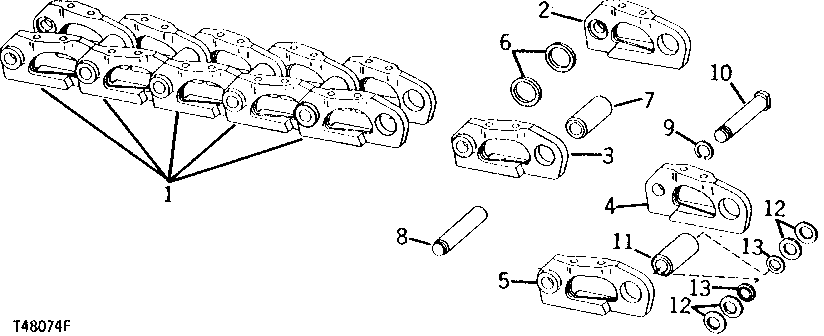

REPLACEMENT TRACK CHAIN (COUNTERBORE WITH HEADED MASTER PIN) [I12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT41740	1	LINK CHAIN	(SUB AT113052, T74185, (2) T105131 AND (4) T105117) (DOZER)
1	AT41741	1	LINK CHAIN	(LOADER) (SUB AT56691 CHAIN ASSEMBLY WITH HEADLESS MASTER PIN)
2	T42832	1	NON-STRUTTED LINK-RH	(35 PER DOZER TRACK AND 36 PER LOADER TRACK)
3	T42827	1	NON-STRUTTED LINK-LH	(35 PER DOZER TRACK AND 36 PER LOADER TRACK)
4	T42831	1	MASTER TRACK LINK-RH	RIGHT
5	T42829	1	NON-STRUTTED LINK-LH	LEFT
6	T60841	2	WASHER	(USED FOR LINK OR BUSHING REPLACEMENT IN CENTER OF TRACK CHAIN) (SUB FOR T49874)
7	T52362	1	BUSHING	(35 PER DOZER TRACK AND 36 PER LOADER TRACK)
8	T42838	1	TRACK PIN	(35 PER DOZER TRACK AND 36 PER LOADER TRACK)
9	B1402R	1	SNAP RING	(SUB FOR F215R)
10	T55237	1	MASTER TRACK PIN	(HEADED)
10	-	1	Part 12	(HEADLESS) (SUB AT56694 MASTER PIN KIT)
11	T42837	1	MASTER TRACK BUSHING	(ONE USED WITH MASTER LINK OR ONE USED FOR LINK OR BUSHING REPLACEMENT IN CENTER OF TRACK CHAIN)
12	T42828	1	SPRING WASHER	(144 USED PER DOZER TRACK AND 148 USED PER LOADER TRACK)
13	T60841	2	WASHER	(WITH MASTER PIN AND BUSHING) (SUB FOR T49874)
..	AT45091	1	RUBBER TRACK BELT	WITH 330 MM (13") RUBBER SHOES (36 SHOES) (WITH DOZER) (SUB AT57225 TRACK AND T129880 SPROCKET)
..	AT45092	1	RUBBER TRACK BELT	WITH 406 MM (16") TRIPLE SEMI-GROUSER OPEN CENTER SHOES (36 SHOES) (WITH DOZER) (SUB AT57226 TRACK AND T129880 SPROCKET)
..	AT45093	1	RUBBER TRACK BELT	WITH 406 MM (16") GROUSER HARDENED SHOES (36 SHOES) (WITH DOZER) (SUB AT57228 TRACK AND T153045 OR T175962 SPROCKET)
..	AT45094	1	RUBBER TRACK BELT	WITH 406 MM (16") GROUSER OPEN CENTER HARDENED SHOES (36 SHOES) (WITH DOZER) (SUB AT57229 TRACK AND T153045 OR T175962 SPROCKET)

REPLACEMENT TRACK CHAIN (COUNTERBORE WITH HEADED MASTER PIN) [I12]

Нет текстового описания
